CM-1100 & 2000 Series Cast Aluminum Key Switches
INSTALLATION INSTRUCTIONS
| PACKAGE CONTENTS |
|---|
| (1) Heavy duty 1/4" thick aluminum faceplate |
| (2) Tamper proof screws and driver |
| (1) Color coded 18 AWG soldered leads |
| (1) Weatherproof gasket (CM-2200 Series only) |
Note: Mortise Cylinder Sold Separately
1. GENERAL DESCRIPTION
Camden key switches are designed to work with most 1", 1 1/8" or 1 1/4" mortise cylinders, and with different types of cams. One or two switches may be installed, either momentary and/or maintained (alternating on/off).
2. SPECIFICATIONS
(1) Lock ring
| Input Voltage | 12-24V AC/DC |
|---|---|
| Contact Rating |
6A @ 30VDC (Standard),
15A @ 30VDC (Optional) |
| Switch Life | 100,000 cycles |
| Temp Range | 32°F - 85°F (0°C to +85°C) |
| Standard Finish | Brushed aluminum |
| Dimensions |
CM-1100:
2 3/4" W x 4 1/2" H x 1.5" D (70mm x 114mm x 38mm) CM-2000: |
|
1 3/4" W x 4 1/2" H x 1.5" D
(44mm x 114mm x 38mm) |
3. INSTALLATION

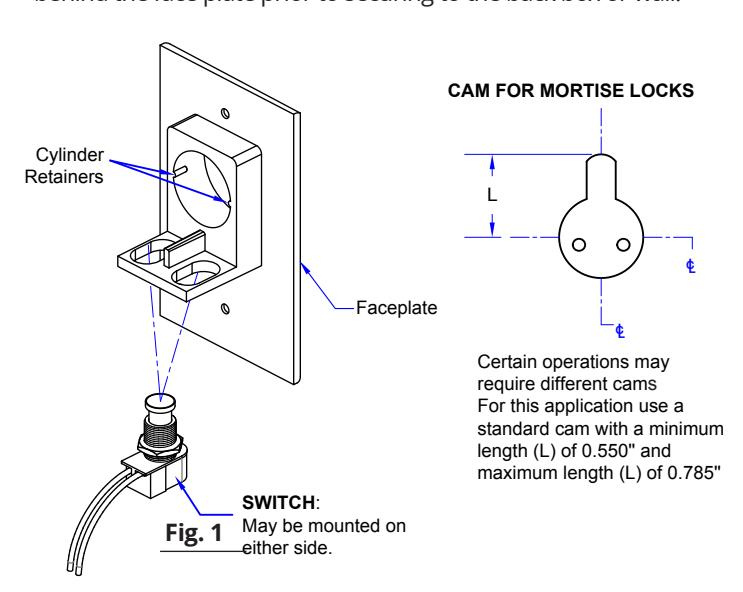

- 1. The switch (es) provided may be mounted in either the left or the right hole on the back of the faceplate. Thread the octagonal nut (spacer ring) on to the bushing (stem) of the switch before placing the switch in the hole.
- 2. Insert the switch up through the bottom of the desired hole. Secure the switch in place by screwing the round threaded washer onto the top of the switch.
- 3. Fit the mortise cylinder through the front of the face plate being sure to align the grooves on the sides of the cylinder with the corresponding "retainers" on the back of the face plate.
- 4. Push firmly on the cylinder, until it snaps into place, lying flush in the front of the face plate (aluminum models only). Note that some cylinders may appear not to fit in the face plate. If the grooves on the side of the cylinder are irregular and do not align with the retainers on the back of the faceplate, use a metal file to file down the retainers slightly.
Note – do not file the retainers off completely as they prevent the cylinder from spinning in the face plate.
- 5. Thread the brass cylinder lock ring onto the back of the cylinder, and tighten in place.
- 6. Turn the key in the cylinder, and ensure the cam hits the top of the switch squarely in the center. Adjust the switch in the slotted hole until the cam hits in the center. It does not affect operation of the cam if the cylinder rests against the switch, so long as the switch is not fully depressed until activated by a turn of the key. If the cam does not depress the switch, or blocks the switch from resetting, raise or lower the octagon nut located under the switch, as needed. Extra spacers are provided and may be used as required.
- 7. Once the electrical connections are completed (see fig 2), attach the unit to the switch box, wall, or receptacle box using the supplied tamperproof or stainless steel Phillips screws. For outdoor use, place the rubber weather proofing gasket behind the face plate prior to securing to the back box or wall.
4. WIRING
| WIRING LAYOUT & COLOR CODING | ||||||||
|---|---|---|---|---|---|---|---|---|
|
SWITCH
TYPE |
1
SPST MOMENTARY |
2
SPST MAINTAINED |
3
SPDT MOMENTARY |
4
SPDT MAINTAINED |
5
DPDT MOMENTARY |
6
DPDT MAINTAINED |
||
| N.O. or N.C. | N.O. or N.C. | |||||||
| COMMON | BLACK | BLACK | GREY | GREY | GREY (X2) | GREY (X2) | ||
|
NORMALLY
OPEN |
BLACK | BLACK | BLUE | ORANGE | BLUE (X2) | ORANGE (X2) | ||
|
NORMALLY
CLOSED |
BLACK | BLACK | ORANGE | ORANGE | ORANGE (X2) | ORANGE (X2) | ||
Momentary: When the switch is pressed the current pole will change to the opposite state until released.
Maintained: When the switch is pressed it will provide the opposite pole until the button is pressed again
Momentary: When the switch is pressed it will provide a change of state on the N.O. & N.C. poles until released
Momentary: When the switch is pressed it will provide a change of state on both of the N.O. & N.C. poles until released
Maintained: When the switch is pressed it will provide a change of state on both of the N.O. & N.C. poles until pressed again
Fig. 2
5. OPTIONAL WIRING

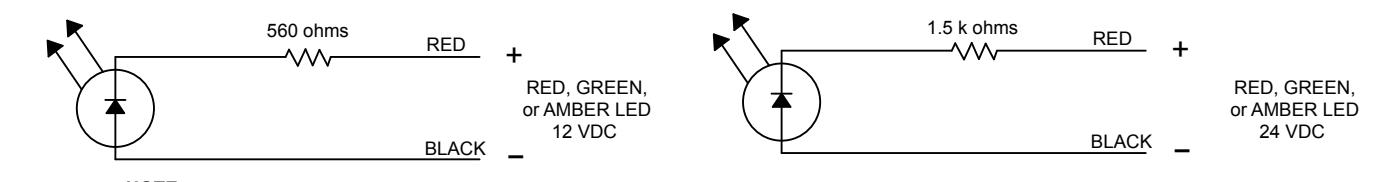

Key Switches may be ordered with optional LED's. These drawings show the various wiring configurations of the LED's.

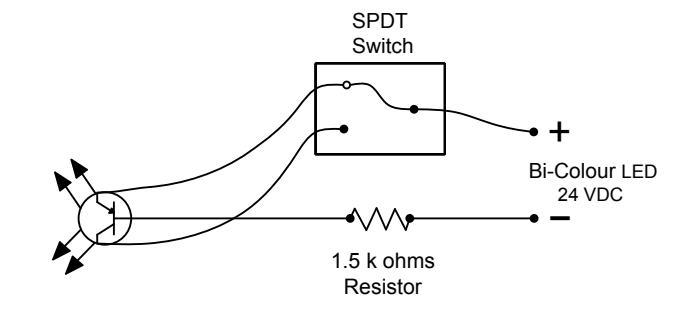

SPDT Switch H Bi-Colour LED 12 VDC 560 ohms Resistor Fig. 3
These LEDs are designed for DC Voltage only.

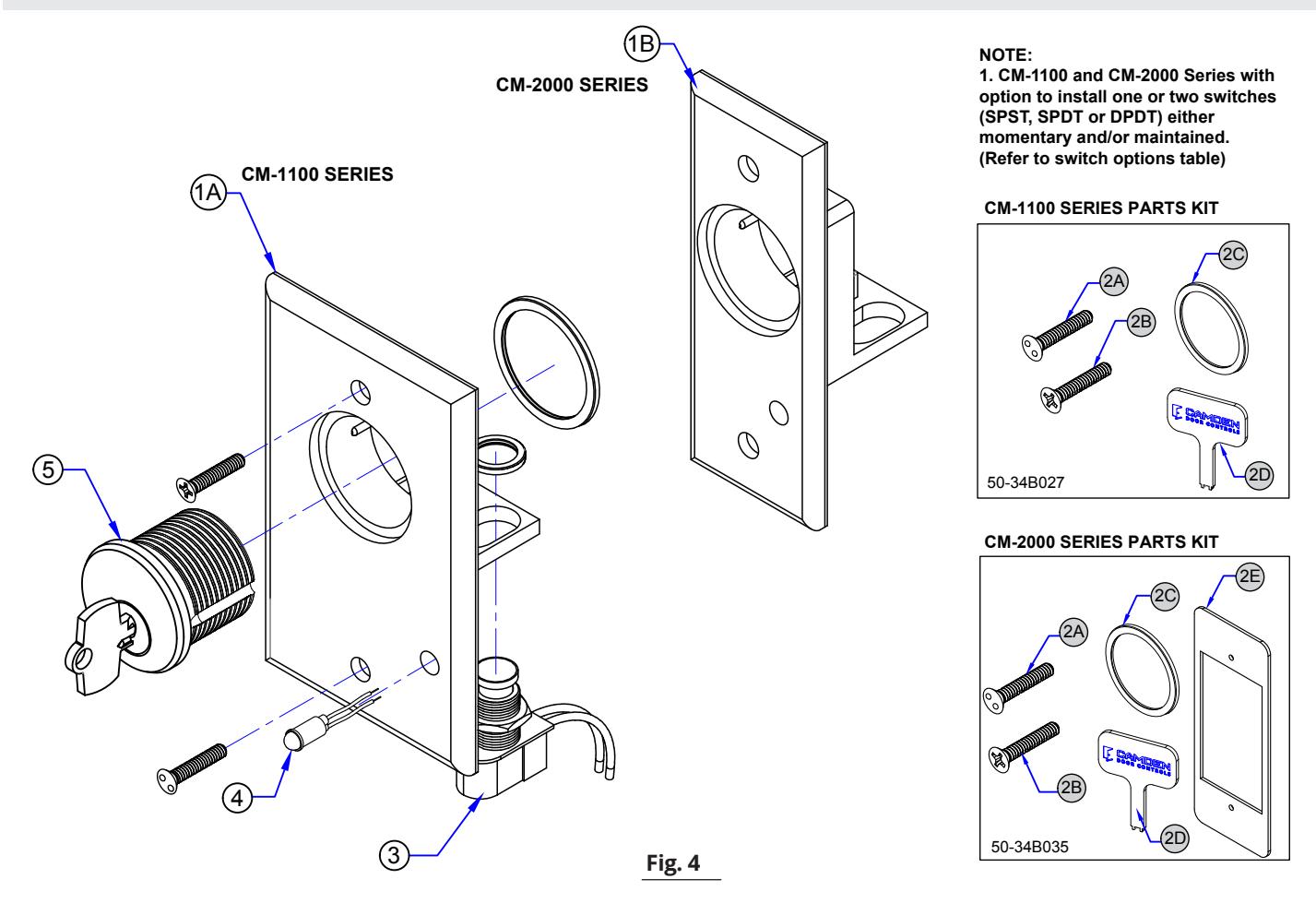

6. ORDERING INFORMATION FOR REPLACEMENT PARTS
|
ITEM
NUMBER |
PART NUMBER
DESCRIPTION |
|||||
|---|---|---|---|---|---|---|
| A. CM-1100 SERIES | DIE-CAST ALUMINUM (SINGLE GANG) FACE PLATE | |||||
| 60-41A001 | FOR FLUSH MOUNT KEY SWITCHES | |||||
| 1 | B. CM-2000 SERIES | DIE-CAST ALUMINUM (MULLION) FACE PLATE | ||||
| 60-41A002 | FOR FLUSH MOUNT KEY SWITCHES | |||||
| PARTS KIT | |||||
|---|---|---|---|---|---|
|
ITEM
NUMBER |
PART NUMBER | DESCRIPTION | |||
| CM-1100 SERIES | (A) 6-32 X 3/4 SNAKE EYE TAMPER PROOF SCREWS (SNAKE EYE) | ||||
| 60-34B027 | (B) 6-32 X 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREWS | ||||
| (C) CYLINDER LOCK RING | |||||
| (D) KEY FOR TAMPER PROOF SCREWS (SNAKE EYE) | |||||
| 2 | CM-2000 SERIES | (A) 6-32 X 3/4 SNAKE EYE TAMPER PROOF SCREWS (SNAKE EYE) | |||
| 60-34B035 | (B) 6-32 X 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREWS | ||||
| (C) CYLINDER LOCK RING | |||||
| (D) KEY FOR TAMPER PROOF SCREWS (SNAKE EYE) | |||||
| (E) MULLION NEOPRENE GASKET | |||||
| SWITCH OPTIONS | ||||||
|---|---|---|---|---|---|---|
| ITEM | MODEL | NUMBER | QTY |
PART
NUMBER |
||
| NUMBER |
SINGLE
GANG |
MULLION | DESCRIPTION | |||
| CM-1100 | CM-2000 | 1 | 60-68D046 | SPST MOMENTARY CONTACT SWITCH, N/O 6A @125V AC, 3A@ 30V DC | ||
| CM-1105 | CM-2005 | 1 | 60-68D048 | SPST MOMENTARY CONTACT SWITCH, N/C 6A @125V AC, 3A@ 30V DC | ||
| CM-1110 | CM-2010 | 1 | 60-68D049 | SPST MAINTAINED CONTACT SWITCH, ON/OFF 6A @125V AC, 3A@ 30V DC | ||
| CM-1120 | CM-2020 | 1 | 60-68D052 | SPDT MOMENTARY CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||
| CM-1130 | CM-2030 | 1 | 60-68D054 | SPDT MAINTAINED CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||
| CM-1150 | CM-2050 | 2 | 60-68D052 | SPDT MOMENTARY CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||
| CM-1160 | CM-2060 | 2 | 60-68D054 | SPDT MAINTAINED CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||
| CM-1170 CM-20 | 211.11.2 | 014.0070 | 1 | 60-68D052 | SPDT MOMENTARY CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | |
| CM-2070 | 1 | 60-68D054 | SPDT MAINTAINED CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | |||
| CM-1180 | CM-2080 | 1 | 60-68D053 | DPDT MOMENTARY CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||
| CM-1182 | CM-2082 | 2 | 60-68D053 | DPDT MOMENTARY CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||
| CM-1190 | CM-2090 | 1 | 60-68D055 | DPDT MAINTAINED CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||
| CM-1192 | CM-2092 | 2 | 60-68D055 | DPDT MAINTAINED CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||
| LE LED OPTI | ONS | DOUBLE LED OPTIONS | ||||||
|---|---|---|---|---|---|---|---|---|
|
ITEM
NUMBER |
MODEL NUMBER QTY PART DESCRIPTION | DESCRIPTION |
MODEL
NUMBER |
QTY |
PART
NUMBER |
DESCRIPTION | ||
| CM-XXXX-7012 | 1 | 60-73C008 | RED 12V LED | CM-XXXX-70122 | 2 | 60-73C008 | RED 12V LEDS | |
| CM-XXXX-7024 | 1 | 60-73C010 | RED 24V LED | CM-XXXX-70242 | 2 | 60-73C010 | RED 24V LEDS | |
| CM-XXXX-7112 | 1 | 60-73C009 | GREEN 12V LED | CM-XXXX-71122 | 2 | 60-73C009 | GREEN 12V LEDS | |
| CM-XXXX-7124 | 1 | 60-73C011 | GREEN 24V LED | CM-XXXX-71242 | 2 | 60-73C011 | GREEN 24V LEDS | |
| CM-XXXX-7212 | 1 | 60-73C009 | GREEN 12V LED | CM-XXXX-72122 | 2 | 60-73C009 | GREEN 12V LEDS | |
| 1 | 60-73C008 | RED 12V LED | 2 | 60-73C008 | RED 12V LEDS | |||
| 4 | 014 \0.007 =007 | 1 | 60-73C011 | GREEN 24V LED |
- CM-XXXX-72242
CM-XXXX-74122 |
2 | 60-73C011 | GREEN 24V LEDS |
| CM-XXXX-7224 | 1 | 60-73C010 | RED 24V LED | 2 | 60-73C010 | RED 24V LEDS | ||
| CM-XXXX-7412 | 1 | 60-73C014 | AMBER 12V LED | 2 | 60-73C014 | AMBER 12V LEDS | ||
| CM-XXXX-7424 | 1 | 60-73C012 | AMBER 24V LED | CM-XXXX-74242 | 2 | 60-73C012 | AMBER 24V LEDS | |
| CM-XXXX-7612 | 1 | 60-66B001-12 |
BI-COLOR 12V
(3 WIRE) LED |
CM-XXXX-76122 | 2 | 60-66B001-12 |
BI-COLOR 12V
(3 WIRE) LED |
|
| CM-XXXX-7624 | 1 | 60-66B001-24 |
BI-COLOR 24V
(3 WIRE) LED |
CM-XXXX-76242 | 2 | 60-66B001-24 |
BI-COLOR 24V
(3 WIRE) LED |
|
| OPTIONAL MORTISE CYLINDERS | ||||||
|---|---|---|---|---|---|---|
|
ITEM
NUMBER |
PART NUMBER | DESCRIPTION | ||||
| CM-1000/60KD | MORTISE CYLINDER 1 1/8'', KEYED DIFFERENT (SOLD SEPARATELY) | |||||
| CM-1000/60KA | MORTISE CYLINDER 1 1/8'', KEYED ALIKE (SOLD SEPARATELY) | |||||
| 5 | CM-307 | MORTISE CYLINDER HOUSING FOR BEST™ STYLE IC CORE (SOLD SEPARATELY) | ||||
| CM-308 | BEST™ STYLE IC CORE, KEYED DIFFERENT (SOLD SEPARATELY) | |||||
| COMPATIBLE MOUNTING BOX OPTIONS | |||||||
|---|---|---|---|---|---|---|---|
|
ITEM
NUMBER |
PART NUMBER
DESCRIPTION |
||||||
| CM-1100 SERIES | |||||||
| CM-34AL |
SINGLE GANG ALUMINUM BOX, SURFACE MOUNT
2 7/8''W X 4 5/8''H X 2''D (73MM X 117MM X 51MM) |
||||||
| CM-66 |
FLUSH BOX & DRESS PLATE, STANDARD DEPTH BOX WITH 7'' X 7'' DRESS PLATE
HEAVY GAUGE STAINLESS STEEL |
||||||
| 6 | CM-31 |
SLEEVE COVER FOR STANDARD 2 3/4" X 4 1/4" (69MM X 110MM) SURFACE ELECTRICAL BOX.
HEAVY GAUGE STAINLESS STEEL |
|||||
| CM-CPC1 | VANDAL AND WEATHER RESISTANT CLEAR LIFT COVER | ||||||
| CM-34BL |
SINGLE GANG BLACK ABS BOX, SURFACE MOUNT
2 7/8" W X 4 5/8"H X 1 3/4"D (73MM X 117MM X 44MM) |
||||||
| CM-2000 SERIES | |||||||
| CM-23D |
SURFACE BOX WITH EXTRA DEPTH, FLAME AND IMPACT RESISTANT BLACK POLYMER (ABS)
1 3/4" W X 4 1/2"H X 1 3/4"D (46MM X 117MM X 43MM) |
||||||
