Camden CM-1000 Series Key Switch Installation Instructions
Open the original PDF document
View PDF
Door Activation Devices
CM-1000 Series Key Switch
INSTALLATION INSTRUCTIONS
| PACKAGE CONTENTS |
|---|
| (1) Heavy duty diecast surface box |
| (1) Heavy duty 1/4" thick aluminum faceplate |
| (2) Tamper proof screws and driver |
| (1) Color coded 18 AWG soldered leads |
(1) Lock ring
(1) Weatherproof gasket
Note: Mortise Cylinder Sold Separately
1. GENERAL DESCRIPTION
Camden key switches are designed to work with most 1", 1 1/8" or 1 1/4" mortise cylinders, and with different types of cams.
One or two switches may be installed, either momentary and/or maintained (alternating on/off).
2. SPECIFICATIONS
| Input Voltage | 12-24V AC/DC |
|---|---|
| Contact Rating |
6A @ 30VDC (Standard),
15A @ 30VDC (Optional) |
| Switch Life | 100,000 cycles |
| Temp Range | 32°F - 85°F (0°C to +85°C) |
| Standard Finish | Brushed aluminum |
| Dimension |
2 3/4" W x 4 1/2" H x 2" D
(70mm x 114mm x 51mm) |
3. INSTALLATION

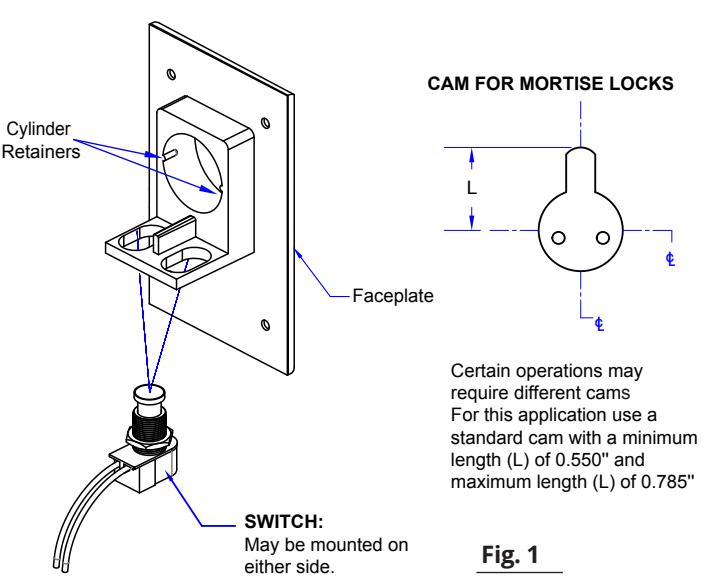

- 1. The switch (es) provided may be mounted in either the left or the right hole on the back of the faceplate. Thread the octagonal nut (spacer ring) on to the bushing (stem) of the switch before placing the switch in the hole.
- 2. Insert the switch up through the bottom of the desired hole. Secure the switch in place by screwing the round threaded washer onto the top of the switch.
- 3. Fit the mortise cylinder through the front of the face plate being sure to align the grooves on the sides of the cylinder with the corresponding "retainers" on the back of the face plate.
4. Push firmly on the cylinder, until it snaps into place, lying flush in the front of the face plate (aluminum models only). Note that some cylinders may appear not to fit in the face plate. If the grooves on the side of the cylinder are irregular and do not align with the retainers on the back of the faceplate, use a metal file to file down the retainers slightly.
Note – do not file the retainers off completely as they prevent the cylinder from spinning in the face plate.
- 5. Thread the brass cylinder lock ring onto the back of the cylinder, and tighten in place.
- 6. Turn the key in the cylinder, and ensure the cam hits the top of the switch squarely in the center. Adjust the switch in the slotted hole until the cam hits in the center. It does not affect operation of the cam if the cylinder rests against the switch, so long as the switch is not fully depressed until activated by a turn of the key. If the cam does not depress the switch, or blocks the switch from resetting, raise or lower the octagon nut located under the switch, as needed. Extra spacers are provided and may be used as required.
- 7. Once the electrical connections are completed (see fig 2), attach the faceplate assembly to the surface box using the supplied tamperproof or stainless steel Phillips screws. For outdoor use, place the rubber weather proofing gasket behind the face plate prior to securing to the surface box.
4. WIRING
| WIRING LAYOUT & COLOR CODING | |||||||
|---|---|---|---|---|---|---|---|
|
SWITCH
TYPE |
1
SPST MOMENTARY |
2
SPST MAINTAINED |
3
SPDT MOMENTARY |
4
SPDT MAINTAINED |
5
DPDT MOMENTARY |
6
DPDT MAINTAINED |
|
| N.O. or N.C. | N.O. or N.C. | ||||||
| COMMON | BLACK | BLACK | GREY | GREY | GREY (X2) | GREY (X2) | |
|
NORMALLY
OPEN |
BLACK | BLACK | BLUE | ORANGE | BLUE (X2) | ORANGE (X2) | |
|
NORMALLY
CLOSED |
BLACK | BLACK | ORANGE | ORANGE | ORANGE (X2) | ORANGE (X2) | |
Momentary: When the switch is pressed the current pole will change to the opposite state until released.
Maintained: When the switch is pressed it will provide the opposite pole until the button is pressed again
Momentary: When the switch is pressed it will provide a change of state on the N.O. & N.C. poles until released
Maintained: When the switch is pressed it will provide a change of state on the N.O. & N.C. poles until button pressed again
Momentary: When the switch is pressed it will provide a change of state on both of the N.O. & N.C. poles until released
Maintained: When the switch is pressed it will provide a change of state on both of the N.O. & N.C. poles until pressed again
Fig. 2
5. OPTIONAL WIRING

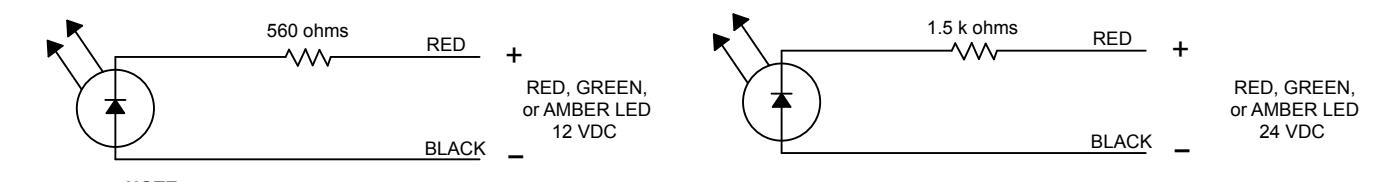

Key Switches may be ordered with optional LED's. These drawings show the various wiring configurations of the LED's.

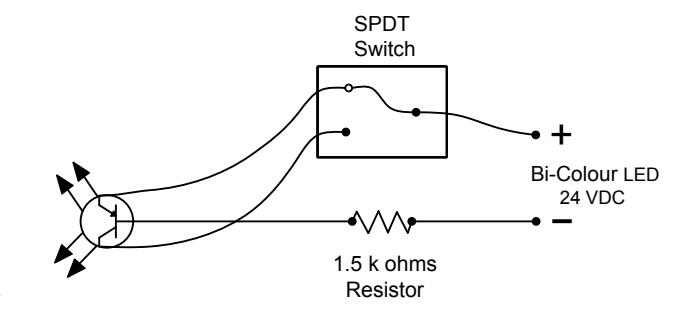

SPDT Switch H Bi-Colour LED 12 VDC 560 ohms Resistor Fig. 3
These LEDs are designed for DC Voltage only.

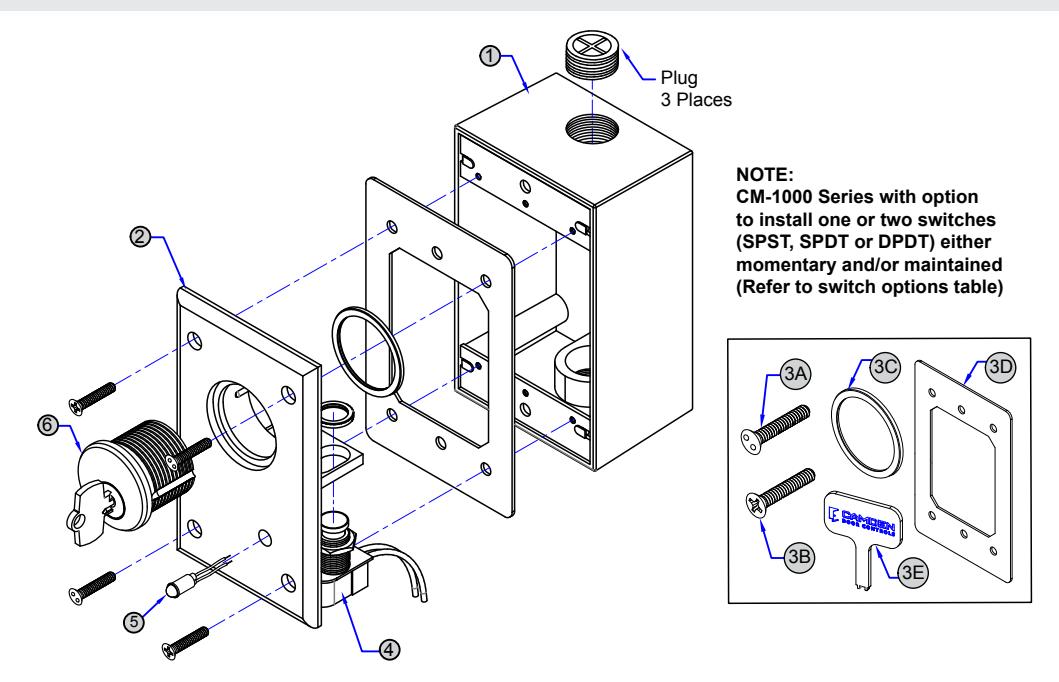

6. ORDERING INFORMATION FOR REPLACEMENT PARTS
|
ITEM
NUMBER |
PART NUMBER | DESCRIPTION |
|---|---|---|
| 1 | 60-42C032 | SINGLE GANG ALUMINUM BOX 2 7/8"W X 4 5/8"H X 2"D (72MM X 117MM X 51MM) |
| 2 | 60-41A000 | DIE-CAST ALUMINUM SINGLE GANG FACE PLATE FOR SURFACE MOUNT KEY SWITCHES |
| PARTS KIT | |||||
|---|---|---|---|---|---|
|
|||||
| 3 | 3 60-34B030 | (C) CYLINDER LOCK RING, | |||
| (D) NEOPRENE GASKET FOR SINGLE GANG SWITCHES, | |||||
| (E) KEY FOR TAMPER PROOF SCREWS (SNAKE EYE) | |||||
| CONTACT SWITCH OPTIONS | |||||||
|---|---|---|---|---|---|---|---|
|
ITEM
NUMBER |
MODEL
NUMBER |
QTY |
PART
NUMBER |
DESCRIPTION | |||
| CM-1000 | 1 | 60-68D046 | SPST MOMENTARY CONTACT SWITCH, N/O 6A @125V AC, 3A@ 30V DC | ||||
| CM-1005 | 60-68D048 | SPST MOMENTARY CONTACT SWITCH, N/C 6A @125V AC, 3A@ 30V DC | |||||
| CM-1010 | 1 | 60-68D049 | SPST MAINTAINED CONTACT SWITCH, ON/OFF 6A @125V AC, 3A@ 30V DC | ||||
| CM-1020 | 1 | 60-68D052 | SPDT MOMENTARY CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||||
| 4 | CM-1030 | 1 | 60-68D054 | SPDT MAINTAINED CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | |||
| CM-1050 | 2 | 60-68D052 | SPDT MOMENTARY CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||||
| CM-1060 | CM-1060 2 | SPDT MAINTAINED CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | |||||
| CM-1070 | 1 | 60-68D052 | SPDT MOMENTARY CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||||
| CIM-1070 | 1 | 60-68D054 | SPDT MAINTAINED CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||||
| CM-1080 | 1 | 60-68D053 | DPDT MOMENTARY CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | ||||
| CM-1082 | 2 | 60-68D053 DPDT MOMENTARY CONTACT SWITCH, 6A @125V AC, 3A@ 30V | |||||
| CM-1090 | CM-1090 1 60-68D055 DPDT MAINTAINED CONTAC | DPDT MAINTAINED CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | |||||
| CM-1092 2 | 60-68D055 | DPDT MAINTAINED CONTACT SWITCH, 6A @125V AC, 3A@ 30V DC | |||||
| HEAVY DUTY CONTACT SWITCH OPTIONS | ||||||
|---|---|---|---|---|---|---|
| ITEM PART DESCRIPTION | ||||||
| 4 | 60-68D047 | SPST MOMENTARY CONTACT SWITCH, HEAVY DUTY, 15A@ 30V DC | ||||
| 4 | 60-68D050 | SPST MAINTAINED CONTACT SWITCH, HEAVY DUTY, 15A@ 30V DC | ||||
| LE LED OPTI | ONS | DOUBLE LED OPTIONS | ||||||
|---|---|---|---|---|---|---|---|---|
|
ITEM
NUMBER |
MODEL
NUMBER |
QTY |
PART
NUMBER |
DESCRIPTION |
MODEL
NUMBER |
QTY |
PART
NUMBER |
DESCRIPTION |
| CM-XXXX-7012 | 1 | 60-73C008 | RED 12V LED | CM-XXXX-70122 | 2 | 60-73C008 | RED 12V LEDS | |
| CM-XXXX-7024 | 1 | 60-73C010 | RED 24V LED | CM-XXXX-70242 | 2 | 60-73C010 | RED 24V LEDS | |
| CM-XXXX-7112 | 1 | 60-73C009 | GREEN 12V LED | CM-XXXX-71122 | 2 | 60-73C009 | GREEN 12V LEDS | |
| CM-XXXX-7124 | 1 | 60-73C011 | GREEN 24V LED | CM-XXXX-71242 | 2 | 60-73C011 | GREEN 24V LEDS | |
| 5 | CM-XXXX-7212 | 1 | 60-73C009 | GREEN 12V LED | CM-XXXX-72122 | 2 | 60-73C009 | GREEN 12V LEDS |
| 1 | 60-73C008 | RED 12V LED | 2 | 60-73C008 | RED 12V LEDS | |||
| CM-XXXX-7224 | 1 | 60-73C011 | GREEN 24V LED | CM-XXXX-72242 CM-XXXX-74122 CM-XXXX-74242 | 2 | 60-73C011 | GREEN 24V LEDS | |
| 1 | 60-73C010 | RED 24V LED | 2 | 60-73C010 | RED 24V LEDS | |||
| CM-XXXX-7412 | 1 | 60-73C014 | AMBER 12V LED | 2 | 60-73C014 | AMBER 12V LEDS | ||
| CM-XXXX-7424 | 1 | 60-73C012 | AMBER 24V LED | 2 | 60-73C012 | AMBER 24V LEDS | ||
| CM-XXXX-7612 | 1 | 60-66B001-12 |
BI-COLOR 12V
(3 WIRE) LED |
CM-XXXX-76122 | 2 | 60-66B001-12 |
BI-COLOR 12V
(3 WIRE) LED |
|
| CM-XXXX-7624 | 1 | 60-66B001-24 |
BI-COLOR 24V
(3 WIRE) LED |
CM-XXXX-76242 | 2 | 60-66B001-24 |
BI-COLOR 24V
(3 WIRE) LED |
|
| OPTIONAL MORTISE CYLINDERS | |||||||
|---|---|---|---|---|---|---|---|
|
ITEM
NUMBER |
DESCRIPTION | ||||||
| CM-1000/60KD | MORTISE CYLINDER 1 1/8", KEYED DIFFERENT (SOLD SEPARATELY) | ||||||
| 6 | CM-1000/60KA | MORTISE CYLINDER 1 1/8", KEYED ALIKE (SOLD SEPARATELY) | |||||
| 6 | CM-307 | MORTISE CYLINDER HOUSING FOR BEST™ STYLE IC CORE (SOLD SEPARATELY) | |||||
| CM-308 | BEST™ STYLE IC CORE, KEYED DIFFERENT (SOLD SEPARATELY) | ||||||
