CX-WC Series Barrier Free Restroom Control

Camden Door Controls leads the industry with a range of packages designed specifically for the control of automatic doors in restroom applications.

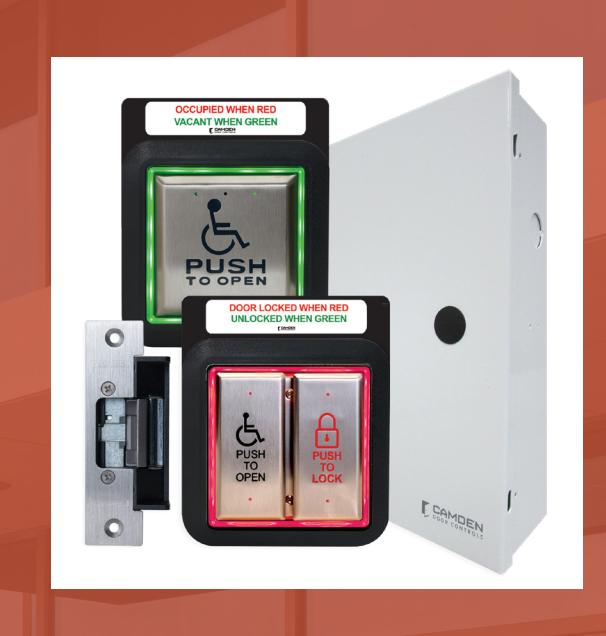

CX-WC Series barrier free restroom control kits include everything needed for a complete installation, including control relays, activation switches, annunciation, electric strikes and power supplies.

Camden kits also feature exclusive products not available elsewhere, including single gang LED annunciators with white-out text, Aura™ illuminated push plate switch enclosures, the option for touchless switches and a pre-wired power supply cabinet.

Features

• System kits updated to include all components; power supply, controller, activation switches, annunciation, door contact and electric strike.
• Exclusive products and features not available elsewhere.
• The widest range of design options for one or two door restrooms, including the option for touchless switch activation.
• Compatible with Camden 'CX-WEC' emergency call systems for universal restrooms.
• Specifically designed to meet the latest requirements of Ontario Reg. 368/13 Amendment to 2012 OBC for barrier free restrooms.
• 3 year warranty

CX-WC: RESTROOM CONTROL COMPONENTS

Camden Door Controls offers the industry's largest selection of control, activation and locking products specifically designed for use in any barrier free restroom control application. Each component offers the best quality and performance, backed by the best warranty in the industry.

See individual product specification sheets for a complete list of product information for each model shown.

CX-33 Advanced Logic Relay Controller

Compact design fits in automatic door operator cabinet
5 Inputs, including a 'wet' input
15 Operating modes with sub-modes

CX-EMF-2 Multi-Function Relay Controller

Accepts up to 7 dry inputs
5 Form C, 3 Amp relay outputs
Supports two door restroom applications
Supports flashing emergency call system annunciation & programmable door lock time

Surface 'Push To Open' & 'Push To Lock' CM-2520/4854SE1 Combo Push Plate Switch, Blue/Green/Red Illumination and Sign

Field selectable AURA™ illuminated ensclosure and sign (idle and active)
Audible (sounder) confirmation of switch activation (selectable 'ON'/'OFF')

CM-45/4 All-Active™ 4-1/2" Square 'Push to Open' Push Plate Switch with Wheelchair

Surface 'Push To Open' Push Plate

4-1/2" Square heavy gauge stainless steel faceplate
UL/CSA approved switch
Rated 15 Amps @ 30 VDC

CM-45/454SE1 Switch with Blue/Green/Red Illumination and Sign

Field selectable AURA™ illuminated ensclosure and sign (idle and active)
Audible (sounder) confirmation of switch activation (selectable 'ON'/'OFF')

CM-AF500 Single Gang 'Occupied When Lit' LED Annunciator

'Super Bright' LEDs for high visibility, even in daylight
Text/graphics are not legible when not illuminated
· Vandal and weather resistant construction

CM-AF550R Double Gang Mushroom 'Push to Lock' Button and LED Annunciator

Single gang, momentary N/O, 1-5/8" red button
Rated 6 Amps @ 30 VDC
'Super Bright' LEDs for high visibility, even in daylight

CX-33PS Advanced Logic Relay, 2 Amp Power Supply Cabinet and Transformer

Pre-wired with large terminal block for easy access
Removable door with option for cabinet lock
12/24 VDC power supply, 2 Amps (UL listed)
Short circuit and thermal overload protection

CX-EMF2PS Multi-Function Relay, 2 Amp Power Supply, Cabinet and Transformer

Pre-wired with large terminal block for easy access
Removable door with option for cabinet lock
12/24 VDC power supply, 2 Amps (UL listed)
Short circuit and thermal overload protection

Flush 'Push To Open' & 'Push To Lock' CM-2520/4855SE1 Combo Push Plate Switch, Blue/Green/Red Illumination and Sign

Field selectable AURA™ illuminated ensclosure and sign (idle and active)
Audible (sounder) confirmation of switch activation (selectable 'ON'/'OFF')

CM-400R/8 'Push to Lock' Mushroom Push Button
Single gang, momentary N/O, 1-5/8" red button
UL/CSA approved switch
Rated 6 Amps @ 30 VDC

CM-AF503

CM-7536VR

Flush 'Push To Open' Push Plate CM-45/455SE1 Switch with Blue/Green/Red Illumination and Sign

Single Gang 'Occupied When Lit'

Horizontal, Curved LED Annunciator

36" Column™ Switch w/ Hands Free

Sensor 'Push to Lock' Anodized

Aluminum Finish and Sign

Field selectable AURA™ illuminated ensclosure and sign (idle and active)
Audible (sounder) confirmation of switch activation (selectable 'ON'/'OFF')

'Super Bright' LEDs for high visibility, even in daylight
Text/graphics are not legible when not illuminated
· Vandal and weather resistant construction

Low profile contoured design with easy activation from any angle with purchased stress assets.

with push plate switch or hands free sensor
Over 94 square inches total activation area
(2) fully redundant SPDT switches, 15 Amps

'Wave to Open' Touchless Switch with CM-331/42SW-SGLR Green/Red Illumination and Sign

Adjustable standard operating range 1"- 28"
Heavy duty 3 Amp relays
· 'Super Bright' LED light ring with field selectable illumination (idle and active)

CM-325/42SW Short Range Touchless Switch

1" Adjustable operating range with immunity to false activations
Heavy duty 3 Amp relays
Selectable fail safe/fail secure operation

CX-MDA Magnetic Door Contact

Surface, SPST contact
15/16" (23mm) gap

'Wave to Lock' Touchless Switch with CM-331/43S-SGLR Green/Red Illumination and Sign

Adjustable standard operating range 1"- 28"
Heavy duty 3 Amp relays
'Super Bright' LED light ring with field selectable illumination (idle and active)

CX-ED2079

'Universal' Grade 2 Electric Strike

Compatible with cylindrical locksets with 1/2" 5/8" latch projection
'Universal' 12/24V, AC/DC, operation, fail safe/fail secure
3 Stainless steel faceplates included

CX-WC: RESTROOM CONTROL KITS

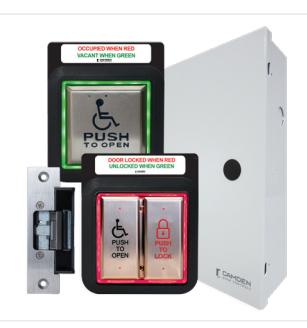

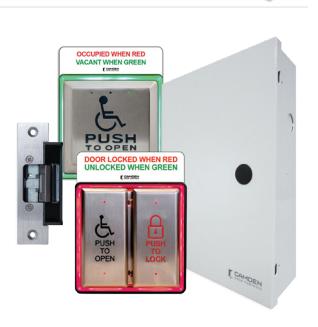

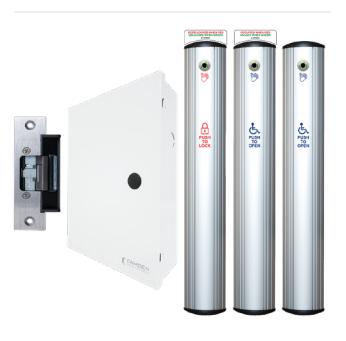

Camden has an extensive range of advanced barrier free restroom control kits that include all the components you need for a complete installation, including relay control, push plate switches, 'occupied' and 'locked' status annunciation, electric strikes and power supplies. In addition to single door restroom kits using push plate switches, Camden also offers the convenience of restroom kits using touchless switches, and even kits for restrooms with two doors!
