CX-MA0611 & CX-MA1211 Glass Door Mounting Kit for 600 and 1200 LB Magnetic Locks

INSTALLATION INSTRUCTIONS

1. INSTALLING THE U-BRACKET

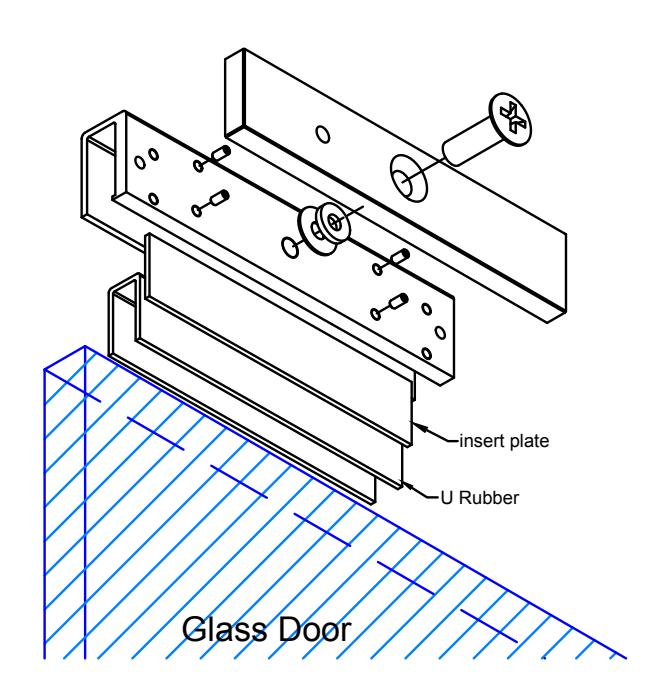

• 1. Place the U-rubber over the top of the glass door as shown in figure 1
• 2. Place the insert plate against the rubber (On the side where the armature plate will sit)
• 3. Place the U-Bracket over the insert plate and tighten using the 4 set screws provided
• 4. Place the flat washers in between the bracket unit and the armature plate. Secure the bracket unit by tightening the Armature plate with the Philips flat head screw provided

Note: DO NOT attach the mounting bracket too firmly, allow floating movement for maximum holding force.

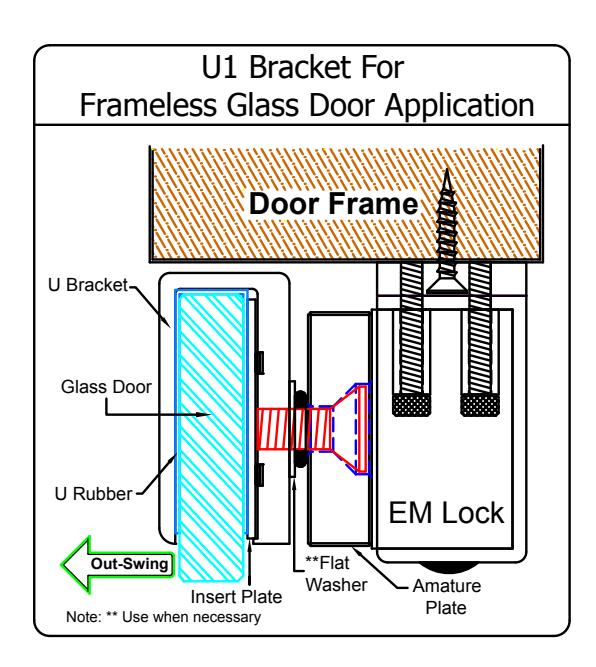

CX-MA0611 and CX-MA1211 Bracket (Frameless Glass Door Installtion)

figure 1 <u>Installation Method</u>

2. DIMENSIONS

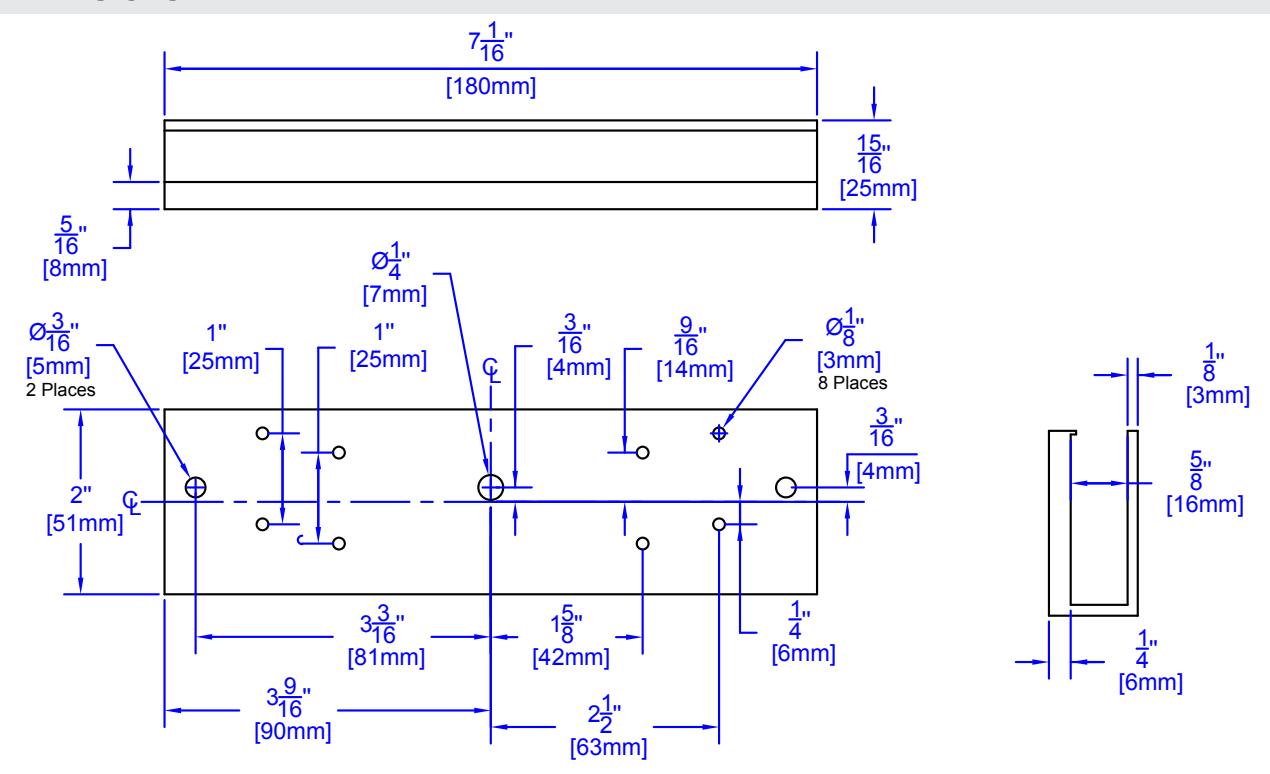

CX-MA0611 Bracket

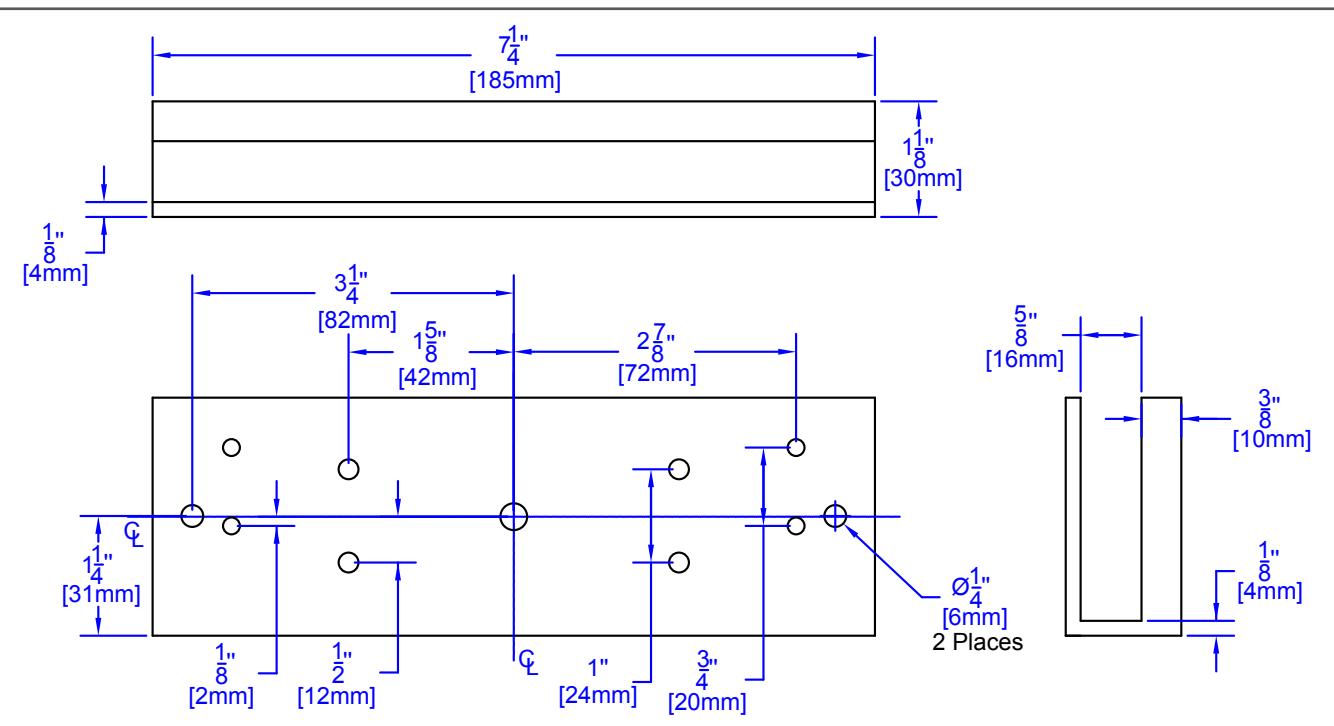

CX-MA1211 Bracket
