CX-EMF-2 Spec Sheet

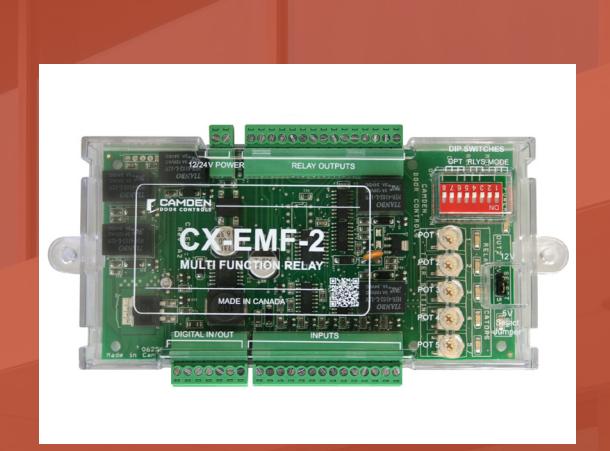

CX-EMF-2 Multi-Function Relay

Camden's CX-EMF-2 Multi-Function Relay is a microprocessor-controlled relay designed to easily and quickly handle a variety of specialized doorcontrol tasks.

This smart new design allows for future development by utilizing expandable technology and reprogrammable IC 's.

All wiring connections and adjustments are made on the exterior of the plastic case with removable terminals to facilitate installation. Simple yet effective potentiometers enable settings to meet varied requirements.

A power LED, 1 status LED, and five relay LEDs aid in set-up and troubleshooting.

Also available is the option of a metal cabinet with lighted control switches.

Camden's CX-EMF-2 Multi-Function Relay Module is designed to provide the best performance and value in the industry.

Features

• • Microprocessor Control
• • User Selectable Multi-Application Design
• • Plug-in Connectors for Wiring
• • Accepts up to 7 Dry Inputs
• • 5 Form 'C', 3 Amp Relay Outputs
• • 12/24V AC/DC Operation
• • 3 Year Warranty

Product Specification Sheets CX-EMF-2

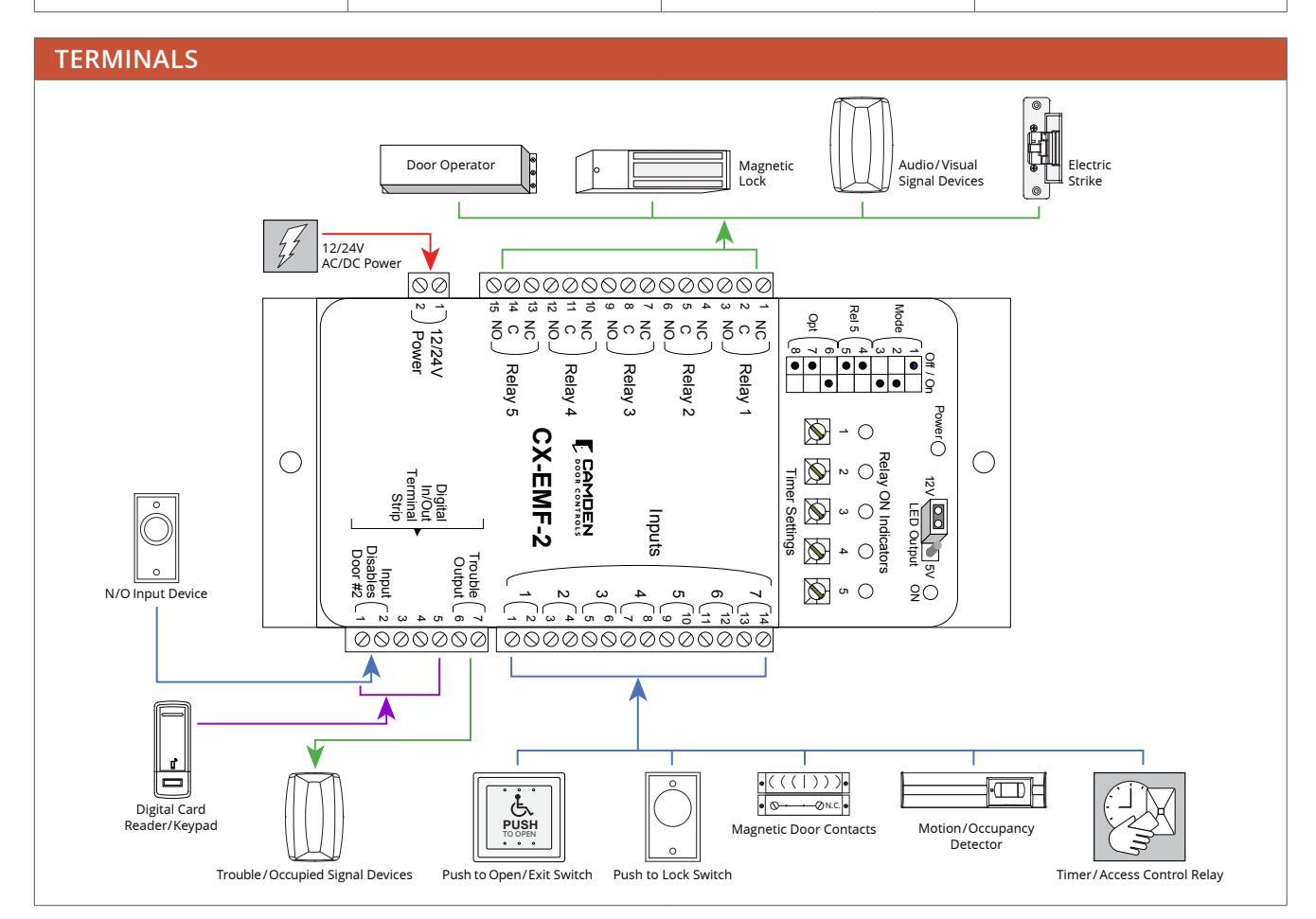

SPECIFICATIONS

VOLTAGE: 12/24V AC/DC

CURRENT DRAW: 150mA @ nominal 500mA @ maximum

RESPONSE TIME: 0.3 seconds MODE SELECTOR: via 3 dipswitches

INPUTS: 7 Dry Contacts, 1 Digital Input OUTPUTS: 5 SPDT Relays, 1 Digital Output

FIRMWARE: Version A1-001 CONTACT RATING: 3 Amps @ 20 VDC

TIME DELAYS: 5 pots, adjustable 1 - 30 seconds (depending on mode)

ELECTRICAL LIFE: 100,000 operations @ rated or

500,000 operations @ 1/2 rated capacity

MOUNTING: EMF-2: Double-sided foam tape or (2) #6 screws

EMF-2M & EMF-2ABM: 4 x Metal screws & anchors

ENCLOSURE: EMF-2: Formed Plastic Housing

EMF-2M & EMF-2ABM: Beige Metal Cabinet

DIMENSIONS: EMF-2: 3" W x 7" H x 7/8" D (76 mm x 178 mm x 22 mm)

EMF-2M & EMF-2ABM:

7-1/2" W x 12" H x 3-3/4" D (191 mm x 305 mm x 95 mm)

ORDERING INFORMATION

CX-EMF-2 Relay Supplied in Sturdy Gray Plastic Case

CX-EMF-2M Relay Supplied in Lockable Beige Metal Cabinet with Illuminated On/Off Switch for Door Status

CX-EMF-2ABM Relay Supplied in Lockable Beige Metal Cabinet with Two Illuminated On/Off Switches for Door Status

CX-MDC One Set of Magnetic Door Contacts. Used in Man-Trap and Restroom Door Applications
