CX-ED1959-MB Spec Sheet

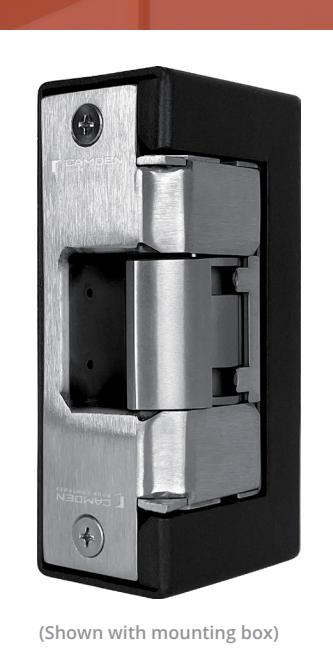

CX-ED1959-MB Outdoor Rated Electric Strike

Camden CX-ED1959-MB outdoor-rated strikes feature heavy-duty stainless steel construction with an integrated ANSI square faceplate and grade 1 performance. Compatible with cylindrical locksets and mortise locksets without deadbolts, CX-ED1959-MB strikes are specifically designed for exposed perimeter doors

The 'universal' strike design features field selectable 12/24V, DC voltage, and fail safe/ fail secure operation. The CX-ED1959-MB model includes a heavy gauge painted steel mounting box at no additional charge.

Features

• • Grade 1 strike for exterior doors and gates
• • For cylindrical and mortise locksets (without deadbolts)
• • 7/8" latch projection
• • Metal mounting box included
• • Universal design:
  • Selectable 12/24V DC
  • Selectable fail safe/fail secure operation
• • Integrated ANSI square faceplate
• • Heavy-duty stainless steel construction
• • Continuous duty operation
• • Easy fit connectors
• • 5-year warranty

and gates.

SPECIFICATIONS

Voltage: 12/24V DC

Current Draw: 280mA / 140mA

Static Strength: 1,500 Lbs.

Dynamic Strength: 70 Ft-Lbs.

Endurance: 1,000,000 Cycles (Factory Tested)

250,000 Cycles (UL Certified)

Latch Opening: 1-9/16" x 7/8"

(40mm x 22mm)

Modes: Selectable Fail Safe/Fail Secure

Duty: Continuous

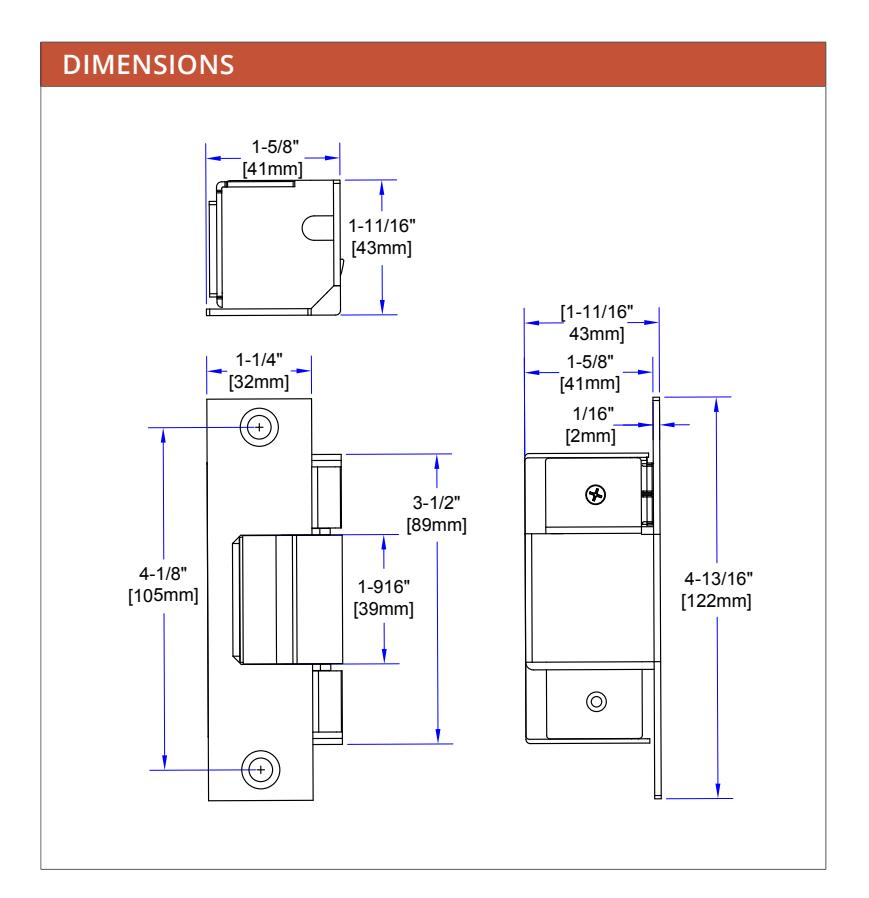

Dimensions: 4-7/8" H x 1-5/8" W x 1-5/8" D

(124mm x 41mm x 41mm)

ORDERING INFORMATION

MODEL

CX-ED1959-MB Outdoor rated grade 1 strike for exterior doors and gates. Supplied with metal mounting box.
