CX-ED1579L Spec Sheet

CX-ED1579L 'All In One' Fire Rated Electric Strike

Camden CX-ED1579L Grade 1 fire rated 'all in one' electric strikes include built-in latchbolt monitoring at no additional cost. This saves installers hundreds of dollars by eliminating the need to stock or order different strike models. In addition, Camden CX-ED1579L strikes offer true 'Universal' performance with five stainless steel faceplates, field selectable voltage, and fail safe/ fail secure operation.

Camden CX-ED1579L strikes are UL security and 3-hour fire rated, nonhanded, and compatible with most mortise and cylindrical locksets. In addition, they feature adjustable latch monitor placement and easy-fit wiring connectors for power and monitoring.

Features

• • For mortise and cylindrical locksets
• • 3/4" (19mm) latch projection (throw)

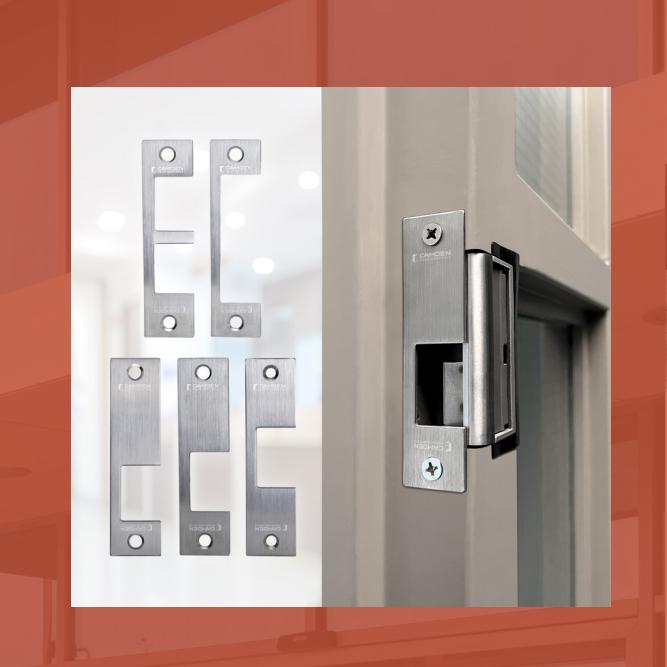

• • 5 stainless steel faceplates included
• • Selectable fail safe/fail secure operation
• • Selectable 12/24V AC/DC
• • Built-in latch monitoring
• • Non-handed, LH/LR
• • Easy fit connectors for power and monitoring wires
• • Stainless steel strike body
• • 5 year warranty

SPECIFICATIONS

12/24V AC/DC Voltage:

Current Draw: 260mA @12V AC/DC

150mA @24V AC/DC

Static Strength: 1,500 lbs. 70 ft-lbs. Dynamic Strength:

Mode: Field Selectable Fail Safe or Fail Secure

AC Buzz, DC Silent Operation: Continuous (DC) Duty: Non-handed Mounting:

Endurance: 1,500,000 Cycles (Factory Tested)

250,000 Cycles (UL Verified)

Fire Rating: UL10C/CAN4-S104 3hrs.

(Fail Secure Mode Only)

Latch Bolt Monitor: SPDT, 100mA @ 24V DC Dimensions:

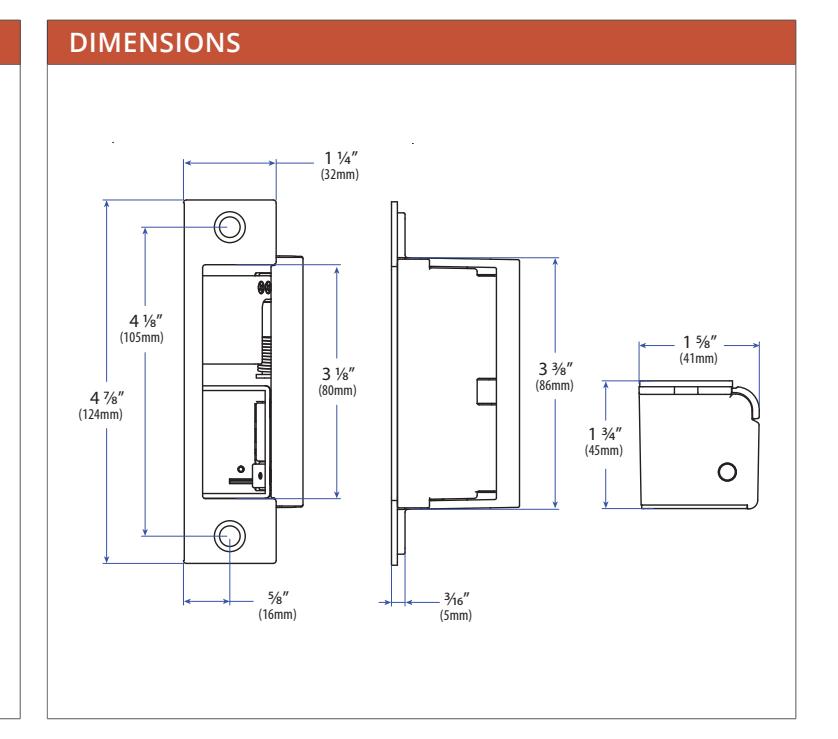

4-7/8"L x 1-1/4"W x 1-3/4"D

(124mm x 32mm x 45mm)

ORDERING INFORMATION
MODEL
CX-ED1579L	Grade 1 'all in one' fire rated strike, 12/24V AC/DC, For mortise and cylindrical locksets

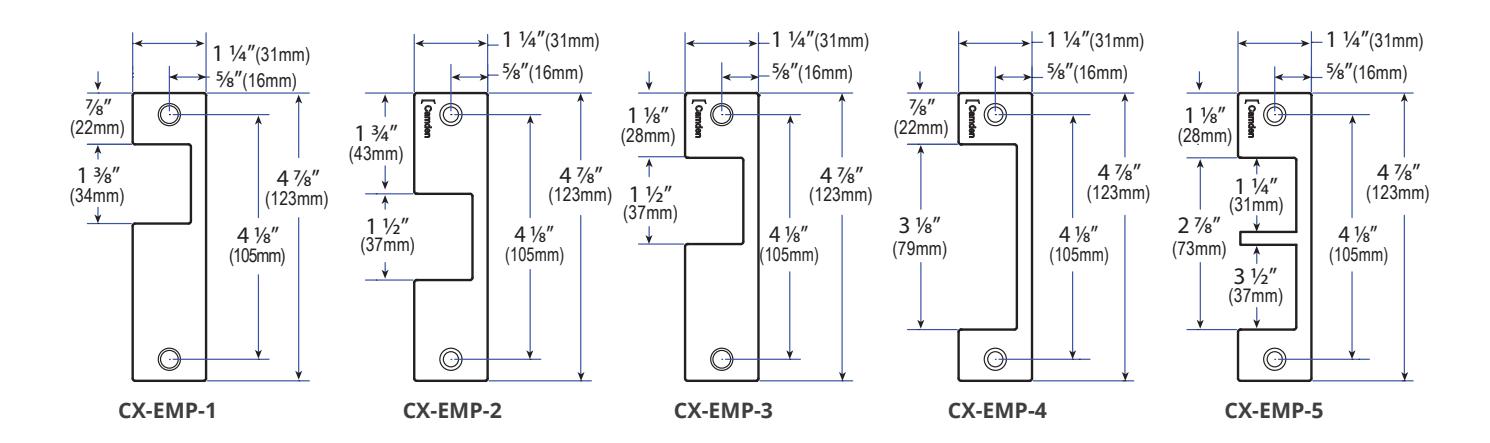

FACEPLATES (included in package)
CX-EMP-1	Stainless faceplate for Sargent, Schlage & Yale mortise locksets
CX-EMP-2	Stainless faceplate for Arrow, Corbin & Best mortise locksets
CX-EMP-3	Stainless faceplate for centerline mortise or cylindrical locksets
CX-EMP-4	Stainless faceplate for mortise locksets with deadbolt
CX-EMP-5	Stainless faceplate for all mortise locks that include both latch & deadbolt
CUTTING JIGS (for 1/4" Collet and a 1/8" Router bit)
CX-JIG6	For CX-ED1579L strike, ANSI faceplate CX-EMP-3

Opening New Doors to Innovation, Quality, and Support!
