CX-ED1309 Series 'Universal' Electric Strike for Narrow Stile Aluminum Door Frames

BEST VALUE BEST QUALITY

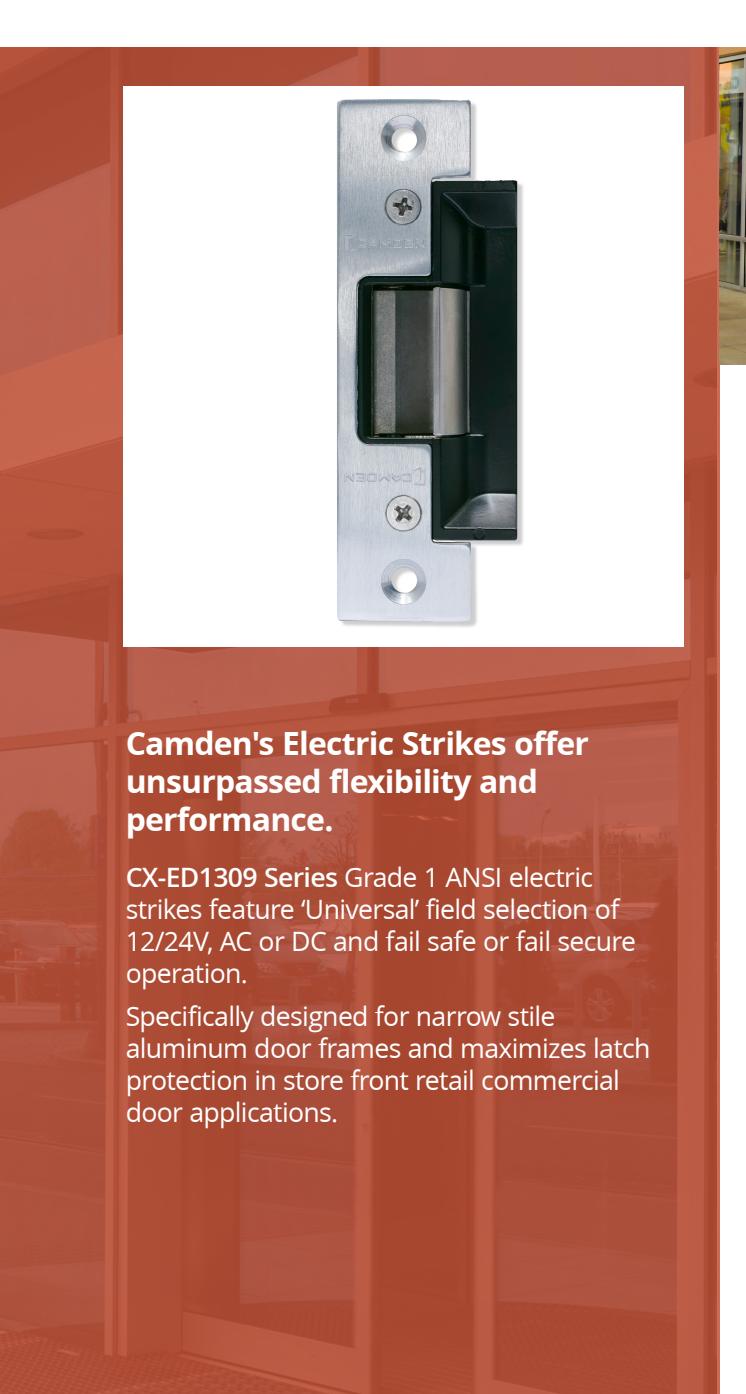

CX-ED1309 Electric Strike Body may be purchased with a separate ANSI square, ANSI round, hollow metal or wood door faceplate, with either a brushed aluminum or dark bronze finish.

CX-ED1379 packages the Strike Body with (2) ANSI round faceplates; one with brushed aluminum finish and one with dark bronze finish.

Features

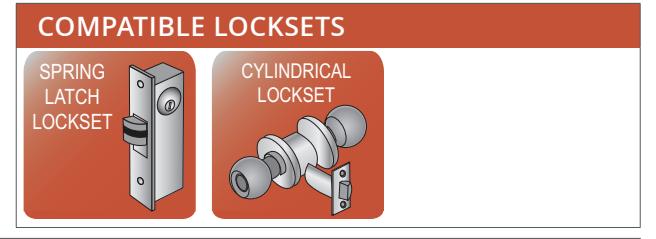

• • Ideal for cylindrical or spring latch locksets in wood, hollow metal or aluminum frames
• • CX-ED1379 includes two ANSI round faceplates
• • Selectable Fail Safe/Fail Secure
• • Selectable 12/24V, AC/DC
• • 1/2" to 5/8" Latch Projection
• • Easy Fit Connectors and Mounting Tabs Included
• • A wide selection of aluminum and dark bronze faceplates
• • 5 Year Warranty

DOOR FRAME TYPES

SPECIFICATIONS

VOLTAGE: 12/24V AC/DC CURRENT DRAW: 260mA @ 12V DC

150mA @ 24V DC

FACEPLATES: CX-ED1379: Brushed Aluminum (BHMA 628)

Dark Bronze (BHMA 710)

STATIC STRENGTH: 1,500 Lbs. DYNAMIC STRENGTH: 70 Ft-Lbs.

ENDURANCE: 1,000,000 Cycles (Factory Test), 250,000 Cycles (UL Verified)

OPERATION: AC-Buzz, DC-Silent DUTY: Continuous

DIMENSIONS: Body: 4 7/8" H x 1 11/16" W x 1 5/8" D (124mm x 43mm x 42mm)

ORDERING INFORMATION

Electric Strike with Faceplates

CX-ED1379

Grade 1 'Universal' Electric Strike, 12/24V AC/DC, fail safe/fail secure operation with

(1) CX-ESF-2 ANSI Round Faceplate - Brushed Aluminum finish

(1) CX-ESF-2BZ ANSI Round Faceplate - Dark Bronze finish

CX-ED1309

Grade 1 'Universal' Electric Strike Body, 12/24V AC/DC, fail safe/fail secure operation. Order faceplate separately.

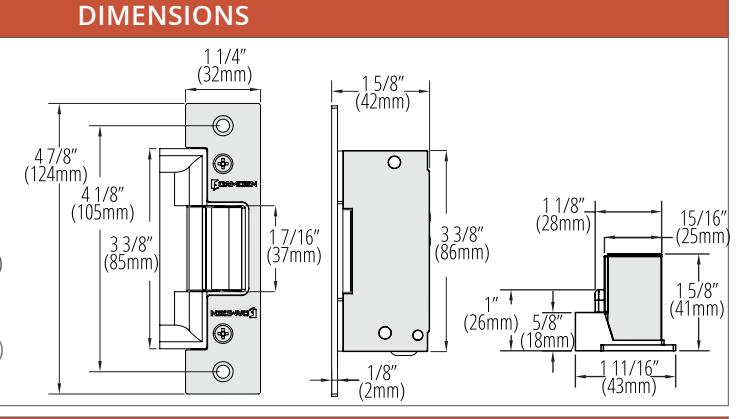

FACEPLATES OPTIONS Brushed Aluminum Finish (BHMA 628) / Dark Bronze Finish (BHMA 710) (32mm) 6 1/8' (154mn 0 7 1/2' 4 1/8" (104mm 3 %" 3 3/8 6 1/8" (85mm) 7 1/8" (85mm) 4 1/8" 4 7/2" O (123mm) (123mm) 3/4" (19mm) 3/4" (19mm) 2 1/4' CX-ESF-4: Aluminum Finish CX-ESF-1: Aluminum Finish CX-ESF-2: Aluminum Finish CX-ESF-3: Aluminum Finish CX-ESF-1BZ: Dark Bronze Finish CX-ESF-2BZ: Dark Bronze Finish CX-ESF-3BZ: Dark Bronze Finish CX-ESF-4BZ: Dark Bronze Finish Hollow Metal Frame ANSI Square ANSI Round Wood Frame CX-ESF-2BR: Aluminum Finish CX-ESF-3BR: Aluminum Finish CX-ESF-2BR-BZ:Dark Bronze Finish CX-ESF-3BR-BZ: Dark Bronze Finish Radius ANSI Round Radius Wood Frame
