CX-ED1079 SERIES

'UNIVERSAL' LOW & STANDARD PROFILE ELECTRIC STRIKES

FEATURES

• COMPATIBLE WITH CENTERLINE CYLINDRICAL AND MORTISE LOCKSETS
• CX-ED1079: SHALLOW DEPTH, 1/2"-5/8"(13mm 16mm)
• CX-ED1079L: AS ABOVE, WITH LATCH MONITORING
• CX-ED1079D: EXTENDED DEPTH, 5/8"-3/4"(16mm 19mm)
• CX-ED1079DL: AS ABOVE, WITH LATCH MONITORING
• FIELD SELECTABLE FAIL SECURE/FAIL SAFE
• DUAL VOLTAGE 12/24V, AC OR DC
• ADJUSTABLE STRIKE BODY

• 3 STAINLESS STEEL FACEPLATES PROVIDED:
• ANSI SQUARE
  • 4 7/8" x 1 1/4" (123mm x 32mm)
• HOLLOW METAL DOOR 6 7/8" x 1 1/4" (173mm x 32mm)
• WOOD DOOR 7 7/8" x 1 3/8" (200mm x 36mm)
• CONTINUOUS DUTY OPERATION
• NON-HANDED
• EASY FIT CONNECTORS FOR POWER & MONITORING WIRES
• TRIM PLATE PROVIDED
• 5 YEAR WARRANTY

DESCRIPTION

DIMENSIONS

Camden CX-ED1079 Series low profile, for 5/8" latch projection) and CX-ED1079D (standard depth, for 3/4" latch projection) 'Universal' grade 1 ANSI strikes offer 'universal' performance with selectable 12/24V AC/DC and fail safe/fail secure operation, and have horizontal faceplate/body adjustment.

CX-ED1079 AND STAINLESS STEEL FACEPLATES

C

DOOR FRAME TYPES

COMPATIBLE LOCKSETS

SPECIFICATIONS

VOLTAGE: MECHANICAL 12/24V AC/DC

ADJUSTMENT: STRIKE BODY CURRENT DRAW: 260mA@12V DC.

OPERATION: AC - BUZZ, DC - SILENT 150mA@24V DC

STATIC HOLD FORCE: 1.500 LBS. LATCH MONITOR: LATCH BOLT DYNAMIC STRENGTH: 70 FT-LBS. DUTY: CONTINUOUS

ENDURANCE: DIMENSIONS (BODY): 1,000,000 CYCLES

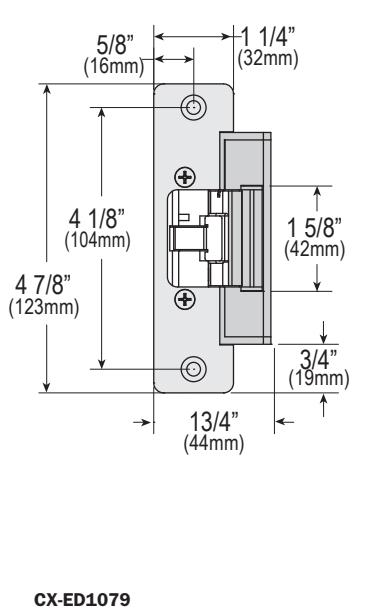

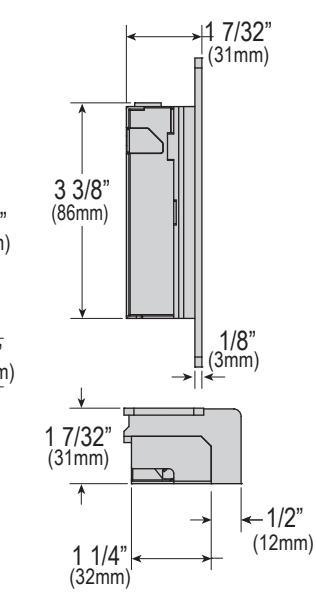

(FACTORY TESTED) CX-ED1079: 3 3/8"L x 1 3/4"W x 1 7/32"D 250,000 CYCLES

(86mm x 44mm x 31mm)

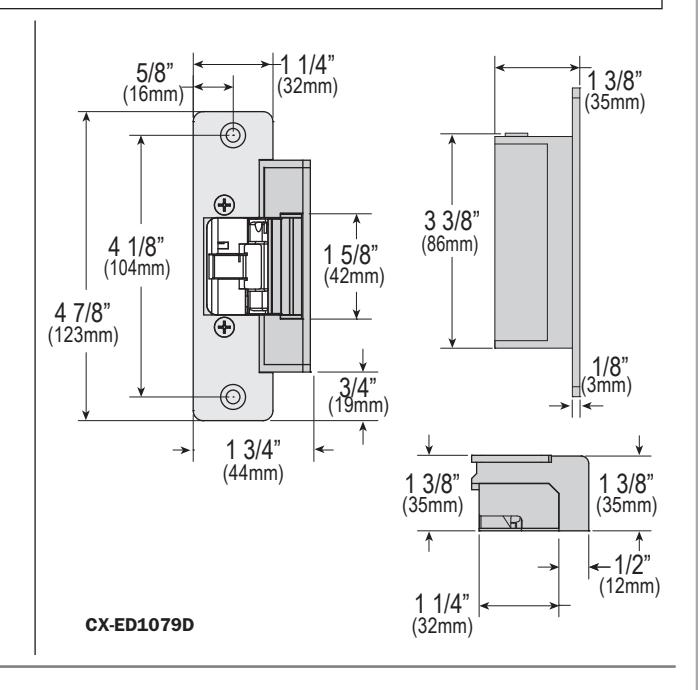

CX-ED1079D: (UL VERIFIED) 3 3/8"L x 1 3/4"W x 1 3/8"D

(86mm x 44mm x 35mm)

MODE:

FIFI D SFI FCTARI F FAIL SAFE/FAIL SECURE

ORDERING INFORMATION

CX-ED1079: LOW PROFILE GRADE 1 'UNIVERSAL' ELECTRIC STRIKE, 12/24V AC/DC, FAIL SAFE/FAIL SECURE

OPERATION, HORIZONTAL ADJUSTMENT, AND 3 STAINLESS STEEL FACEPLATES

(CX-ESP1B, CX-ESP3B & CX-ESP4B)

CX-ED1079L: AS ABOVE, WITH LATCH MONITORING

CX-ED1079D: STANDARD DEPTH GRADE 1 'UNIVERSAL' ELECTRIC STRIKE, 12/24V AC/DC, FAIL SAFE/FAIL

SECURE OPERATION. HORIZONTAL ADJUSTMENT. AND 3 STAINLESS STEEL FACEPLATES

5/8"

(CX-ESP1B, CX-ESP3B & CX-ESP4B)

CX-ED1079D: AS ABOVE, WITH LATCH MONITORING

FACEPLATES

INCLUDED IN PACKAGE

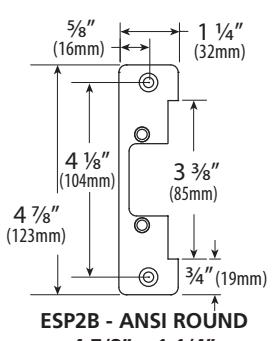

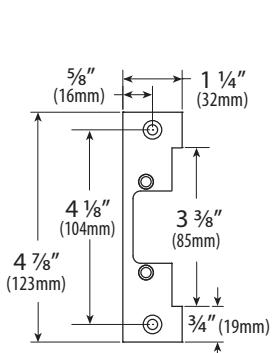

ESP1B - ANSI SQUARE 4 7/8" x 1 1/4"

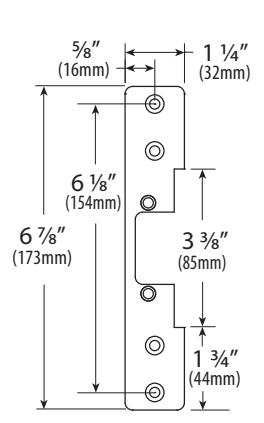

ESP3B - HOLLOW METAL DOOR 6 7/8" x 1 1/4" - STAINLESS STEEL

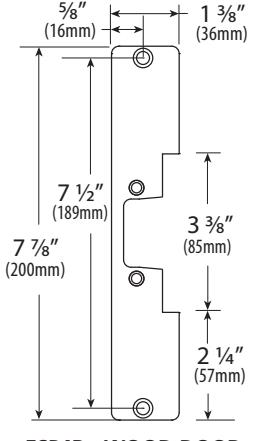

ESP4B - WOOD DOOR 7 7/8" x 1 3/8"

ADDITIONAL FACEPLATE

4 7/8" x 1 1/4"

CUTTING JIGS

CX-JIG1: FOR CX-ED1079L STRIKE, ANSI ROUND FACEPLATE (CX-ESP2B)

CX-JIG2: FOR CX-ED1079L STRIKE, HOLLOW METAL DOOR FACEPLATE (CX-ESP3B)

CX-JIG3: FOR CX-ED1079DL STRIKE, ANSI ROUND FACEPLATE (CX-ESP2B)

CX-JIG4: FOR CX-ED1079DL STRIKES, HOLLOW METAL DOOR FACEPLATE (CX-ESP3B)

CX-JIG5: FOR CX-ED1079L/DL STRIKES, ANSI & HOLLOW METAL DOOR FACEPLATES

LIP EXTENSION BRACKETS

CX-ED-LIP1:

1" LIP EXTENSION FOR ANSI STRIKES (STACKABLE)

CX-ED-LIP2:

2" LIP EXTENSION FOR ANSI STRIKES

CX-ED-LIP1

CX-JIG1
