Door Activation Devices
CX-DESPK Remote Speaker Station
INSTALLATION INSTRUCTIONS
THIS PACKAGE INCLUDES:
(1) Foam Gasket
(2) #6-32 1" SS FLT HD screws
(2) #6-32 Tamperproof screws
(1) Tamper proof driver
1. GENERAL DESCRIPTION
CAMDEN DOOR CONTROLS CX-DESPK Speaker station is designed for industrial and commercial applications, where both audio and visual indication is required. The RGB LED is capable of visually displaying three distinct colors for designated states: red, green, and yellow. The 8-ohm speaker can provide audio messages remotely.
The faceplate is Stainless Steel with a 1-3/8" Square Lens. This unit requires 12/24V AC/DC to operate.
2. APPLICATION
Camden remote speaker station is ideal for applications that require a visual and audio capabilities such as a remote speaker station for delayed egress locks, emergency call or intercom systems. It can be surface or flush mounted. Camden remote speaker station is designed to be wired to delayed egress maglocks, emergency call systems and other low voltage systems.

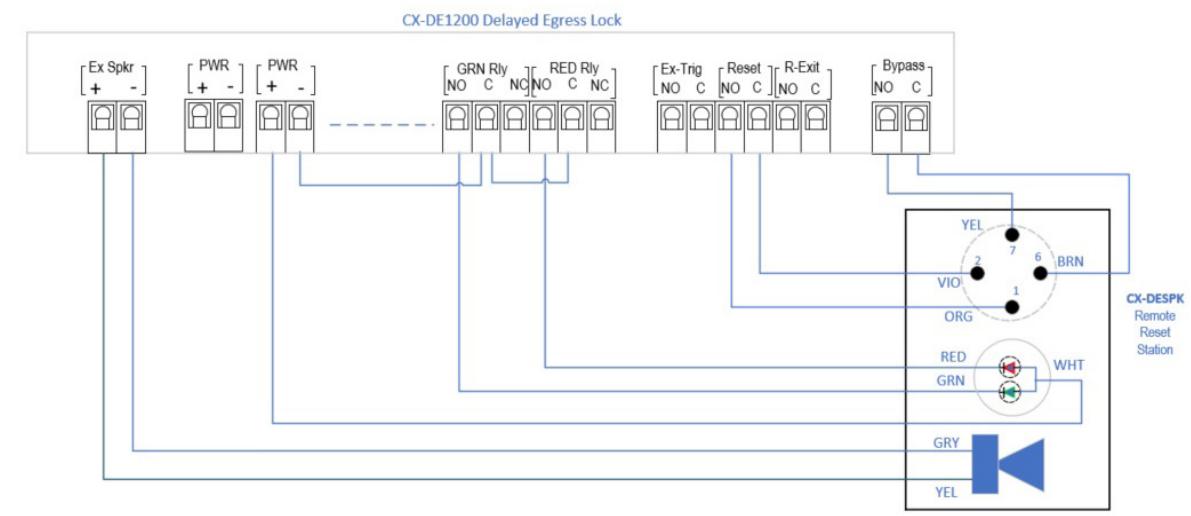

3. WIRING
| Device | Wire Color | Connection |
|---|---|---|
| RGB LED | Red | + 12 VDC |
| Green | +12 VDC | |
| Black | Negative | |
| Speaker | Red | + audio |
| Black | - audio | |
| Key Switch | Yellow | Normally Open |
| White | Common | |
| Blue | Normally Closed |

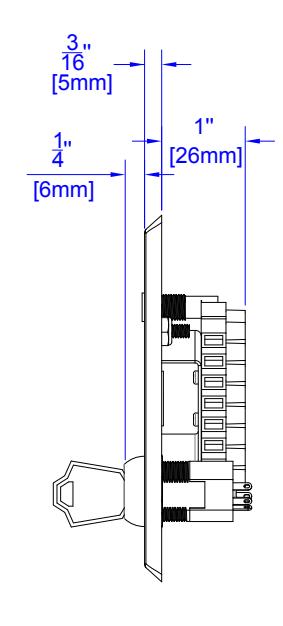

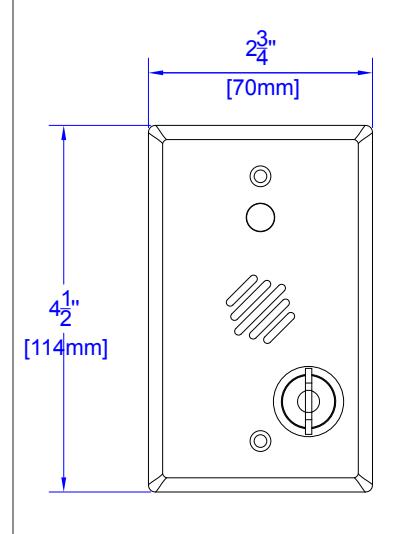

4. FRONT AND SIDE VIEW - CX-DESPK
CX-DESPK is supplied with a stainless-steel faceplate that can be easily mounted to a single gang electrical box. Only 9/18" depth is required!

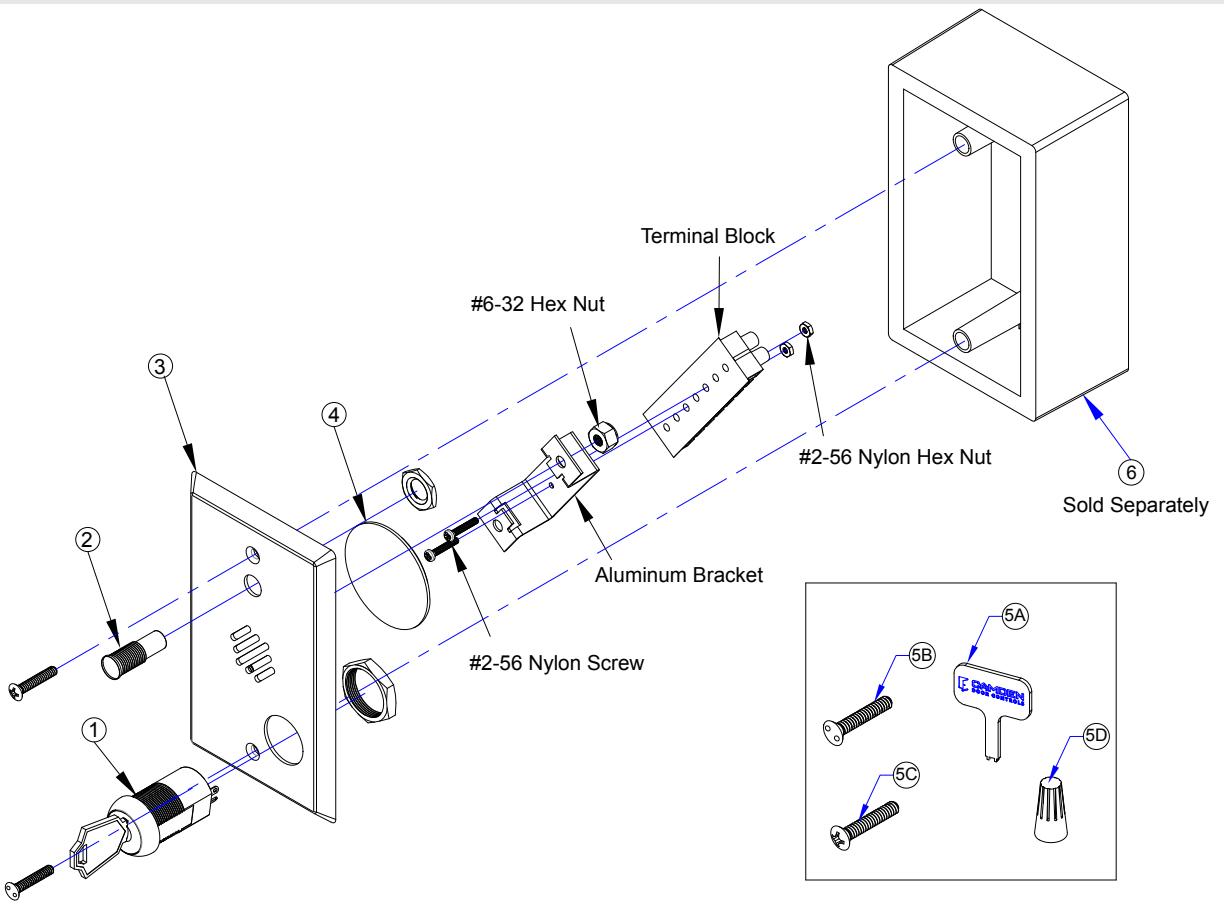

5. PARTS INFORMATION
| MODEL NUMBERS | ||||
|---|---|---|---|---|
| ITEM NUMBER | MODEL NUMBER | QTY | DESCRIPTION | |
| 1 | 60-68G005 | 1 | RESET KEY SWITCH | |
| 2 | 60-73C019 | 1 | 12 VOLT TRI COLOR LED | |
| 3 | 60-49H037 | 1 | STAINLESS STEEL SINGLE GANG FACEPLATE | |
| 4 | 60-64B000 | 1 | 8-OHM, 1.5 WATTS SPEAKER | |
| PARTS KIT | ||||
| ITEM NUMBER | PART NUMBER | QTY | DESCRIPTION | |
| 5. | 60-34B074 | 1 |
(A) KEY FOR TAMPER PROOF SCREWS (SNAKE EYE) W/CAMDEN LOGO
(B) SNAKE EYE TAMPER PROOF SCREW 6-32 X 3/4" (C) 6-32 X 3/4 PHIL OVAL HD S/S SCREW (D) GREY PLASTIC WIRE NUT C/W SPRING |
|
| COMPATIBLE MOUNTING BOXES | ||||
| ITEM NUMBER | PART NUMBER | DESCRIPTION | ||
| CM-34D |
SURFACE MOUNT BOX WITH EXTRA DEPTH HEAVY DUTY GREY POLYMER
4 1/2''H X 2 3/4''W X 1 3/4''D [114MM X 70MM X 44MM] |
|||
| 6. | CM-34BL | SINGLE GANG BLACK ABS BOX, SURFACE MOUNT 4 5/8"H X 2 7/8" W X 1 3/4"D (117MM X 73MM X 44MM | ||
| CM-34AL |
SURFACE MOUNT BOX WITH STANDARD DEPTH AND THREADED CONDUIT ENTRY. HEAVY DUTY CAST ALUMI
NUM 2-3/4"H X 4-1/2"W X 1-3/4"D [70MM X 144MM X 44MM] |
|||
