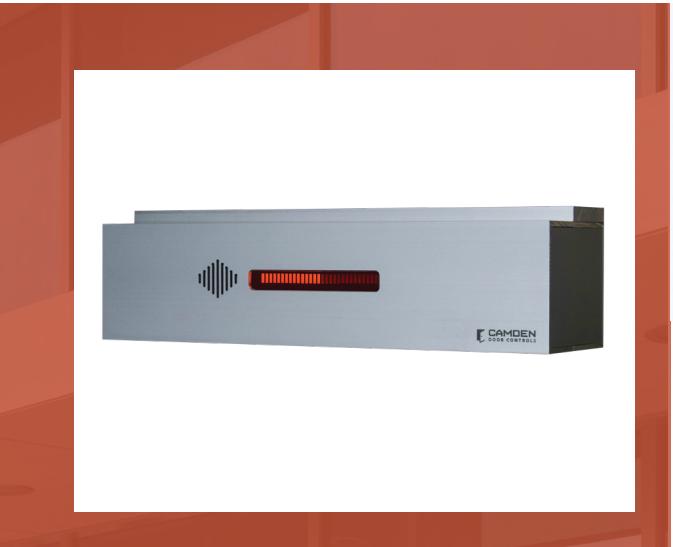

CX-DE1200 Series Delayed Egress Magnetic Lock
CX-DE1200 Series Single and Double Door delayed egress magnetic locks are designed to provide the best performance and value in healthcare, childcare, retail, and institutional applications.
The innovative human voice and LED count down timer offers immediate comprehension of status for building occupants. These rugged locks are available in a range of models, with factory default operation, to meet NFPA, BOCA and local AHJ requirements.
Features
- • Single and double door models
- • Nuisance Delay period 1, 2 or 3 seconds
- • Voice annunciator & progressive LED count-down timer
-
• Choice of sensor activation:
- Door Motion
- Door Exit Device with momentary N/O contact
- Push Bar with momentary N/O contact
- • Auto / manual start-up on power restore
- • Vandal Resistant proximity trigger sensor
- • Auto sensing power input with polarity protection
- • Anti-Pass back / Auto Re-Lock
- • Accessories: sounder, speaker and reset station
SPECIFICATIONS
VOLTAGE: 12/ 24 VDC +/_ 10% (Auto Sensing)
CURRENT DRAW: 600mA / 350mA DPS RATING: 30 VDC, 0.1A (max.)
ATS RATING: 30 VAC / 42.4 VDC, 5A (Max.) LOCK STATUS RELAY RATING: 30 VDC, 2A (Max.) ALARM OUTPUT RATING: 30 VDC, 2A (Max.)
BOND SENSOR RATING: CX-DE1200: 30 VDC, 2A (Max.) HOLDING FORCE: Up to 1,200 lbs. (544 kg.)
TEMPERATURE RANGE: 32°F - 131°F (0°C to 55°C)
DIMENSIONS:

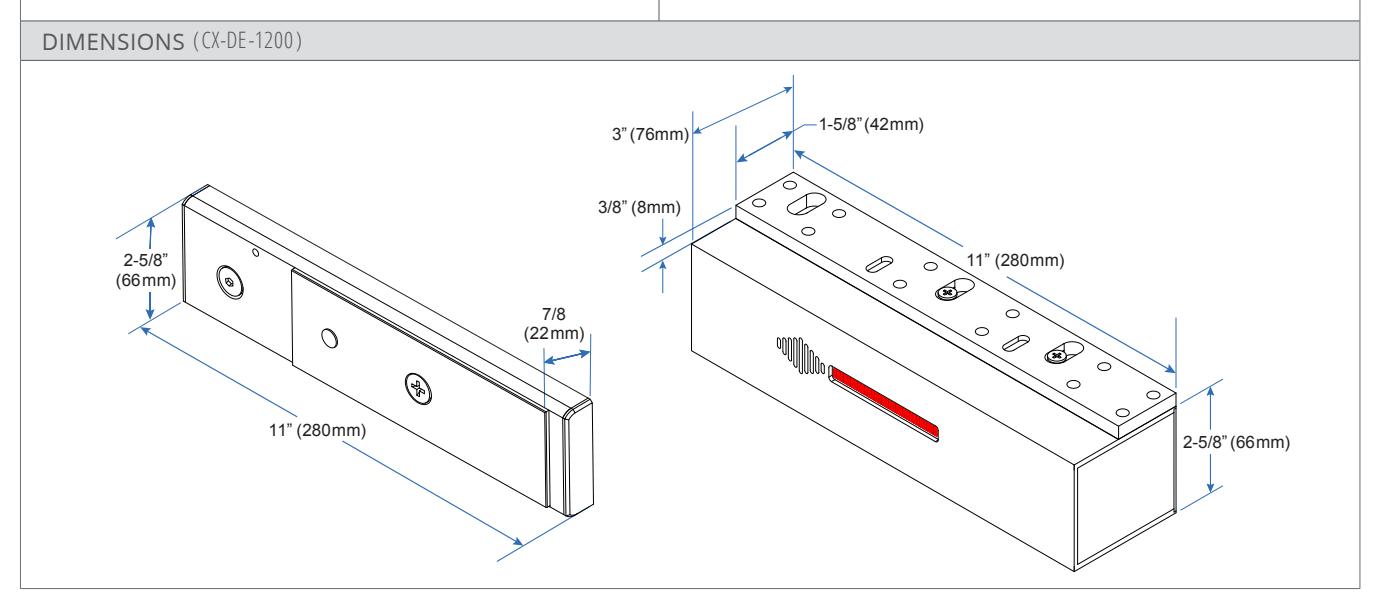

ARMATURE PLATE : 2-5/8"H x 11"W x 1"D (68mm x 280mm x 25mm) LOCK : 3"H x 11"W x 3"D (76mm x 280mm x 76mm)
| MODELS | DELAY RELEASE TIME (SECONDS) | NUISANCE DELAY (SECONDS) | RESET AFTER ALARM | LOCK STATUS ON POWER-UP | ||||
|---|---|---|---|---|---|---|---|---|
| FIXED | SELECTABLE | FIXED | SELECTABLE | FIXED | SELECTABLE | FIXED | SELECTABLE | |
| CX-DE1200/1220-N1 | 15 or 30 | 1 or 2 | Manual | Locked / Unlocked | ||||
| CX-DE1200/1220-N2 | 15 | 0 or 1 | Manual | Locked / Unlocked | ||||
| CX-DE1200/1220-N3 | 30 | 0 or 1 | Manual | Locked / Unlocked | ||||
| CX-DE1200/1220-N4 | 15 | 0 or 1 | Manual | Unlocked | ||||
| CX-DE1200/1220-B1 | 15 | 0 or 3 | Auto / Manual | Locked / Unlocked | ||||
| CX-DE1200/1220-B2 | 30 | 0 or 3 | Auto / Manual | Locked / Unlocked | ||||
| CX-DE1200/1220-B3 | 15 | 0 | Auto / Manual | Locked / Unlocked | ||||
|
N# = NFPA COMPLIANCE
B # = BOCA COMPLIANCE |
||||||||
Local Approval: Installations must be approved by the Authority Having Jurisdiction (AHJ). Select the operational mode that meets your application and AHJ approval.
ORDERING INFORMATION
Delayed Egress Maglocks (4 wall signs included. See page 4)
CX-DE1200
Single Door Models:
CX-DE1200-N1, CX-DE1200-N2, CX-DE1200-N3, CX-DE1200-N4, CX-DE1200-B1, CX-DE1200-B2, CX-DE1200-B3
CX-DE1220
Double Door (Single & Tandem)
Models:
CX-DE1220-N1, CX-DE1220-N2, CX-DE1220-N3, CX-DE1220-N4,
CX-DE1220-B1, CX-DE1220-B2, CX-DE1220-B3

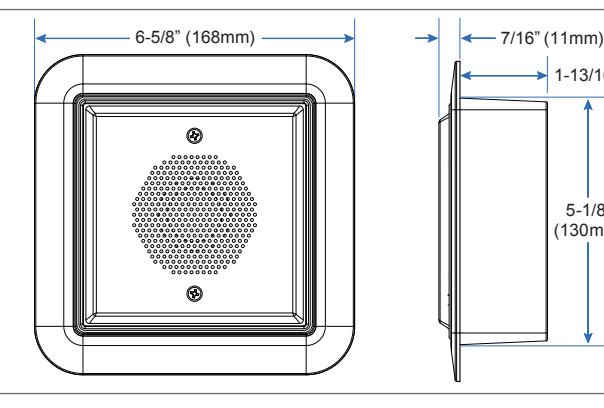

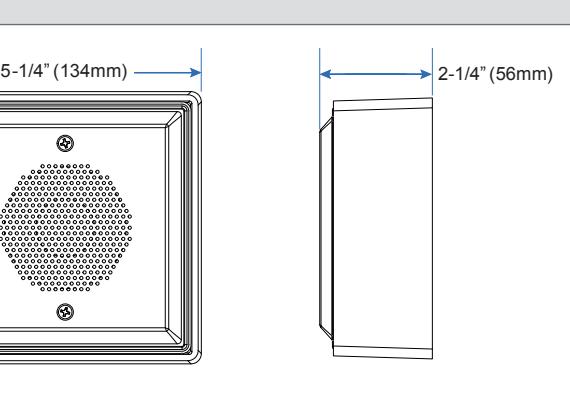

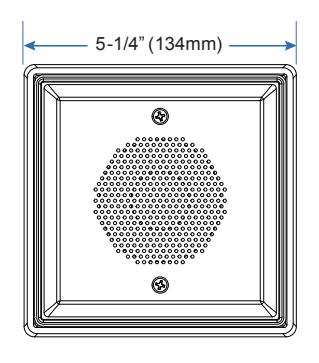

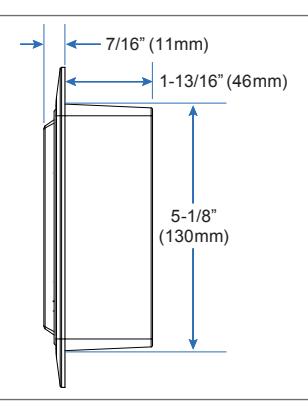

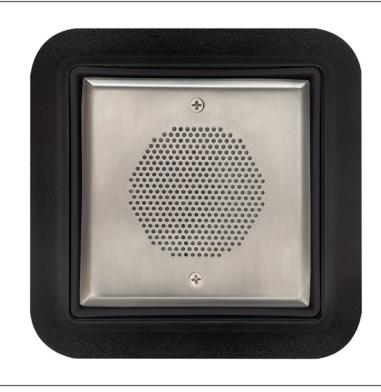

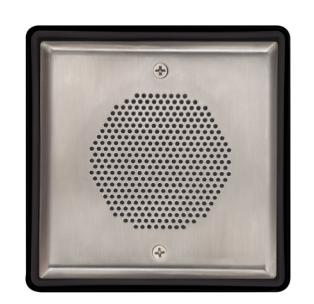

ORDERING INFORMATION Mounting Accessories CX-DE1214-38 3/8" Filler Plate CX-DE1214-58 5/8" Filler Plate CX-DE1215 1" x 1-1/2" Angle Bracket CX-DE1216 1-1/2" x 1-1/2" Angle Bracket CX-DE1217 2" Angle Bracket System Accessories CX-DE-502SO Remote Annunciator for both audio & visual distinction The stainless steel faceplate has a piezo and tri-colour LED CX-DESPK Remote Speaker Station for both audio & visual distinction 3 LED color states and 8-ohm speaker for remote messaging CX-DESPK15-54i External 15-watt Audio Speaker Station Surface Mount Optional Aura™ PCB feature displays 3 colors for designated states CX-DESPK15-55i External 15-watt Audio Speaker Station Flush Mount Optional Aura™ PCB feature displays 3 colors 6-5/8" (168mm) 7/16" (11mm) 5-1/8" (130mm) 1-13/16"(46mm) 1"(25mm) 1/4"(6mm) 3/16"(5mm) 2-3/4"(70mm) 4-1/2" (114mm) 2-3/4"(70mm) 4-1/2" (114mm) 1" (25mm) 1/4" (6mm) 1/4"(6mm) 5-1/4" (134mm) 2-1/4"(56mm)
for designated states
ORDERING INFORMATION
System Accessories
CX-DESPK15SM
External 15-watt Audio Speaker Station
Surface Mount
CX-DESPK15FM
External 15-watt Audio Speaker Station
Flush Mount
Included with CX-DE1200 / CX-DE1220
4.5" x 13" (11cm x 32.8cm)
4 door signs with 15 or 30 second delay options
PUSH UNTIL ALARM SOUNDS. DOOR CAN BE OPENED IN 15 SECONDS.
PUSH UNTIL ALARM SOUNDS. DOOR CAN BE OPENED IN 30 SECONDS.
KEEP PUSHING. THIS DOOR WILL OPEN IN 15 SECONDS. ALARM WILL SOUND.
KEEP PUSHING. THIS DOOR WILL OPEN IN 30 SECONDS. ALARM WILL SOUND.
60-57A027
Delayed Egress Sign 12" x 12" (30.5 cm x 30.5 cm)
Raised lettering and braille written language for the visually impaired.
