CX-DA100, CX-DA200 & CX-DA300 Door Prop Alarm

Installation Instructions

CX-DA100 CX-DA200

CX-DA300

Operation:

• Provides a unique solution for the security issue of propped/held open doors.
• This unit will be typically mounted near the monitored door.
• When the door is held open beyond the set Alarm Time (0-60 seconds) the local audible alarm sounds and Alarm Relay changes state, to alert that the door should be closed.
• Loss of power is indicated by the Alarm Relay.
• When closed, the alarm will silence.

Specifications:

• Voltage: CX-DA100: 12 - 24 VDC

CX-DA-200/300: 12/24V AC/DC

• Current Draw: CX-DA100: 18 mA

CX-DA-200/300: 70mA • Input: CX-DA200/300: (1) N/C

• Output: CX-DA200/300: (1) N/C SPST • Contact Rating: CX-DA200/300: 500 mA @ 30 VDC

• Sounder: CX-DA100: 95 db. CX-DA-200/300: 80 db.

• CX-DA100/200: Fits Single Gang 2.5" Depth Back Box

• CX-DA300: Fits Double Gang 2.5" Depth Back Box

(not included)

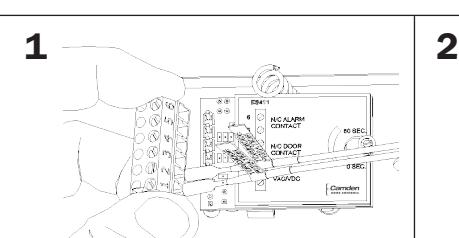

• Remove Terminal Block for easy wiring access

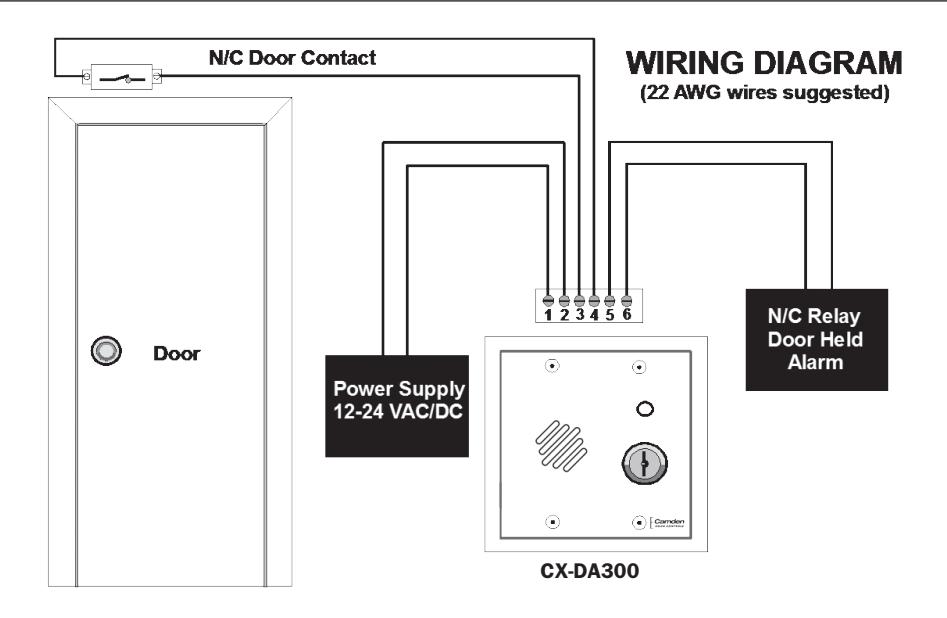

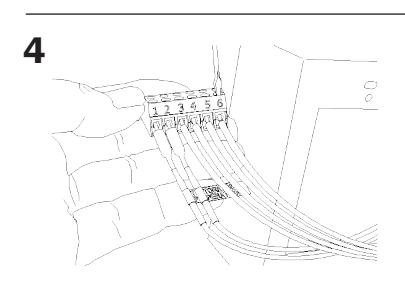

• Connect N/C Door Contact to terminals 3 & 4

• Connect remote Alarm monitoring equipment to terminals 5 & 6

• Connect 24 VAC/DC to leads with diodes
• Not polarity sensitive
• Crimp Connectors included

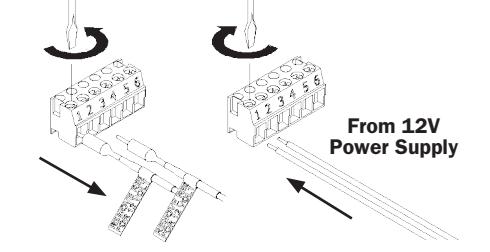

• For 12 VAC/DC operation, remove Diode leads from terminal block and connect 12V wiring to screw terminals 1 & 2

• Set Alarm Delay Timer (0-60 Sec.)

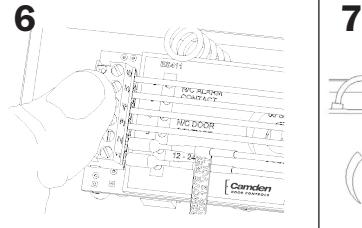

• Reinstall Terminal Block • Attach Grounding wire

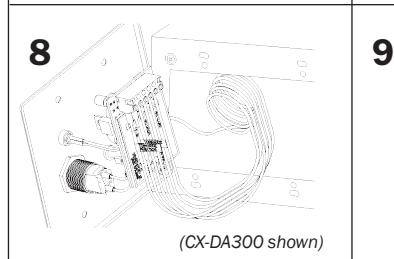

• Install into back box

• Use included screws to secure plate
• Test unit for proper operation

CX-DA100, CX-DA200 and 300 Door Prop Alarm Installation Instructions

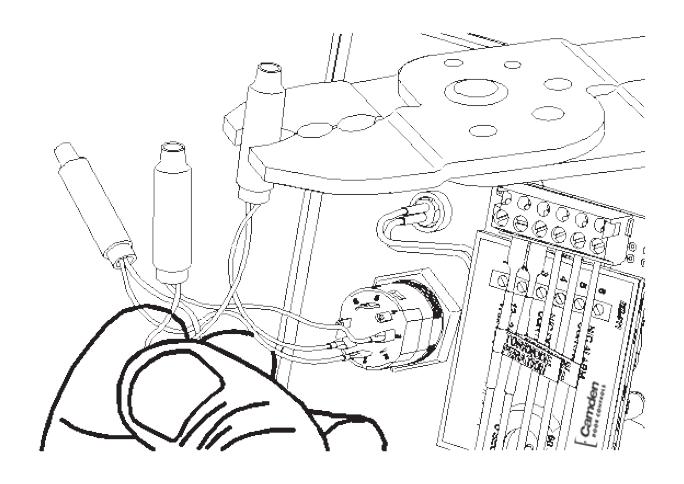

CX-DA300 Key Switch

Key Switches are prewired to Bypass the unit and light the LED when turned OFF.
