CX-92 Series Spec Sheet

Open the original PDF document

CX-92 Series 600 lbs. & 1200 lbs. Double Door Magnetic Locks

UL 1034 / UL 294 Standard for Burglary-Resistant Electric Locking Mechanisms

ULC S533-15 Standard for Access and Egress

CX-92 Series 600 lbs. & 1200 lbs. Double Door Magnetic Locks offer the best performance and value.

A 'TDS' option provides an adjustable timer, lock sensor, door status switch, relay and LED.

Camden's Magnetic Locks are easily installed. A metal mounting template is packaged with the unit.

Vandal resistant construction is built to last - lifetime warranty!

• Weather and vandal resistant construction proven over thousands of installations
• Compatible with all access / egress systems
• Field selectable 12/24 VDC operation
• On board MOV power surge protection prevents damage to the magnetic lock
• A range of mounting brackets and spacers available

VOLTAGE: 480mA @ 12 VDC, 240mA @ 24 VDC

CURRENT DRAW: CX-92S-06: 480mA/12 VDC | 240mA/24 VDC x 2

TDS: 510mA/12 VDC | 285mA/24 VDC x 2

CX-92S-12: 420mA/12 VDC | 210mA/24 VDC x 2 TDS: 500mA/12VDC | 265mA/24VDC x 2

CONTACT RATING: TDS models only:

Bond Sensor: 2A @ 24 VDC

Door Status Switch: 0.5A @ 28V AC/DC

HOLDING FORCE: CX-91S-06:600 LBS. (272 KG.) | CX-91S-12:1200 LBS. (544 KG.)

TEMP. RANGE: 32°F - 131°F (0°C to 55°C)

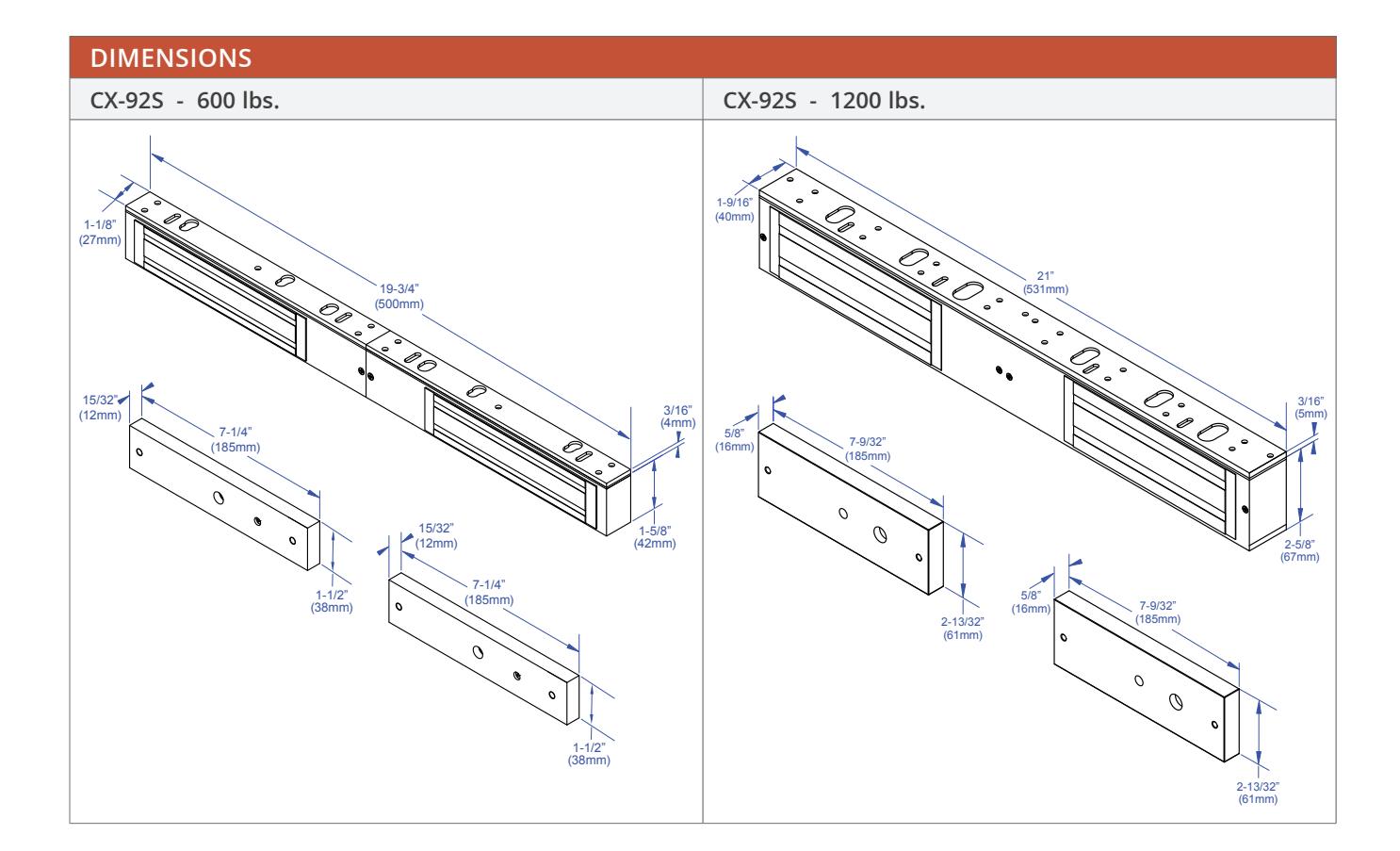

DIMENSIONS: Body:

CX-92S-06: 19-3/4"W x 1-5/8"H x 1-1/8"D

(500mm x 42mm x 27mm)

CX-92S-12: 21"W x 2-5/8"H x 1-9/16"D

(532mm x 67mm x 40mm)

Armature Plate:

CX-92S-06: 2 x 7-1/4"W x 1-1/2"H x 15/32"D

2 x (185mm x 38mm x 12mm)

CX-92S-12: 2 x 7-9/32"W x 3"H x 5/8"D

2 x (185mm x 61mm x 16.5mm)

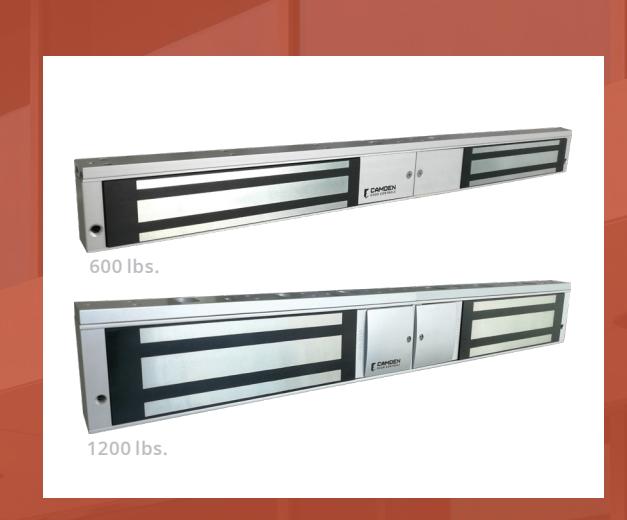

CX-92S-06 600 lbs Surface Mount Double Door - Basic

CX-92S-06TDS 600 lbs. Surface Mount Double Door -

with adjustable timer, door status switch,

lock sensor, relay and LED

CX-92S-12 1200 lbs. Surface Mount Double Door - Basic

CX-92S-12TDS 1200 lbs. Surface Mount Double Door -

with adjustable timer, door status switch,

lock sensor, relay and LED
