CX-90 Series Spec Sheet

CX-90 Series 300 lbs. Single Door Magnetic Locks

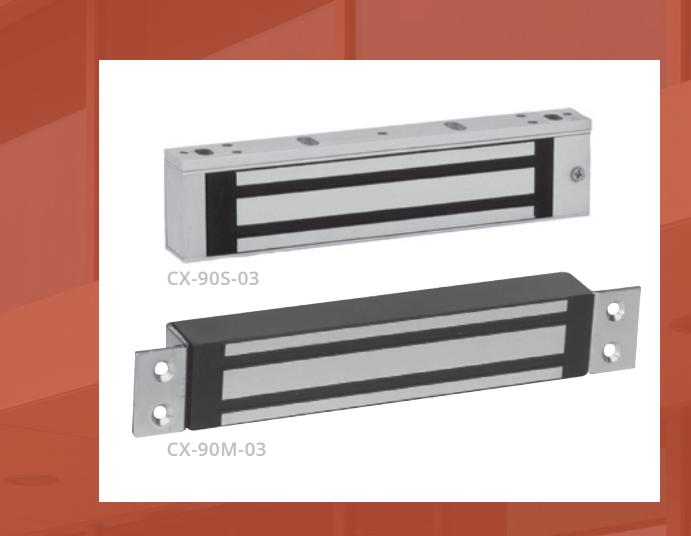

CX-90S-03 & CX-90M-03 300lb. Single Door Surface and Mortise Mount Magnetic Locks offer the best performance and value.

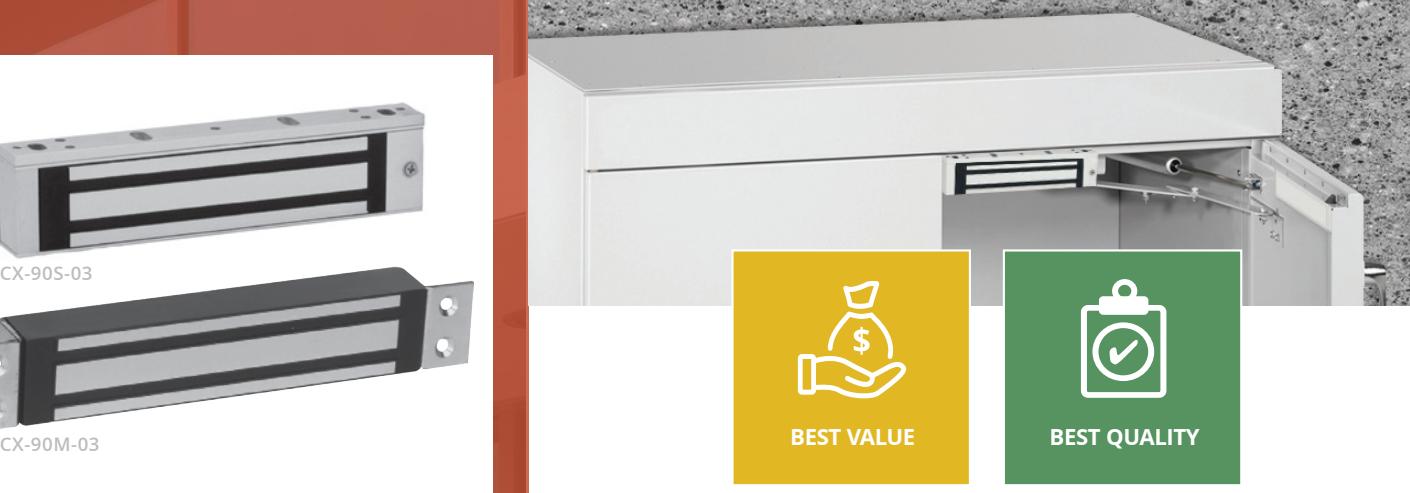

CX-90 Series magnetic locks are compact and ideal for securing cabinets, gates and other security applications where a larger magnetic lock is not practical or desired.

Camden 300 lbs. magnetic locks feature heavy duty all-metal construction with easy installation.

Features

• • Low profile design ideal for small enclosures
• • Surface and mortise mount models
• • Compatible with all access / egress systems
• • Field selectable 12/24 VDC operation
• • On board MOV power surge protection prevents damage to the magnetic lock

SPECIFICATIONS

VOLTAGE: 12/24 VDC

CURRENT DRAW: 360mA / 12 VDC | 180mA / 24 VDC

HOLDING FORCE: 300 LBS. (136 KG.)

TEMP. RANGE: 32°F - 131°F (0°C to 55°C)

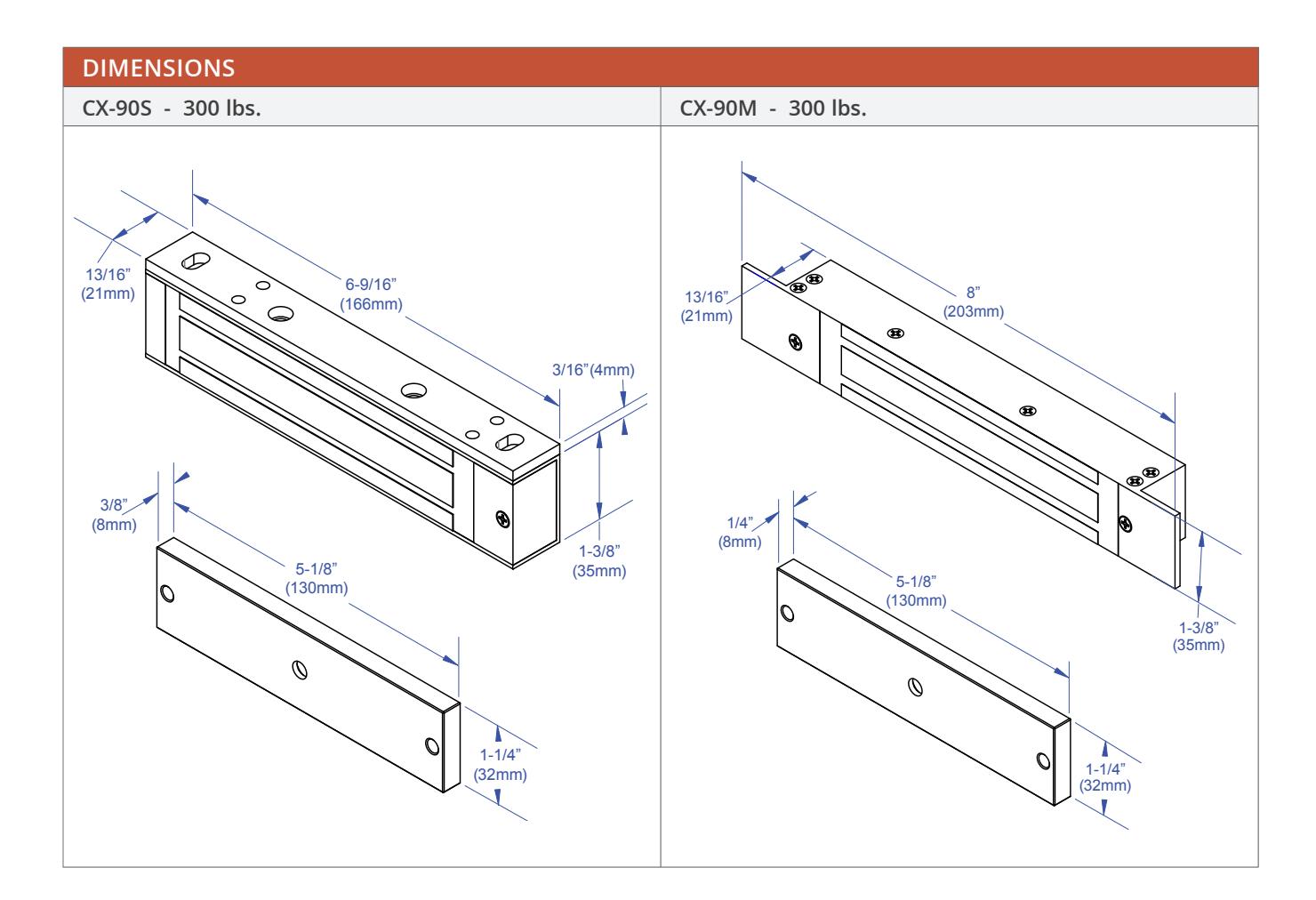

BODY DIMENSIONS: CX-90S-03: 6-9/16"W x 1-3/8"H x 13/16"D (166mm x 35mm x 21mm)

CX-90M-03: 8"W x 1-3/8"H x 13/16"D (203mm x 35mm x 21mm)

Armature Plate: 5-1/8"W x 1-1/4"H x 1/4"D (8mm x 32mm x 6mm)

ORDERING INFORMATION

CX-90S-03 300 lbs. Surface Mount Single Door CX-90M-03 300 lbs. Mortise Mount Single Door
