CX-33PS Door Control & Power Supply

CX-33 Advanced Logic Relay is now available in pre-wired power supply cabinet!

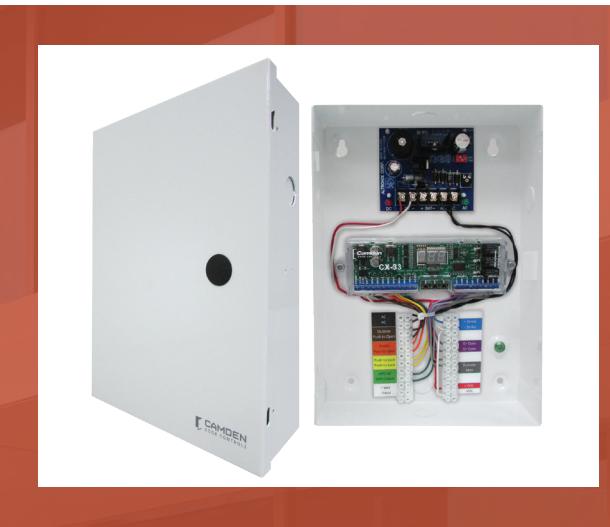

Camden CX-33PS control and power supply cabinet is designed to provide the easiest installation, with pre-wired system components, large color coded wiring terminals, and a compact metal cabinet, with option for a lock. The UL listed 2 Amp power supply is able to supply power to controls and annunciators, as well as, electrified locking devices. A class II transformer is also provided.

CX-33PS control and power supply cabinets provide a code compliant solution for any door control application and are pre-configured when purchased as part of Camden restroom control and emergency call system kits.

Features

• Complies with ANSI A158.19 for Power Operated Pedestrian doors.

EASIER INSTALLATION

• • 12V or 24V DC selectable power supply module.
• • Short circuit and thermal overload protection.
• • Visual LED indicator for easy diagnosing
• • 15 Operating modes selected using 3 simple pushbuttons.
• • Enhanced security features include; Lock down mode and delayed relay activation.
• • Three large, blue 8-segment LED displays for easy programming and configuration.
• • Five convenient conduit knockouts; one per side.
• • Pre-punched cam lock provision (Cam lock set ordered separately.)
• • 3 year warranty

ADVANCED TECHNOLOGY

TERMINALS

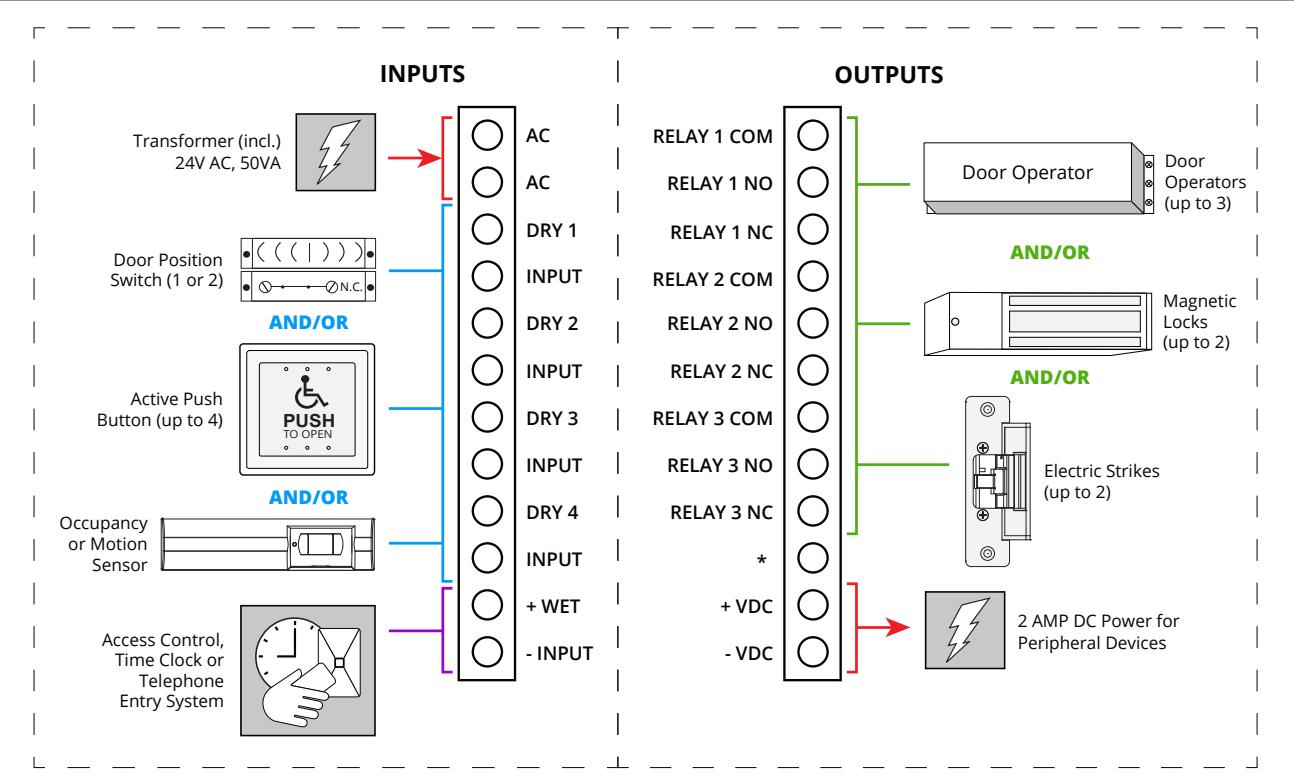

Refer to CX-33 Advanced Logic Relay specification sheet for more Controller information. Refer to CX-WC Series specification sheet for more Barrier Free Restroom Control System information.

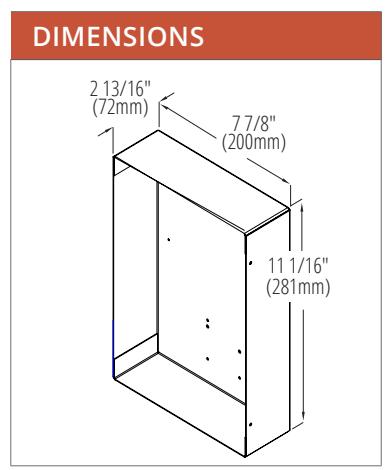

SPECIFICATIONS AC INPUT: 12V to 28V INPUTS: (4) Dry (1) Wet 5V to 120V AC/DC, DC OUTPUT: 12V or 24V DC Non Polarity Optically Isolated CURRENT: 2 Amps OUTPUTS: (3) Form 'C' (SPDT), 3 Amps @ 24V DC BATTERY BACKUP: Gel Type Battery TIME DELAY: Hold 1 Timer: 0 to 50 seconds LED INDICATOR: AC and DC Output Delay 1 Timer: 0 to 15 seconds Hold 2 Timer: 0 to 50 seconds TEMPERATURE: 40°F to 158°F Delay 2 Timer: 0 to 60 seconds (-40°C to 70°C) Hold 3 Timer: 0 to 50 seconds Delay on Activate: 0 to 10 seconds DIMENSIONS: 77/8" W x 11 1/16" H x 2 13/16" D (200mm x 281mm x 72mm)

ORDERING INFORMATION

Door Control Power Supply

CX-33PS

Advanced Logic Relay, 2 Amp, Power Supply Cabinet and Transformer A complete kit for any timed door application which includes a metal cabinet, power supply, a CX-33 control relay, and a 120/24V AC Class II transformer.

'L' Add suffix 'L' to model number for Cabinet Lock
