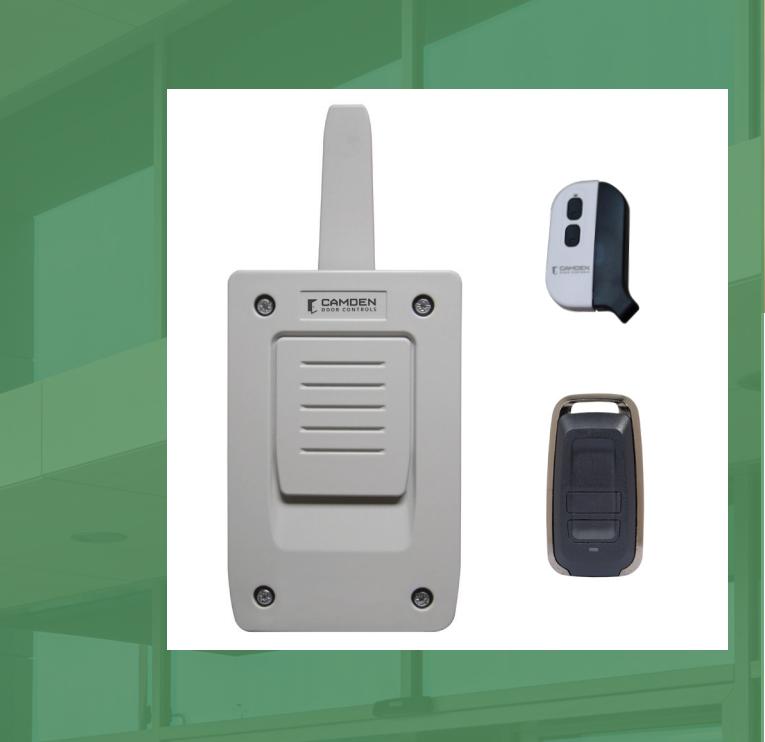

CV-WR Series Wiegand Receiver & Fobs

COMPLIANT

Camden's Wiegand receivers are designed to interface with existing access control systems for both long and short access applications.

Pressing one of the buttons, users can control a barrier gate or overhead door up to 300 ft. (100m) away. The same transmitter can be presented in front of a card reader and operate as a conventional access credential.

Identical 26-bit Wiegand ID numbers will be sent for either fob transmitters and for the enclosed credential for a card reader, to manage multiple users in the access control database.

One unique ID number per device per user simplifies the adding and deleting of credentials for property managers.

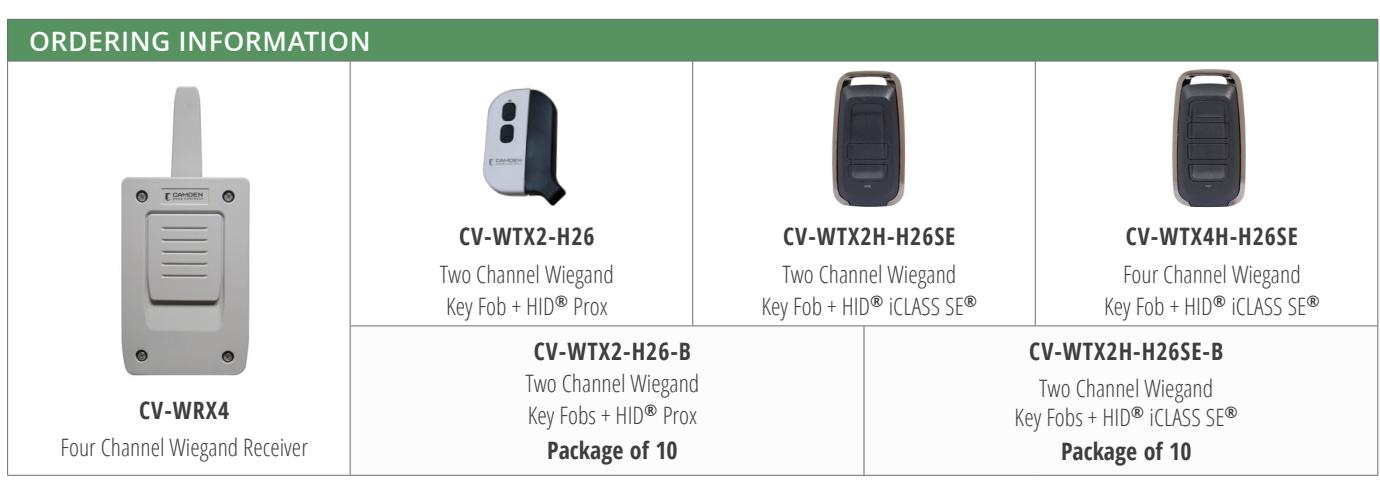

CV-WRX4 Receiver

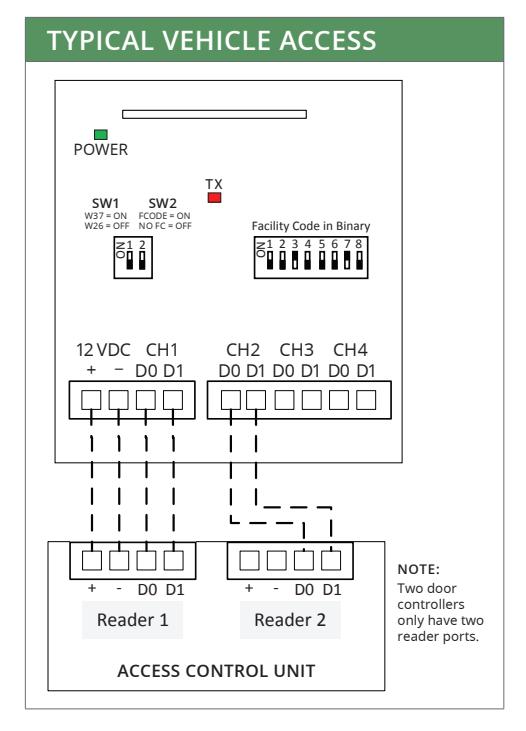

• • 4 channel receiver facilitates in/out control
• • Compatible to all access control panels, 26 bit Wiegand
• • Field selectable facility codes, 1 to 255
• • Weather and vandal resistant enclosure

CV-WTX2 Two Button Fob

• • Ultra Compact
• • 2 year battery life and low battery indication
• • Up to 300 feet (100 meter) range

CV-WTX2-H26 Two Button Fob

• • Ultra compact, dual technology design enable both presentation and long range transmission with idential ID#.
• • HID® 125 KHz. proximity protocol
• • 2 year battery life and low battery indication
• • Up to 300 feet (100 meter) range

CV-WTX2H-H26SE Two Button & CV-WTX4H-H26SE Four Button

• • Dual Technology HID®iClass SE® 13.56 MHz. to prevent cloning
• • Laser etched ID numbers
• • 300 feet (100 meter) range
• • LED indicator for low battery and signal transmission
• • Durable, weather resistant case with metal key ring

All transmitters use a 868Mhz. high security rolling code, 19 trillion combinations.

SPECIFICATIONS

INPUT VOLTAGE: CV-WRX4: 12 VDC

All Transmitters: 3 VDC, CR2032 Type

CURRENT: CV-WRX4: 14 mA typical / 36 mA peak

All Transmitters: 12mA

OPERATING TEMPERATURE: CV-WRX4: -4°F to 185°F (-20°C to 85°C)

All Transmitters: -4°F to 131°F (-20°C to 55°C)

868.35 Mhz. FREQUENCY:

IP RATING: CV-WRX4: IP54 (IP65 with cable plug installed)

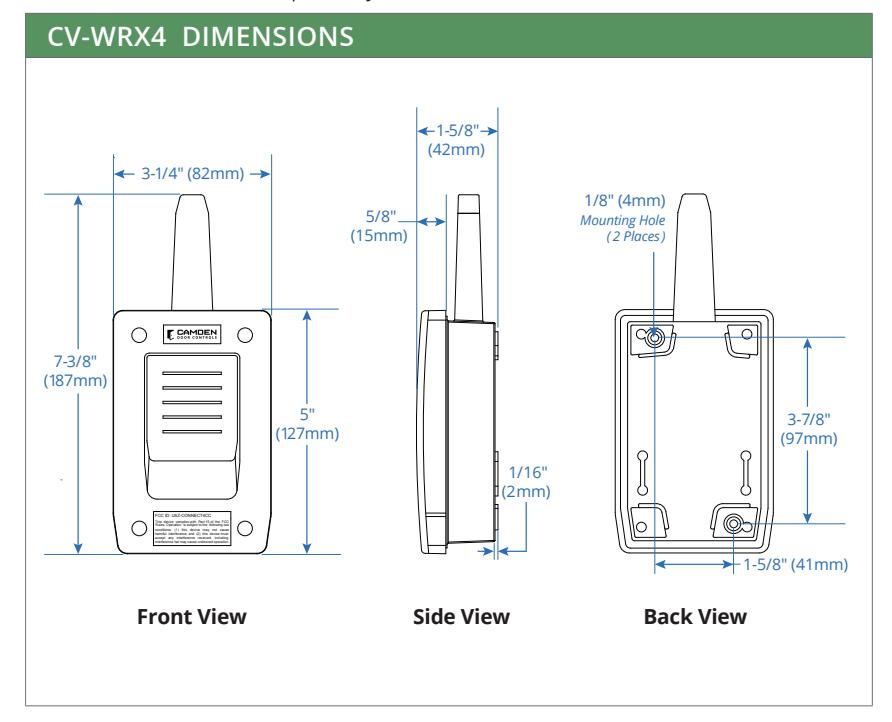

DIMENSIONS: CV-WRX4: 3-1/4"W x 7-3/8"H x 1-5/8"D

(82mm x 187mm x 42mm)

CV-WTX2: 1-3/16"W x 2-1/8"H x 3/8"D (30mm x 54mm x 10mm)

1-3/16"W x 2-1/8"H x 3/8" D

CV-WTX2-H26:

(30mm x 54mm x 10mm)

CV-WTX2H-H26SE: 1-1/2"W x 2-1/2"H x 1/2"D

(36mm x 68mm x 14mm)

CV-WTX4H-H26SE: 1-1/2"W x 2-1/2"H x 1/2"D

(36mm x 68mm x 14mm)

^* Contact Camdenv for AWID proximity versions.
