View PDFCV-7600 Series - BLE UL 294 Compliant
CV-7600 Series mobile-ready readers combine Bluetooth Low Energy (BLE) and contactless smart card technologies. These readers interface with most electronic access control systems with either Wiegand or bi-directional OSDP, based on LEGIC® contactless RFID.

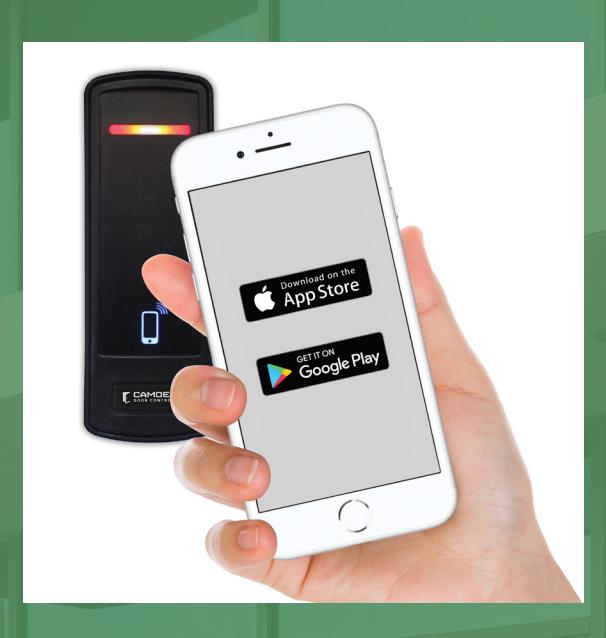

An easy download app turns any Android™ or Apple iOS™ smartphone into a secure mobile access control system credential, with data stored in a smartphone's wallet app via BLE technology.
CV-7600 readers are also compatible with traditional MIFARE credentials, including clamshell cards, ISO cards and key tags. This feature allows system managers the ability to assign the best/preferred type of credential for each system user.
Features
- • A range of Bluetooth readers, 1ft to 30ft read range
- • Compatible with all access control systems
- • Smartphone App, Android™ and Apple iOS™ compatible
- • MIFARE smart card/tag compatible
- • 26-bit Wiegand, ABA Track II magnetic strike (clock & data) and OSDP interface
- • IP67 water resistant
- • Narrow (jamb) width with option for single gang mounting plate, included
- • 3 year warranty
SPECIFICATIONS
INPUT VOLTAGE: 8 - 14 VDC
CURRENT: 40 mA typical @ 12VDC 195 mA peak FREQUENCY: 13.56 MHz (contactless smartcard)
2.4 GHz (BLE)
CABLING: 24 AWG minimum, multi-conductor stranded with foil shield
INTERFACE: Wiegand (26-bit formats), ABA Track II magnetic strike (clock & data) or OSDP
OPERATING TEMPERATURE: -40°F to 149°F (-40°C to 65°C) LED CONTROL: Blue, Red, Green, Amber and Off
READ RANGE: Cards/Tags: Up to 1.5" (38mm)
Mobile: CV-7600 - Up to 1 ft (30cm) CV-7605 - Up to 5 ft (1.5m) CV-7615 - Up to 15 ft (4.6m) CV-7630 - Up to 30 ft (9m)
AUDIO TONE: Beeper included
PROTECTION: IP67

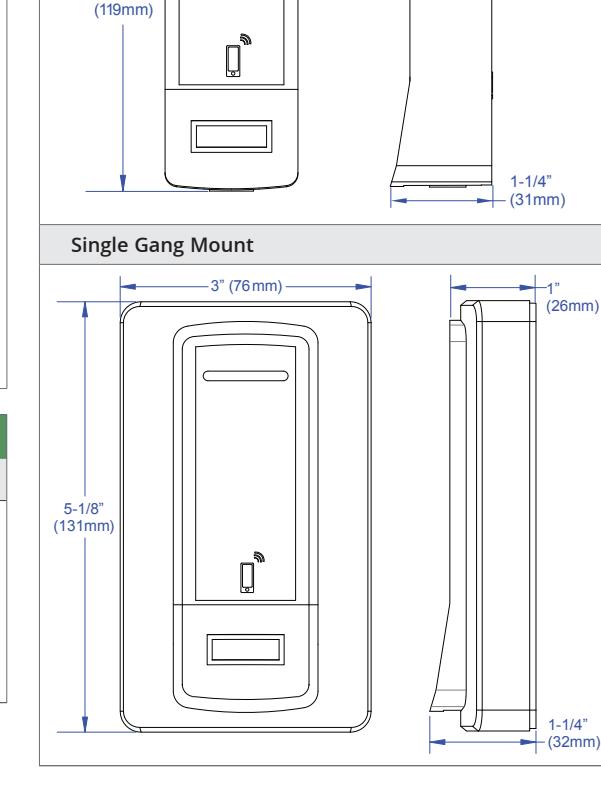

DIMENSIONS: Mullion: 1-3/4" W x 4-3/4" H x 1-3/16" D (44mm x 119mm x 30mm)
Single Gang: 3" W x 5-1/8" H x 1-3/16" D (76mm x 130mm x 30mm)
| ORDERING INFORMATION | |
|---|---|
| Bluetooth Reader | Credentials |
| CV-7600 1 foot range | |
| CV-7605 5 foot range | CV-MBT Smart Phone BLE Mobile Credentials |
| CV-7615 15 foot range | CV-MCS Clam Shell Cards |
| CV-7630 30 foot range | CV-MKT Key Fob, 2K Memory |
| NOTE: Range stated is for CV-MBT | |
1-3/4"(44mm) 1"
(25mm)
DIMENSIONS Mullion Mount
4-11/16"
