CV 7400 and 7820 Series Spec Sheet

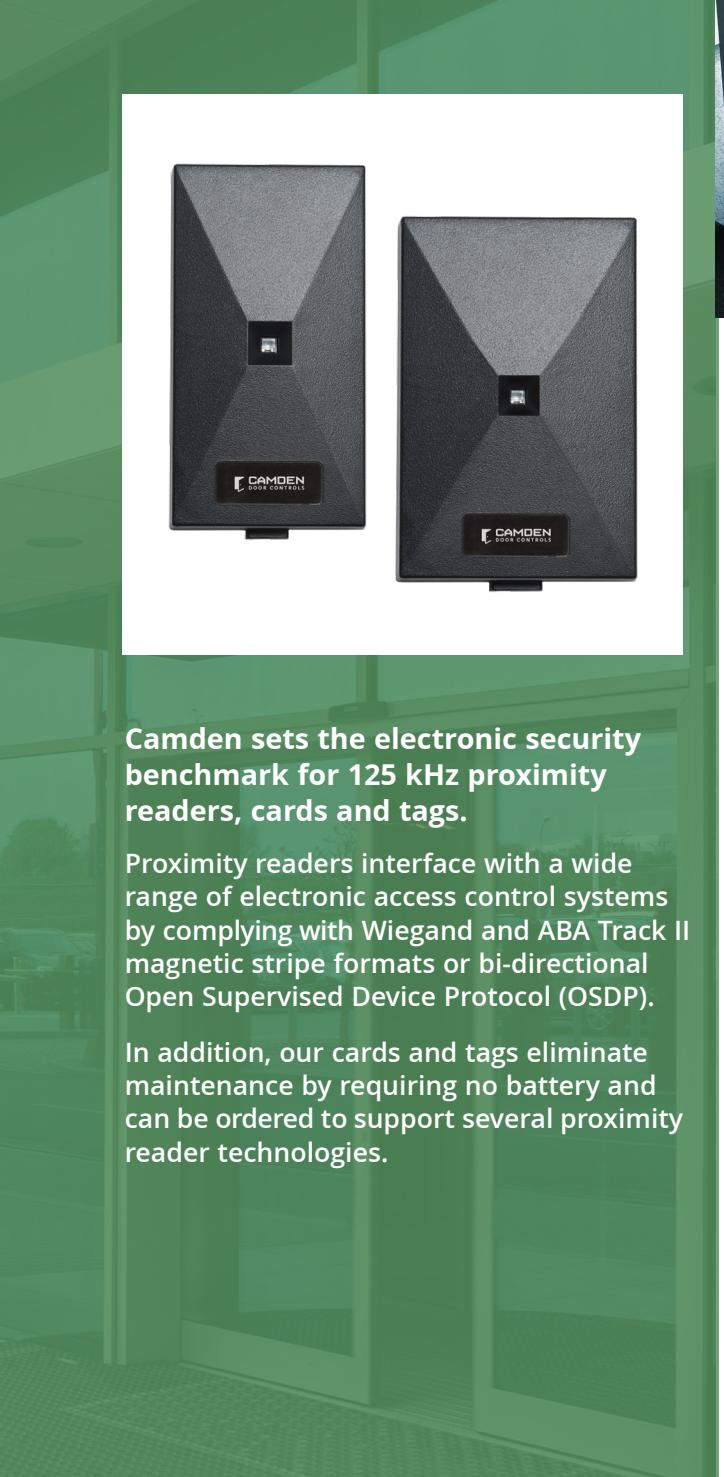

CV Series Proximity Readers and Credentials

Features

• • Mullion and single gang Wiegand reader models
• • IP67 rated weather and vandal resistant
• • 125 kHz proximity reader
• • Up to 8 inches (202 mm) read range
• • LED and audible confirmation
• • A range of HID 37 bit and AWID 34 bit compatible cards / tags available
• • 3 year warranty

SPECIFICATIONS

INPUT VOLTAGE: 5 - 16 VDC

CURRENT: CV-7400 30 mA typical, 75 mA peak @ 12 VDC

CV-7820 35 mA typical, 75 mA peak @ 12 VDC

FREQUENCY: 125 kHz

CABLING: 24 AWG minimum, multi-conductor stranded

with overall foil shield

INTERFACE: Wiegand, ABA Track II magnetic strike

(clock & data) or OSDP

OPERATING TEMPERATURE: -31°F to 150°F (-35°C to 66°C) OPERATING HUMIDITY: 0% to 90% relative humidity

LED CONTROL: Four-state standard (red, green, amber and off)

INSTALLATION: Electronics sealed in weather / tamper-resistant epoxy potting

MOUNTING: CV-7400 Mullions, including metal doors, window frames and flat surfaces

CV-7820 Metal or plastic single gang wall box and flat surfaces

READ RANGE: CV-7400 Up to 5" (126mm) | CV-7820 Up to 8" (202mm)

AUDIO TONE: Beeper included

PROTECTION: IP67

WEIGHT: CV-7400 3oz (85g) | CV-7820 4oz (113g)

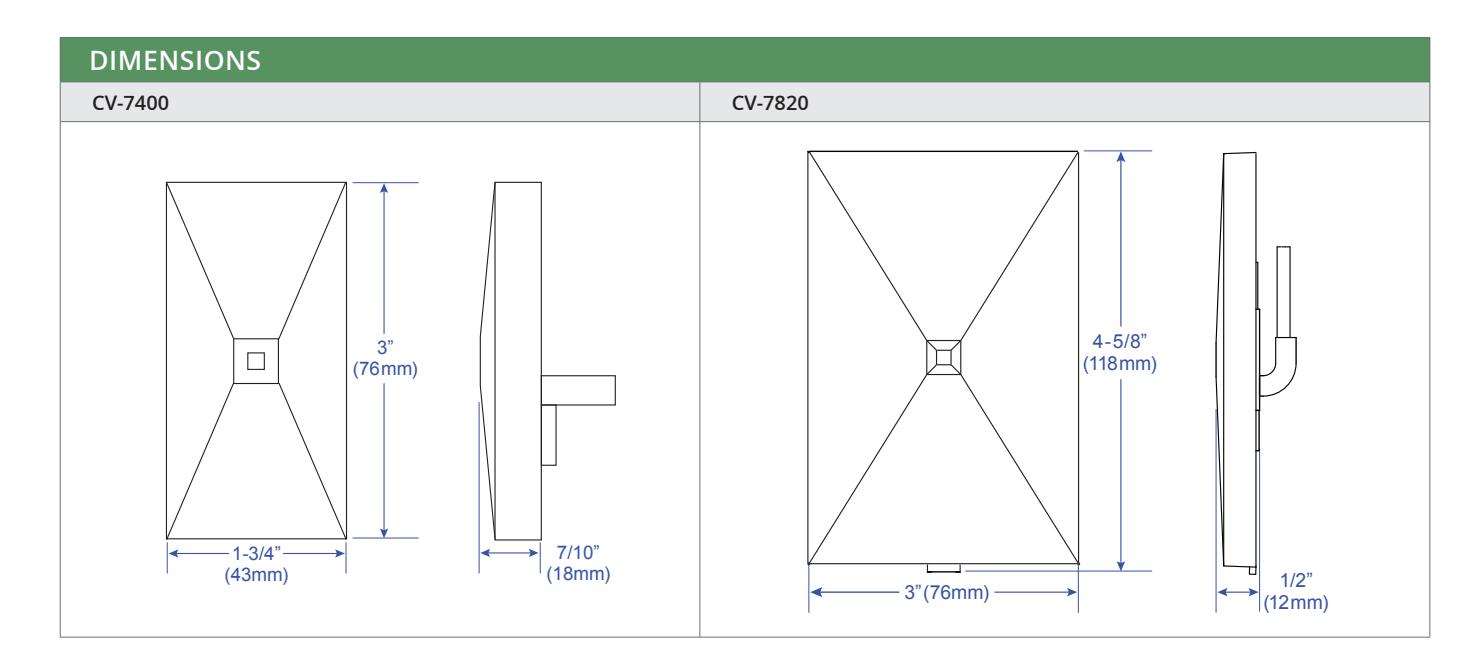

DIMENSIONS: CV-7400 1-3/4" W x 3-1/5" H x 7/10" D (43mm x 81mm x 18mm)

CV-7820 3" W x 4-3/5" H x 2/5" D (76mm x 117mm x 10mm)

ORDERING INFORMATION
Proximity Readers		HID Prox Cards & Key Tags		AWID Prox Cards & Key Tags
CV-7400	Narrow, compact, 4 - 5" read range	CV-ISH-B	HID ISO prox card, 10 pack HID ISO prox card, 100 pack	CV-CSA CV-CSA-B	AWID prox card, clam shell style, 10 pack AWID prox card, clam shell style, 10 pack
CV-7820	Single gang, up to 8" read range	CV-CSH-B	HID clam shell prox card, 10 pack HID clam shell prox card, 100 pack	CV-ISA CV-ISA-B	AWID ISO prox card, 10 pack AWID ISO prox card, 100 pack
		CV-KTH	HID prox key tag, 25 pack	CV-KTA	AWID format prox key tag, 25 pack
