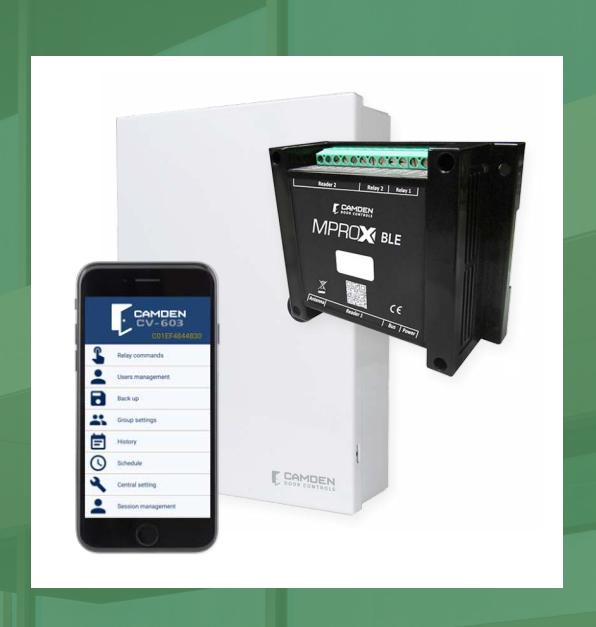

MProx-BLE™ : CV-603 Series 2 Door Bluetooth® Access Control System

CV-603 Series is an app-based wireless Bluetooth® managed access control system designed to provide maximum flexibility in small door and gate applications and comes ready to support each system user with the card, security FOB, or smartphone credential they want. The intuitive programming app is Apple® and Android® protocol, with easy to use system set-up, user administration, downloadable audit trail and data back-up. Now featuring optional Virtual Remote License Keys to support smartphone credentials.

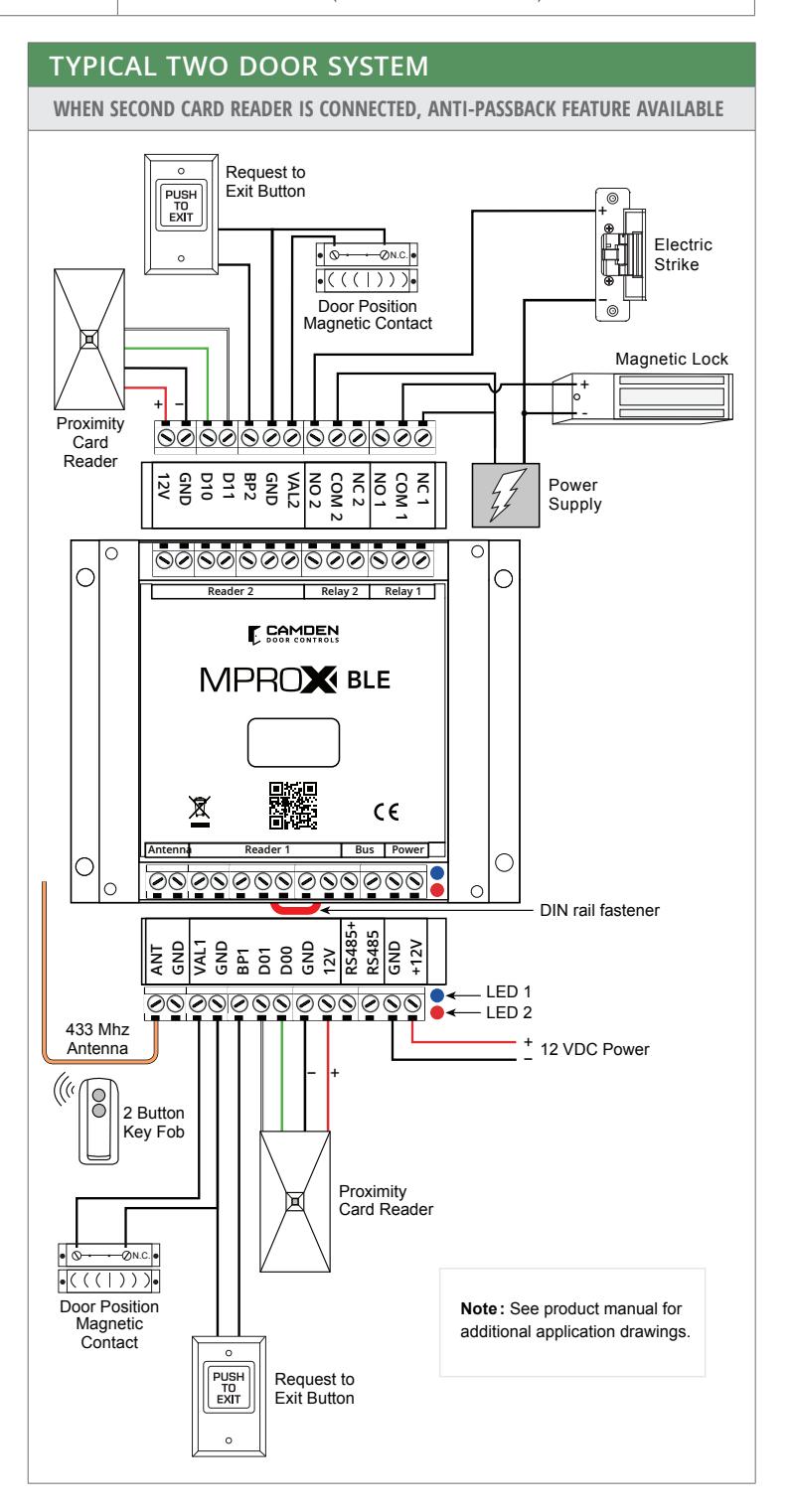

The CV-603 controller provides control for two doors, including inputs for readers, door position switch and REX device, and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications.

Features

• • Programmed via BLE Phone App
• • 2,000 User Capacity
• • Built-in Bluetooth® mobile credentials option
• • Wiegand Reader protocol – 26, 30, 34 and 37 bits

• • Common Alarm Relay Trigger remote devices
• • Anti-pass back Higher level of security
• • Sensor Input For door position switch or vehicle loop detector
• • Form C relays Fail-safe or Fail-secure electric locks
• • Built-in 433 MHz key fob receiver To be used with CX-TXM-2 two button transmitters
  • Encrypted rolling code and protected AES128 transmission of transmitters
• Operator Security Levels 5, configurable
• • 3 year warranty

SPECIFICATIONS

VOLTAGE: 12 VDC CURRENT DRAW: < 100 mA CONTACT RATING: 1A @ 12V AC/DC

WEIGHT: 7 oz. (200 g) READER INPUTS: 2 READER OUTPUTS: 2

RECEIVER FREQUENCY: 433 Mhz.

READER INPUT TYPES: Wiegand 26, 30, 34, 37 Bit

DIN RAIL MOUNT:

TEMPERATURE RANGE: -4°F to 131°F (-20°C to +55°C)

RELAY OUTPUT TYPES: Timed 1 - 180 seconds, Momentary, bi-stable / latch

CV-603 DIMENSIONS: 4-1/2" H x 3-1/2" W x 1-3/4" D (115mm x 90mm x 44mm)

USERS: 2000 EVENTS: 3000

MODELS CONTROLLERS Two door MProx BLE-Controller with CV-603 433 Mhz. receiver Cabinet with MProx-BLE controller. 12 VDC, 1.5 amp power supply CV-603PS (without battery back up) and 16 VAC,

40 VA transformer

CONTROLLER & READER KIT Cabinet with MProx-BLE controller. 12 VDC power supply, transformer, CV-603PS-K1 (1) CV-7400 AWID/HID protocol reader & (1) CV-KTH HID protocol proximity tag.

EXTENSION ANTENNA 433 Mhz. extension antenna for MProx-BLE Controller. CV-603EA 8 feet (2 meter) coaxial cable, 50 Ohm impedence. used to get beyond metal RF obstructions

WIRELESS KEY FOB
CV-TXM-2	2 Button, 433 Mhz. key fob for MProx BLE Controller
CV-TXM-2B	2 Button, 433 Mhz. key fobs, Package of 10

PROTOCOL READERS & CREDENTIALS (See Camden website for a complete selection of available readers & credentials)
CV-603VR10	10 Virtual Remote Licence Key
CV-603VR50	50 Virtual Remote Licence Key
CV-7400	Narrow compact HID/AWID protocol proximity reader, 4" - 5" range
CV-CSH	HID Format Clam Shell Proximity Card, Package of 10
CV-KTH	HID Format Proximity Tag, Package of 25
