• of outside mounting plate as the illustrating bellow

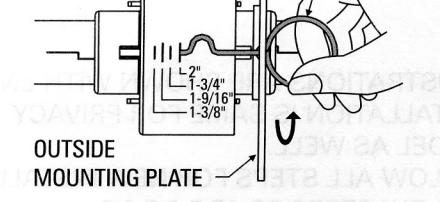

• c. Rotate outside mounting plate to required door thickness by using a catch tool.
• d. Reassemble exterior assembly.

8. REASSEMBLE EXTERIOR ASSEMBLY AND INSTALL

Install the inside rose liner, tab Aligning to the lever notch.

The tab of the rosette assembly is positioned on the opposite side of the lever catch, and align to the notch of the lever hole.

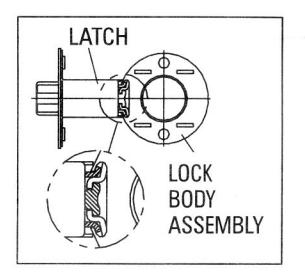

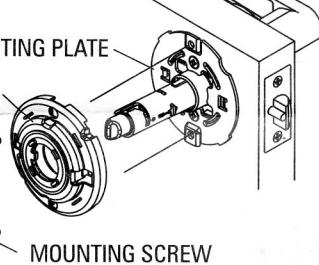

Repeat No. 6 to intall the removable Thru-Bolt. Install outside lever assembly on the door. Make sure tail of latch engaging with retractor correctly as illustration OUTSIDE LEVER

USTRATION OUTSIDE LEVER ASSEMBLY

9. INSTALL INSIDE MOUNTING PLATE AND ROSE LINER

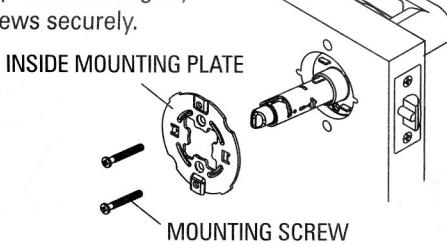

Place mounting plate on door face and turn up the lever slightly and tighten screws securely.

10. INSTALL INSIDE ROSE AND LEVER

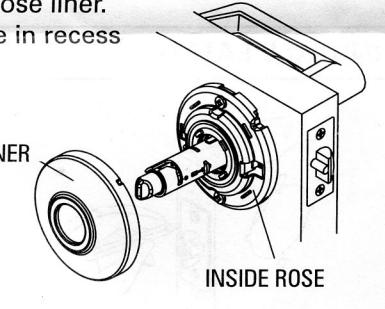

a. Press rose onto rose liner. Be sure to fit rose in recess of rose liner.

b. Place rose liner on mounting plate and tighten with screw securely.

INSIDE MOUNTING PLATE

INSIDE ROSE LINER

The tab of the rosette assembly is positioned on the opposite side of the lever catch, and align to the notch of the lever hole.

b. Use lever catch to press down catch in the hole and push inside lever all the way in until clicks into catch hole.

TEMPLATE FOLD HERE ON DOOR EDGE

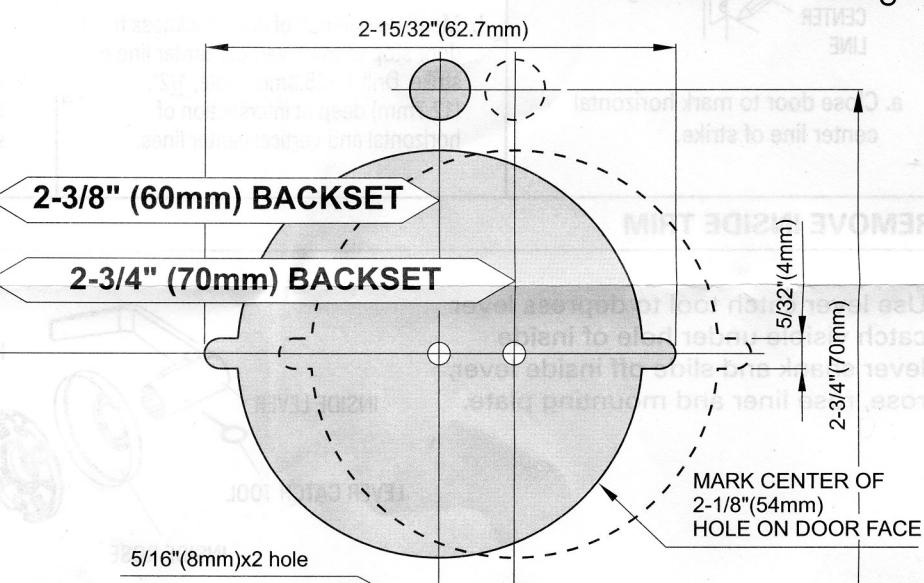

Std latch, drill 25.4mm (1") Drive in latch, drill 24.5mm (31/32") hole at center of door edge

51 45 40 35 2" 1-3/4" 1-9/16" 1-3/8"

EVR-1
