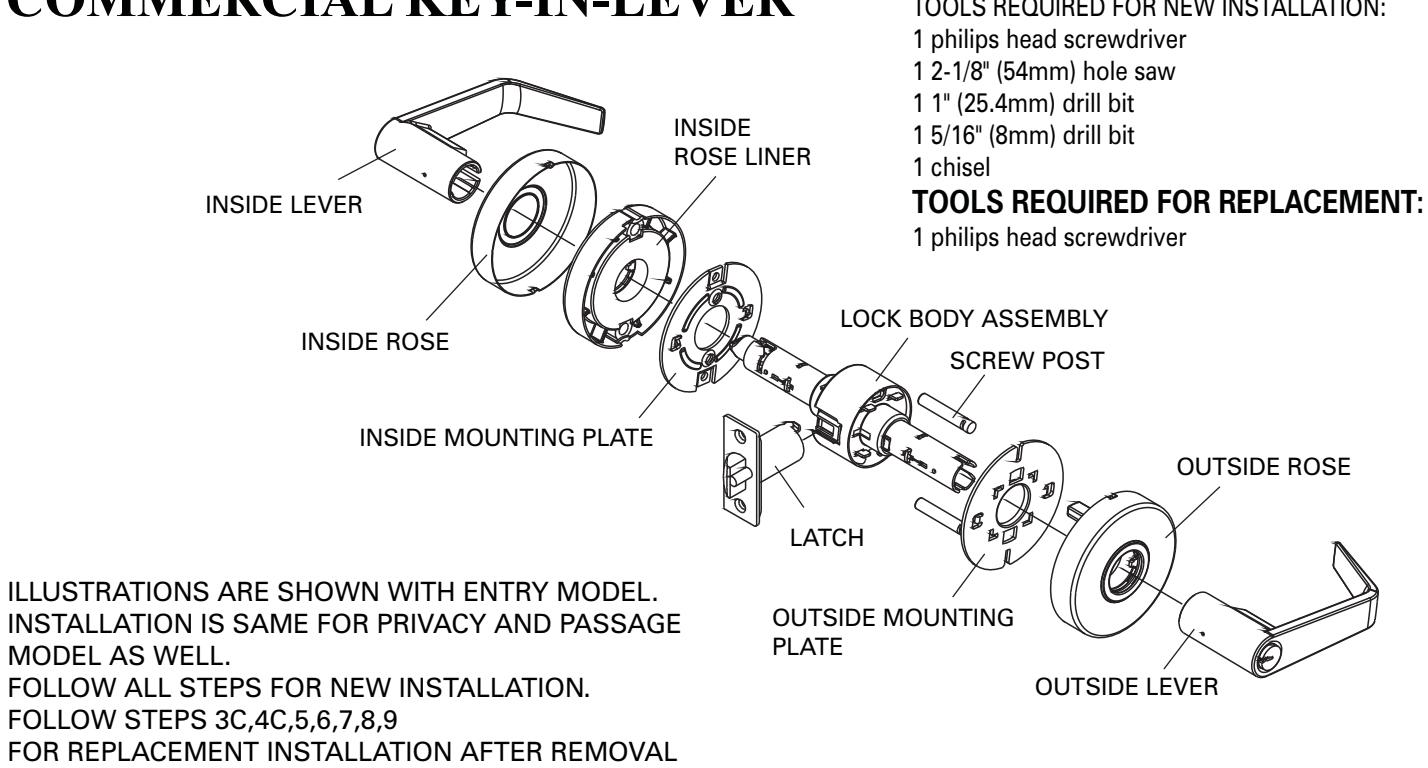

INSTALLATION INSTRUCTIONS COMMERCIAL KEY-IN-LEVER

OF OLD LOCK AND LATCH.

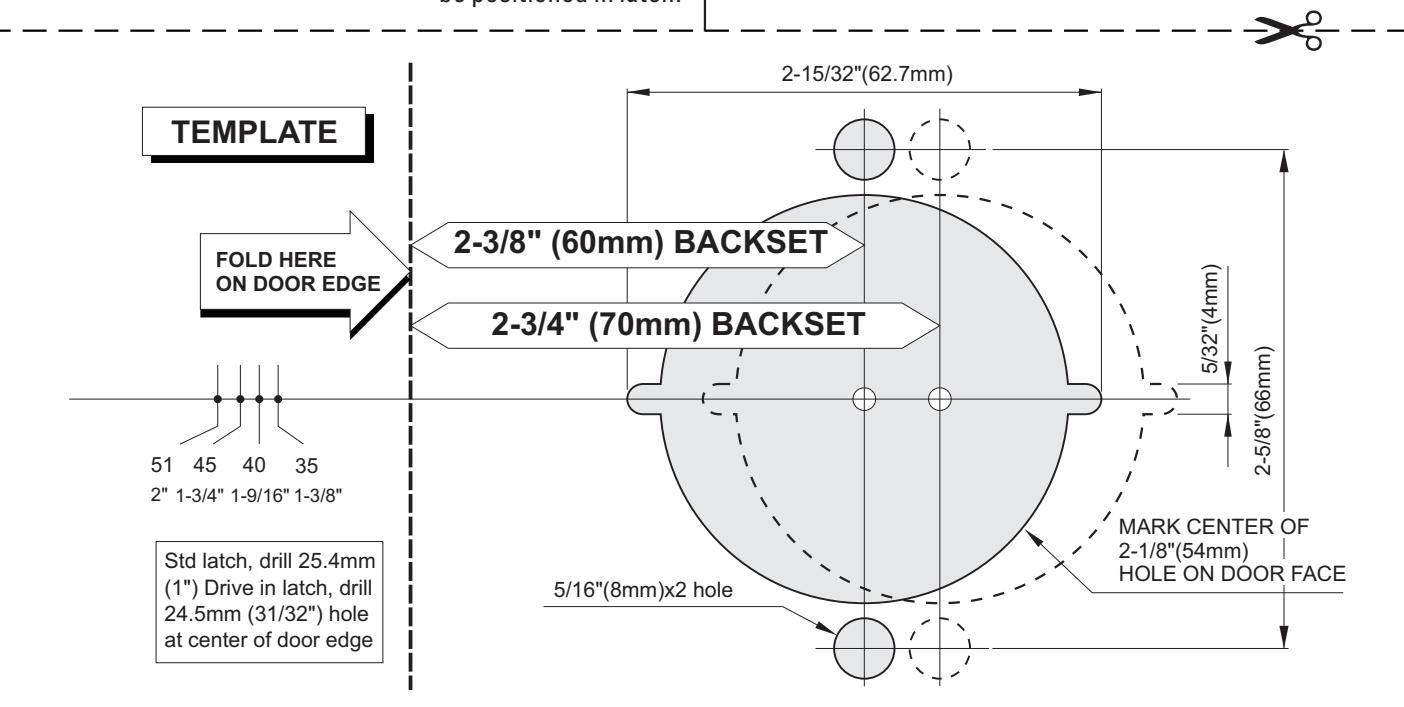

• a. Start 38" from floor and
• mark center of door edge. b. Select backset 2-3/8" or 2-3/4" and mark hole center on door face.
• c. Mark two holes for screw post.

NOTE: BACKSET ON DOOR FACE MUST BE SAME AS BACKSET OF YOUR LOCK.

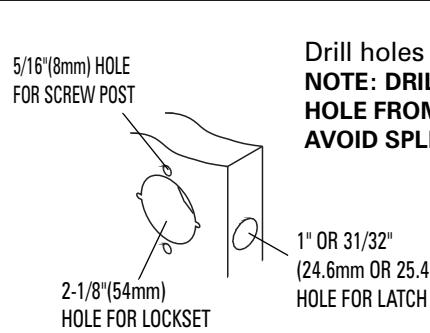

Drill holes as marked. NOTE: DRILL 2-1/8" (54mm) HOLE FROM BOTH SIDES TO AVOID SPLITTING WOOD.

1" OR 31/32" (24.6mm OR 25.4mm)

FOR USE ON DOORS 1-3/8"~2"

(35mm-51mm) THICK

3. INSTALL LATCH

a. Insert latch in hole and keep it parallel to door face. Mark outline and remove latch.

b. Chisel 1/8" (3mm) deep or until faceplate flush with door edge.

c. Insert latch and tighten screws. NOTE: LATCHBOLT BEVEL MUST TO CLOSING DIRECTION. FACE

4. INSTALL STRIKE

a. Close door to mark horizontal center line of strike.

b. Measure one half of door thickness from door stop to mark vertical center line of strike. Drill 1" (25.4mm) hole, 1/2" (12.7mm) deep at intersection of horizontal and vertical center lines.

c. Cut out jamb 3/32" (2.4mm) deep or until strike flush with jamb. Tighten screws securely.

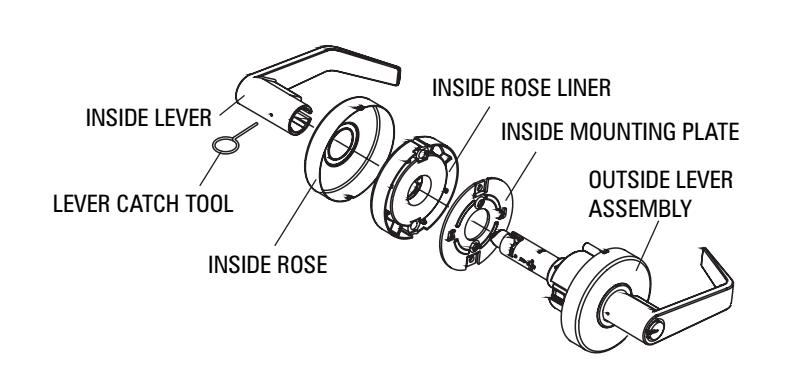

5. REMOVE INSIDE TRIM

Use lever catch tool to depress lever catch visible under hole of inside lever shank and slide off inside lever, rose, rose liner and mounting plate.

EV1 EV1

EV1 EV1

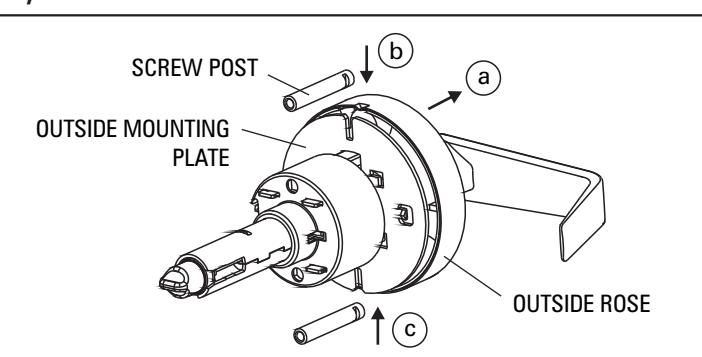

6. INSTALL REMOVABLE THRU-BOLT (SCREW POST)

• a. Disassemble outside mounting plate from outside rose plate.
• b. Make clearance between outside mounting plate and insert the removable thru-bolt (screw post) into the cavities of outside mounting plate.
• c. Continuing the follow up instructions.

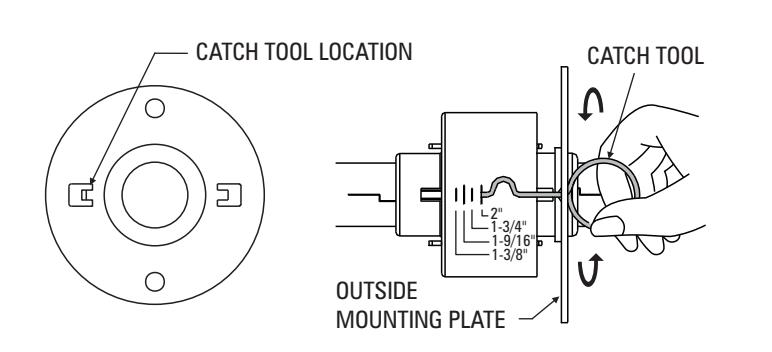

7. ADJUST DOOR THICKNESS

• a. Remove outside mounting plate toward cylindrical case.
• b. Put the catch tool into the allocated position of outside mounting plate as the illustrating bellow.
• c. Rotate outside mounting plate to required door thickness by using a catch tool.

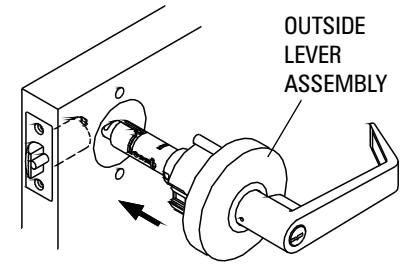

8. INSTALL OUTSIDE LEVER ASSEMBLY

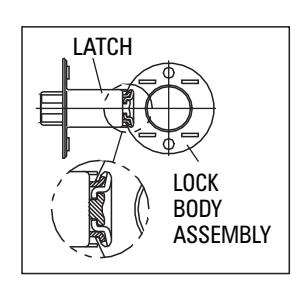

Install outside lever assembly on the door. Make sure tail of latch engaging with retractor correctly as illustration left.

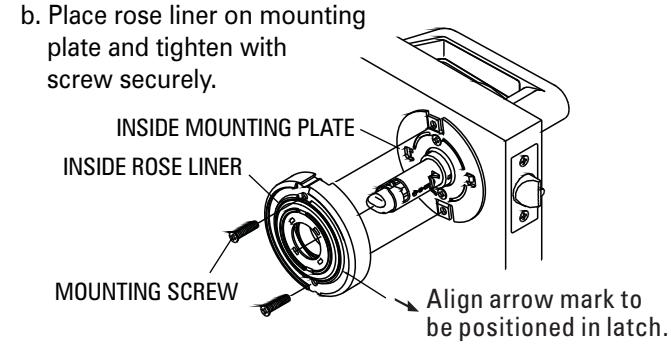

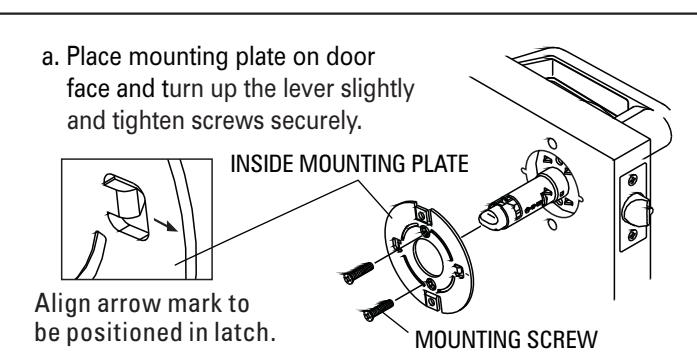

9. INSTALL INSIDE MOUNTING PLATE AND ROSE LINER

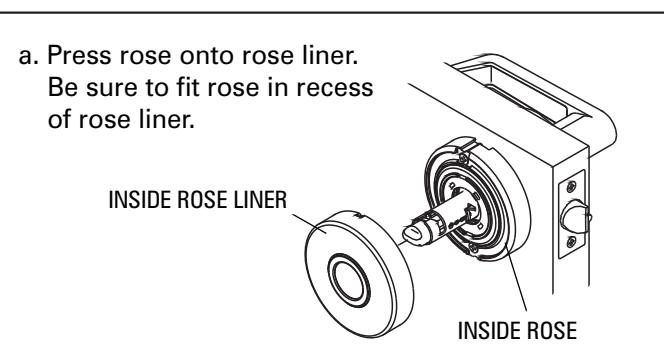

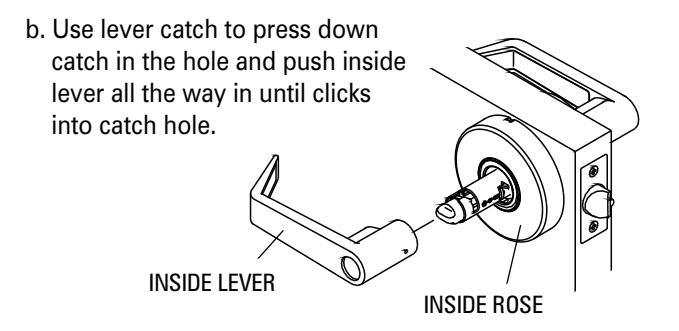

10. INSTALL INSIDE ROSE AND LEVER
