CSRC‐Heavy Duty Cylindrical Lockset

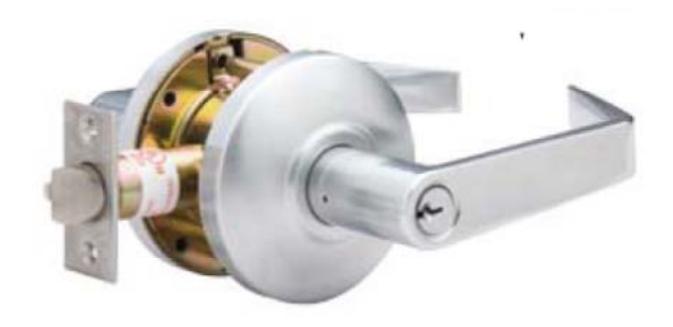

(Picture shows Sentinel Lever in US26D)

Specification:

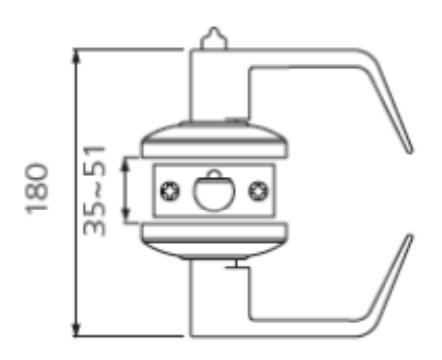

• UL: 3 hours fire rating certified • Door Thickness: 1‐3/8"‐2" (35mm‐

51mm)

Backset: 2‐3/4" standard. 2‐3/8", 3‐3/4" and 5" optional

Strike: ASA Strike standard, T‐Strike Optional

Latchbolt: Stainless steel with ½" (12.7mm) throw

Faceplate: 1‐1/8" x 2‐1/4" (28.4mm x 57mm) , square corner

Cylinder: 6pin solid brass cylinder, Schlage "C" keyway. Small Format IC Core available

Handing: Non‐Hand

Clutch Feature: Standard

Available lever: Sentinel, Gala, Quest Available Finish: US26D and US10B stock finish, other finishes upon request

Code Compliance:

• UL: Listed 3‐hour fire rating

• BAA: Meets guidelines of the Buy American Act

• ADA: Meets requirements of the Americans with Disabilities Act

Available Function:

Series Number	Description
CSRC‐75	Passage
CSRC‐76	Privacy
CSRC‐109	Entry
CSRC‐84	Classroom
CSRC‐86	Storeroom
CSRC‐87	Asylum

Notes:

• 1. Use CSRCI for SFIC less core configuration
• 2. Other functions upon request
