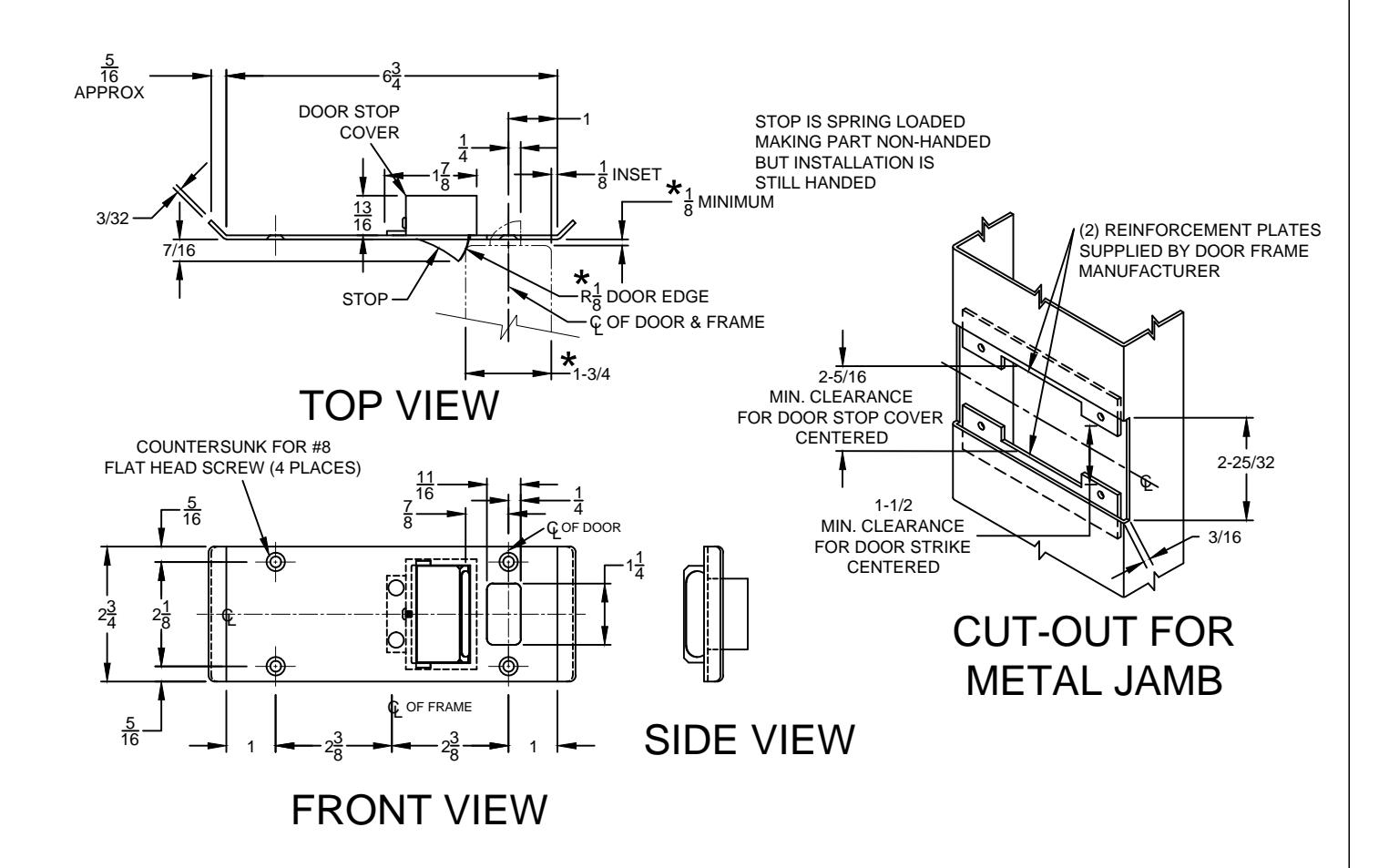

CR4593, 6-3/4" DOUBLE LIPPED STRIKE AND RESCUE DOOR STOP FOR 1/8" INSET HUNG DOOR

NOTE:

  • 1. HORIZONTAL CENTERLINE OF PLATE TO MATCH HORIZONTAL CENTERLINE OF CUTOUT.
  • 2. SCREWS- 8\mbox{-}32 X 3\mbox{/}8" UNDERCUT F.H.M.S.
  • 3. R.H. DOOR SHOWN, L.H. OPPOSITE
  • 4. DO NOT SCALE DRAWING.
  • 5. FOR CUSTOM RESCUE DOOR STOP CONSULT FACTORY.

REINFORCEMENT:

WHEN INSTALLING IN METAL FRAME, REINFORCEMENT IS NEEDED WITH THIS PRODUCT, CUSTOMER OR MANUFACTURER TO SUPPLY FRAME REINFORCEMENT WITH LATCH BOLT CLEARANCE.

ABH CR4593 RESCUE STOP IS DESIGNED FOR USE WITH CYLINDRICAL BORED LOCKS SETS AND MAY NOT WORK PROPERLY WITH SOME MORTISE LOCKS OR MORTISE LOCKS WITH THE DEAD LATCH. CONSULT FACTORY FOR MORTISE LOCK APPLICATIONS.

★ = CRITICAL DIMENSION MUST BE FOLLOWED

A:H

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

© 2009 ABH Mfg., Inc. printed in USA

CR4593-02.DWG

CR4593

REVISED 03-09-09
