CR4550 Double-Lipped Strike & Rescue Stop Combo Half Moon Style for Cylindrical Latch Center Hung 5-3by4 Frame – Template

Open the original PDF document

CR4550 DOUBLE LIPPED STRIKE & RESCUE STOP COMBO

FOR 1-3/4" CENTER HUNG DOOR, CYLINDRICAL LATCH, 5-3/4" FRAME

HOLD BACK CONVERSION IS ACCOMPLISHED BY REMOVING THE SPRING THAT ACTIVATES THE DOOR STOP INSIDE THE COVER.

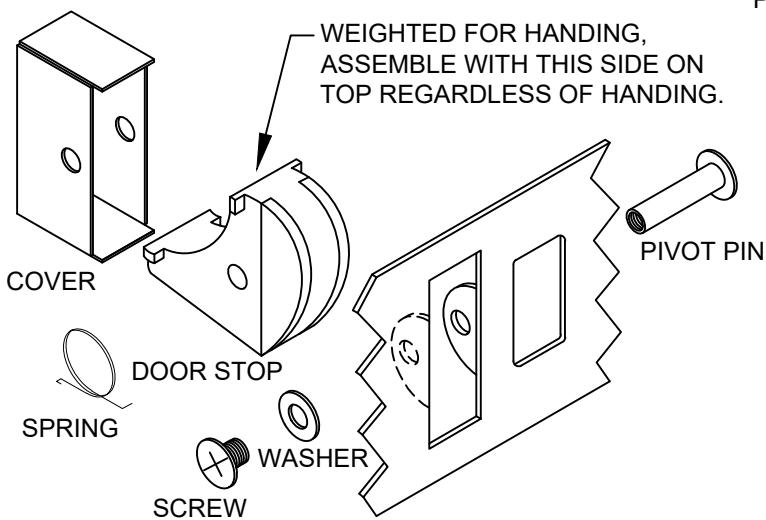

1. REMOVE SCREW & PIVOT PIN THAT HOLDS THE DOOR STOP COVER ON SO THE ENTIRE ASSEMBLY WILL COME APART.
2. REMOVE THE SPRING.

1. BEFORE ASSEMBLING THE RESCUE STOP BACK TOGETHER, NOTE DOOR HANDING. THE DOOR STOP WORKS BY GRAVITY AND BECOMES HANDED WHEN THE SPRING IS REMOVED.
2. STOP HAS TO BE INSTALLED AS SHOWN WITH HEAVY PART AT BOTTOM REGARDLESS OF HANDING.

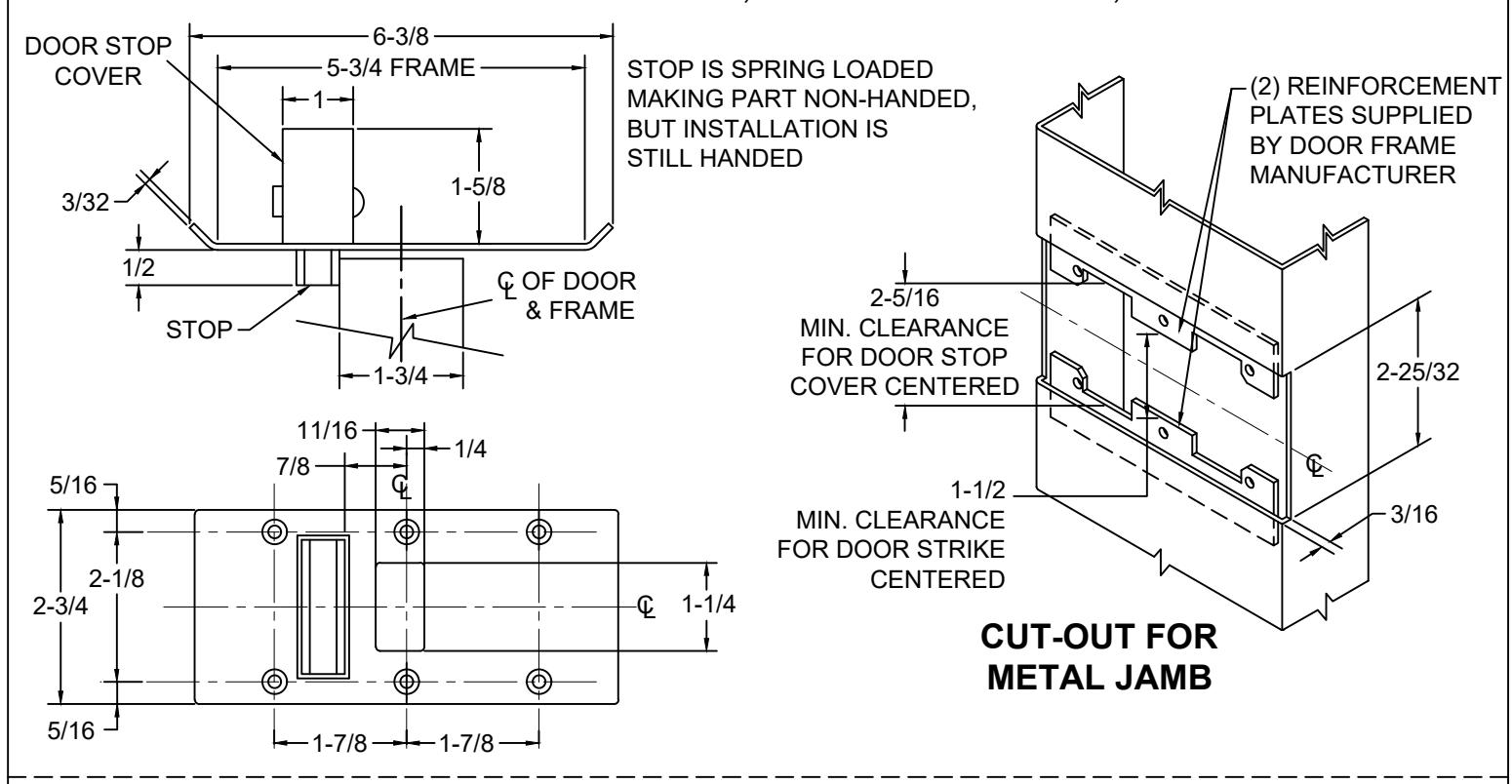

1. HORIZONTAL CENTERLINE OF PLATE TO MATCH HORIZONTAL CENTERLINE OF CUT OUT.
2. SCREWS: 8-32 X 3/8" UNDERCUT F.H.M.S.
3. RIGHT HAND DOOR SHOWN (RESCUE STOP NON-HANDED).
4. DO NOT SCALE DRAWING.
5. WHEN INSTALLING IN METAL FRAME. REINFORCEMENT IS NEEDED WITH THIS PRODUCT. ABH DOES NOT SUPPLY REINFORCEMENT.

printed in USA

CR4550-03 DWG

CR4550

PAGE 1 OF 1 REVISED 09-24-20
