CR4550, CR4560, CR4570, & CR4580 Cut Sheet – 2015
Open the original PDF document
View PDFRescue Hardware
Standard Features
- Intended for use in hospital or nursing home patient bathroom doors
- Allows door to open in both directions without damaging the frame after manually rotating the rescue stop into the frame
- Stop automatically returns to projected position when released
- Built-in hold back option
- Door to be mounted on center hung pivot set ABH 0327, 0127, 0128 or 0370 (see pivot section for details)
- For use on 1-¾" thick doors center hung or ⅛" inset
- Cut-out is standard for cylindrical latches. Custom units available for mortise locks (see pages J-11 to J-16)
- Standard frame sizes are 5-¾" and 6-¾". Custom frame sizes available (see pages J-11 to J-16)
- Supplied with 8-32 x ⅜" undercut machine screws
- .074" thick stainless steel material
- Available in US32D, US32, US10B, US10, US3 and US4
- Meets and/or exceeds ANSI Standard A1882

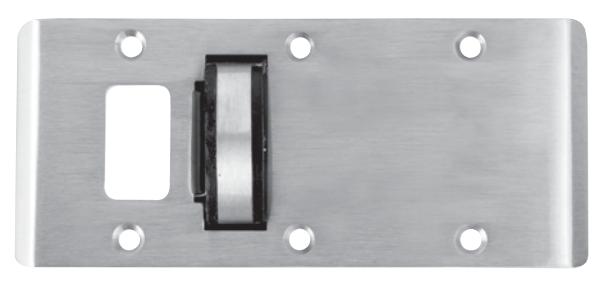

Center Hung Door - Cylindrical Latch CR4550 - 5-¾" Frame CR4560 - 6-¾" Frame
⅛" Inset Door - Cylindrical CR4570 - 5-¾" Frame CR4580 - 6-¾" Frame
| Model Number | Frame Size | Strike Height | Latch Type | Door Inset |
|---|---|---|---|---|
| CR4550 | 5-¾" | 2-¾" | Cylindrical | Center Hung |
| CR4560 | 6-¾" | 2-¾" | Cylindrical | Center Hung |
| CR4570 | 5-¾" | 2-¾" | Cylindrical | ⅛" Inset |
| CR4580 | 6-¾" | 2-¾" | Cylindrical | ⅛" Inset |
