CATREEKIT-ET

INSERT INSTRUCTIONS

FIELD INSTALLABLE CAT ET25/26 & CAL ROYAL 7700/9800 SERIES EXIT TRIM.

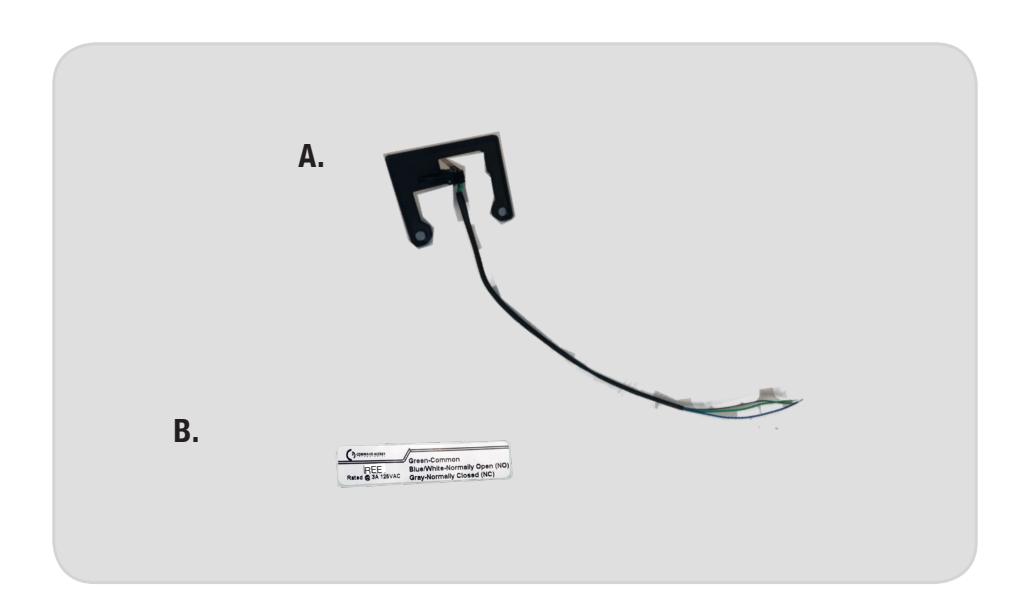

KIT INCLUDES TOOLS REQUIRED

CAT REE Bracket

A. Cordless Drill or Phillips Screwdriver

B. REE Color code sticker

SPECIFICATIONS

• Single Pole - Double Throw (SPDT)

• Rating: .5A @24VAC

• Configuration: Green - Common (C)

Blue - Normally Open (NO) Gray - Normally Closed (NC)

INSTALLATION INSTRUCTIONS

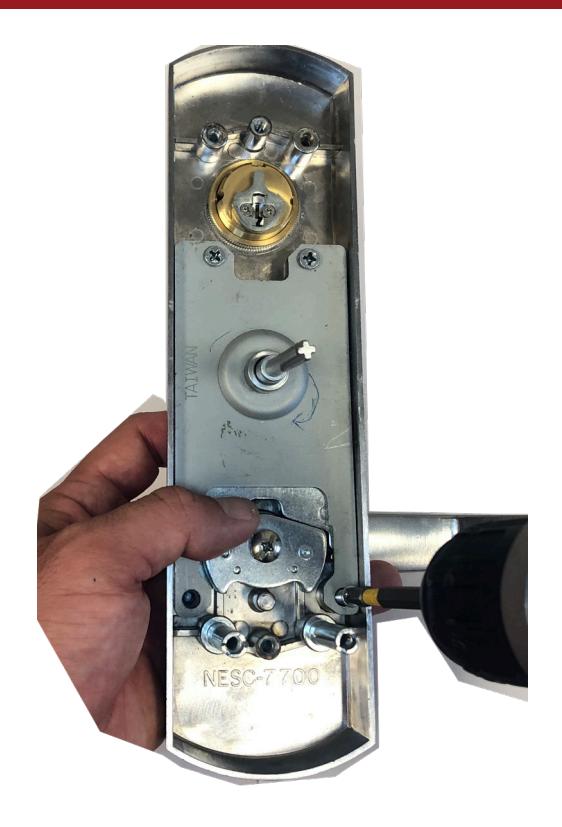

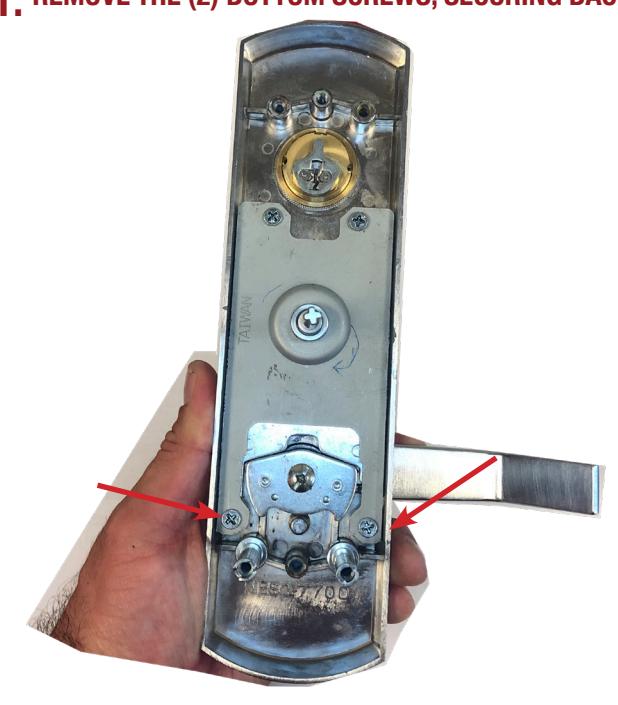

REMOVE THE (2) BOTTOM SCREWS, SECURING BACK PLATE. 1.

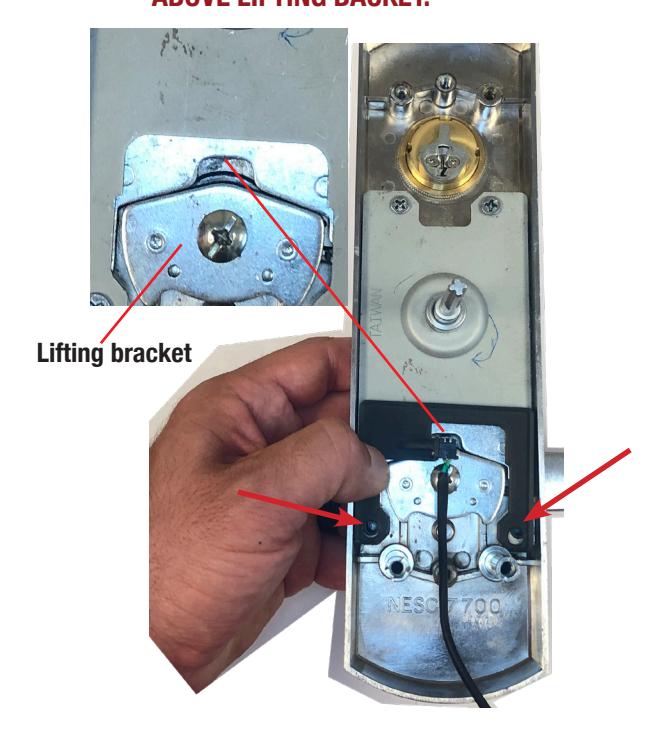

LINE UP REE BRACKET WITH EXSISITNG SCREW HOLES & MAKE SURE SWITCH ARM SLIDES INTO OPENING ABOVE LIFTING BACKET. 2.

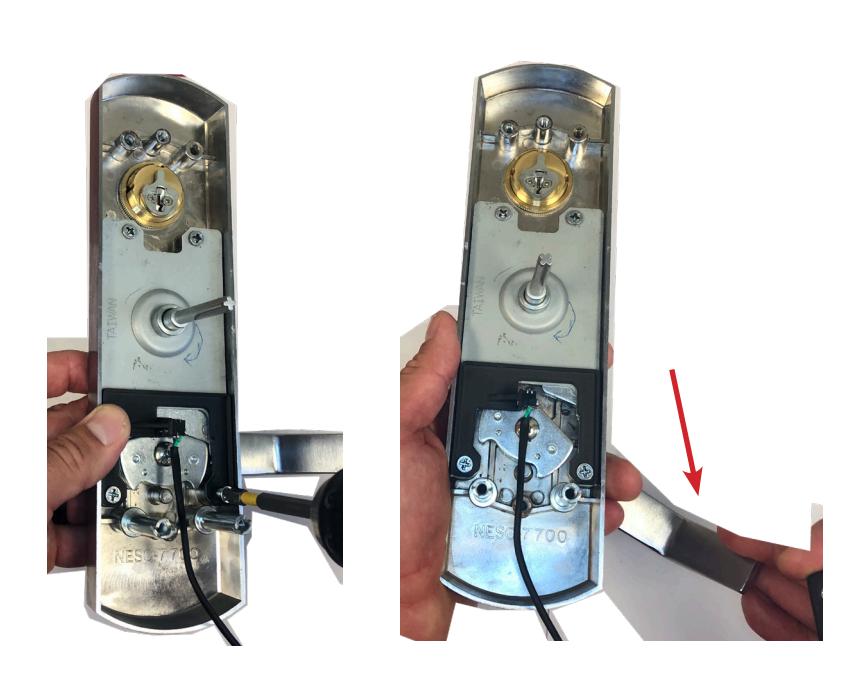

RE-INSTALL (2) BOTTOM SCREWS TO SECURE REE BRACKET & BACK PLATE. 3.

4. TEST SWITCH BY ACTIVATING LEVER UP & DOWN MAKING SURE THE SWITCH CHANGES STATES.
