CME019 Cut Sheet – Electrified 3by4 Offset Intermediate Pivot
Open the original PDF document
View PDFPivots & Pivot Sets

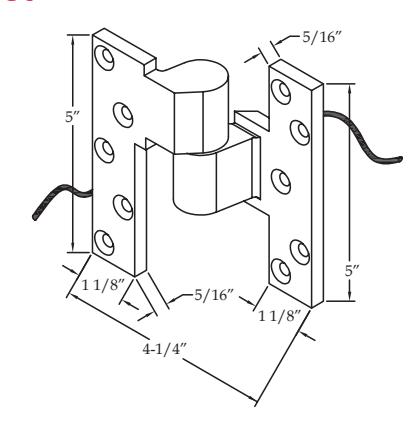

Standard Features
- Concealed door position monitor switch included
- Mortises into side jamb and hinge edge of door
- Handed Specify LH or RH
- For use with ¾" offset pivot sets
- Standard
- Heavy duty stainless steel needle bearings
- Stainless steel base material
Options
• SEC – Security fasteners

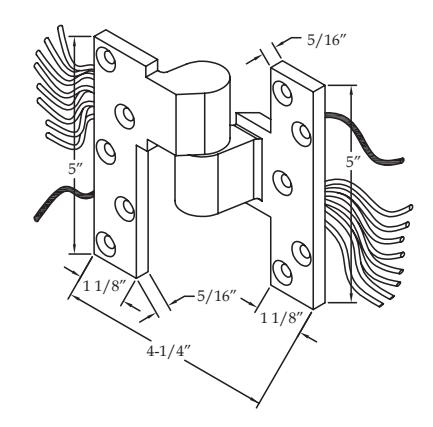

Standard Features
-
Provides electrical power transfer from the frame to the door
- (8) 30 AWG Wires
- Concealed door position monitor switch included
- Mortises into side jamb and hinge edge of door
- Handed Specify LH or RH
- For use with ¾" offset pivot sets
- Standard
- Heavy duty stainless steel needle bearings
- Stainless steel base material
Options
- • EZ EZ Connect Molex® Connectors for installation ease
- • SEC Security fasteners
