CM0345 Template
Open the original PDF document

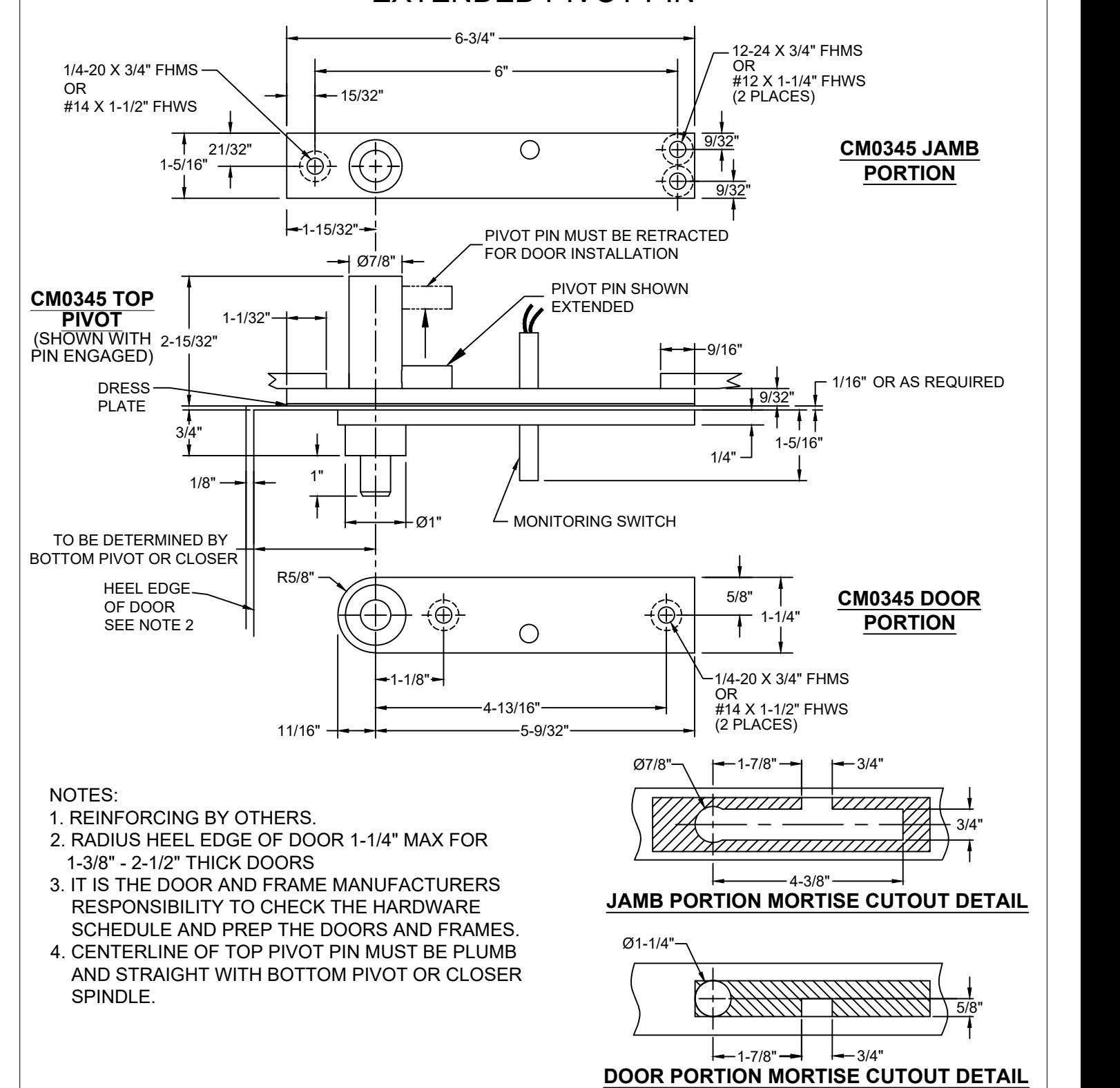

View PDFCM0345 TOP PIVOT, CENTER HUNG, NON-HANDED WITH CONCEALED MAGNETIC SWITCH & 1" LONGER EXTENDED PIVOT PIN
Disclaimer: This template is to be used for installation, as shown, of said product and is not suitable for every application method. Custom applications, where door sizes, weights and conflicting hardware are a factor, need to be addressed with ABH and proper instructions provided. ABH is not liable for failure or performance of the product due to improper installation methods and/or use. Improper use and/or installation of this product will void the standard warranty.
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL60143 630.875.9900; FAX 800.9FAXABH (932.9224)
CM0345-01.DWG
CM0345 PAGE 1 OF 1 REVISED 10-21-20
