CM019 ELECTRIFIED INTERMEDIATE PIVOT, 3/4" OFFSET, HANDED

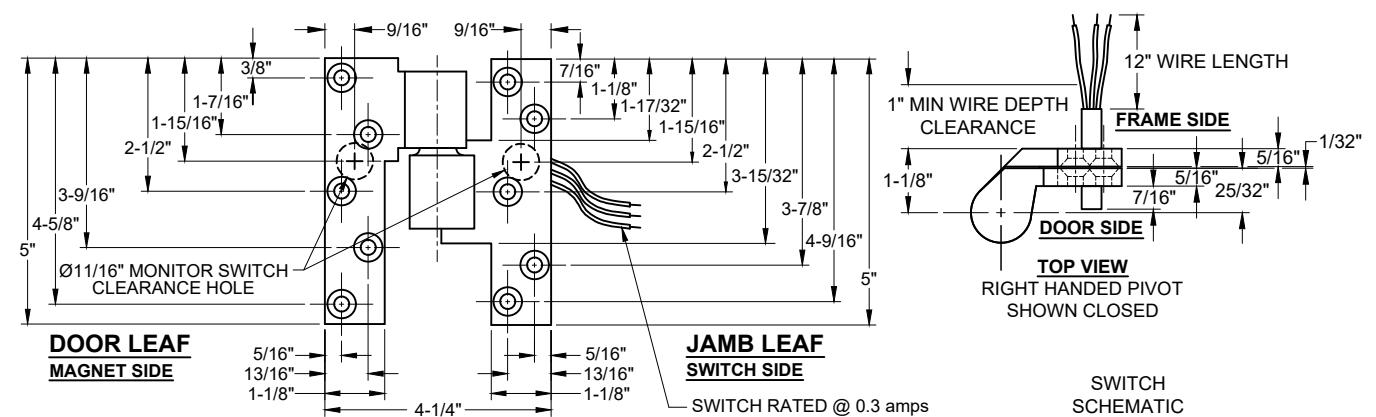

9/16 7/16 1-1/8" ·7/16' 1-17/32" 1-15/16" 1-15/16" 2-1/2" 2-1/2"-3-9/16 3-7/8" 4-5/8" 4-9/16" Ø11/16" MONITOR SWITC CLEARANCE HOLE JAMB LEAF DOOR LEAF 5/16" 5/16 SWITCH SIDE MAGNET SIDE 13/16' -13/16 SWITCH RATED @ 0.3 amps -1-1/8" 28 VOLTS MAX. (3) 22 GAUGE

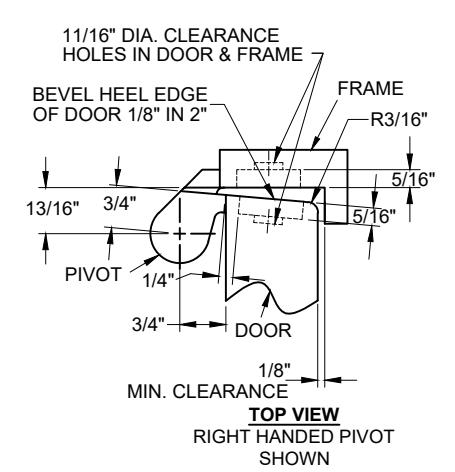

RIGHT HANDED PIVOT SHOWN

RED & WHITE = NORMALLY CLOSED GREEN & WHITE = NORMALLY OPEN

WIRES ONLY

NOTES:

LEFT HANDED PIVOT SHOWN

• 1. PIVOTS DRILLED FOR $1/4-20\; \backslash times\; 3/4$ FHMS OR #14 x 2" FHWS.
• 2. REINFORCING BY OTHERS.
• 3. IT IS THE DOOR AND FRAME MANUFACTURERS RESPONSIBILITY TO CHECK THE HARDWARE SCHEDULE AND PREP THE DOORS AND FRAMES.
• 4. MAXIMUM DEGREE OF OPENING, 180°, TRIM PREMITTING.

IMPORTANT: USE PLUMB LINE TO MAKE SURE THAT CENTERLINE OF TOP AND BOTTOM PIVOT PINS LINE UP WITH THE CENTERLINE

OF INTERMEDIATE PIVOT.

DOOR AND FRAME PREPARATION

• PREPARE DOOR & FRAME PER DRAWING ABOVE.
• WIRE CLEARANCE HOLES MUST BE FREE OF BURRS AND SHARP EDGES. CHECK TO MAKE SURE THAT PIVOT FITS FREELY IN PREP TO AVOID DAMAGE AND/OR SHORTENED LIFE.

28 VOLTS MAX. (3) 22 GAUGE

WIRES ONLY

DO NOT FORCE PIVOT INTO PREP HOLES

INSTALLATION

• 1. HANG THE DOOR ON THE TOP AND BOTTOM PIVOTS FIRST. (NOTE: THESE ARE NON-ELECTRICAL PIVOTS).
• 2. ATTACH WIRES IN ACCORDANCE WITH PROJECT WIRING DIAGRAMS.
• 3. OPEN DOOR TO 90° OR MORE FOR ACCESS TO JAMB PREPS.
• 4. EXTRACT INTERIOR WIRING THROUGH THE PREP HOLES FROM THE DOOR AND JAMB.
• 5. TERMINATE WIRE CONNECTIONS WITH APPROPRIATE CRIMP SPLICES OR WIRE NUTS. NOTE: IT IS HELPFUL TO STAGGER TERMINATIONS. THIS ALLOWS FOR EASY INSERTION OF WIRES THROUGH PREP HOLES.
• 6. DO NOT HANG PIVOT BY WIRES DURING INSTALLATION OR SERIOUS DAMAGE COULD OCCUR.
• 7. INSULATE ALL ENDS OF UNUSED WIRES
• 8. AFTER ALL TERMINATIONS ARE COMPLETED, CAREFULLY SLIDE WIRES THROUGH PREP HOLE MAKING SURE THAT WIRES ARE PLACED SO THEY WILL NOT BE CUT OR PINCHED AS PIVOT IS INSTALLED.

Disclaimer: This template is to be used for installation, as shown, of said product and is not suitable for every application method. Custom applications, where door sizes, weights and conflicting hardware are a factor, need to be addressed with ABH and proper instructions provided. ABH is not liable for failure or performance of the product due to improper installation methods and/or use. Improper use and/or installation of this product will void the standard warranty.

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

CM019-02.DWG

CM019 PAGE 1 OF 1 REVISED 10-21-20
