CM-AF500 Series LED Annunciators

Camden's CM-AF500 Series illuminated annunciators are designed to provide critical messages to building occupants.

When not illuminated, the sign (text and/or graphics) is invisible. When illuminated, the text/graphics are highly visible - even in bright daylight. CM-AF500 series signs and push buttons are weatherproof and vandal resistant.

Field selectable 12/30V AC/DC operation allows the sign to be used in a variety of low voltage applications, including automatic door, access control and other low voltage systems.

Features

• • CM-AF500:
  • (6) message insert labels included, English, French and Bilingual
• • CM-AF503: Horizontal, curved, with (6) message labels
• • CM-AF501SO: 'Assistance Required' label, with sounder Adjustable 85dB sounder
• • Bright LEDs for high visibility, even in daylight
• • Text /graphics are not legible when not illuminated
• • Vandal and weather resistant construction
• • 3 year warranty

SPECIFICATIONS

VOLTAGE: 12 /30V AC/DC

CURRENT DRAW: CM-AF500 / AF550R: 30 - 50mA

CM-AF501SO / AF540SO: 30 - 75mA

TEMP RANGE: 32°F - 176°F (0°C - 80°C) CONSTRUCTION: 18 gauge stainless steel faceplate

SOUNDER: CM-501SO/ CM-AF540SO:

Adjustable, 85dB @ 10cm max.

STD FINISH: US 32 /C32D

PUSH BUTTON: CM-AF540SO: Maintained (Push/Pull), N/O & N/C, 6A @ 30 VDC

CM-AF550R: Momentary (Spring Action) N/O, 6A @ 30 VDC

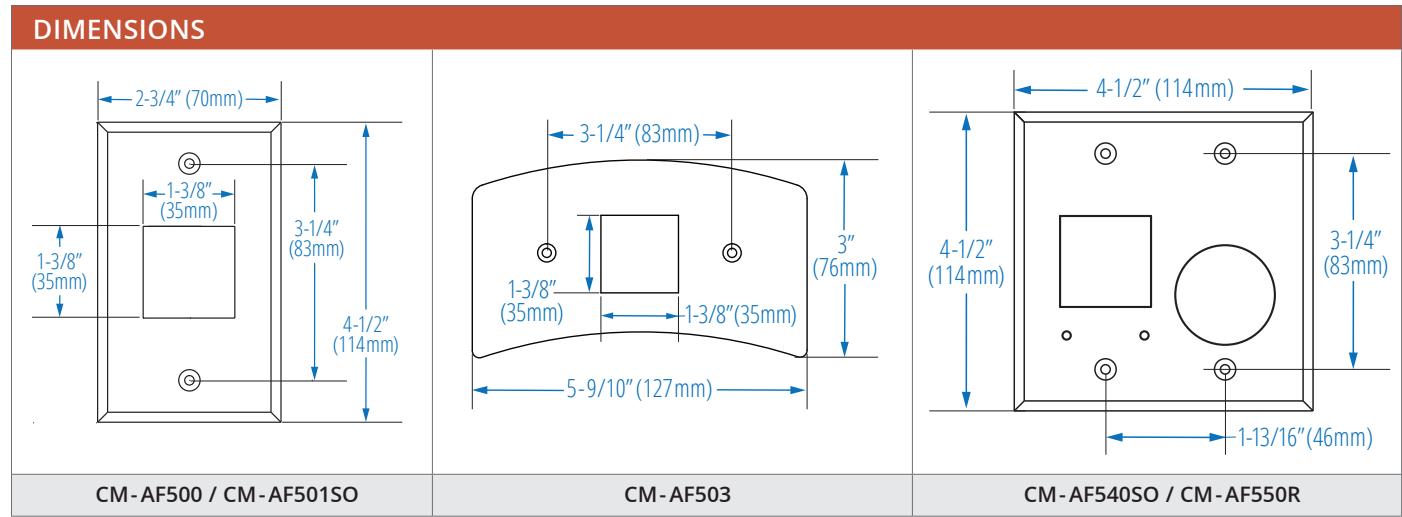

DIMENSIONS: CM-AF500 / CM-AF501SO: 4-1/2" H x 2-3/4" W x 9/16" D (114mm x 70mm x 15mm)

CM-AF503: 3" H x 5-9/10" W x 1/20"D (76mm x 127mm x 1mm)

CM-AF540SO / CM-AF550R: 4-1/2" H x 4-1/2" W x 9/16" D (114mm x 114mm x 15mm)

MODELS

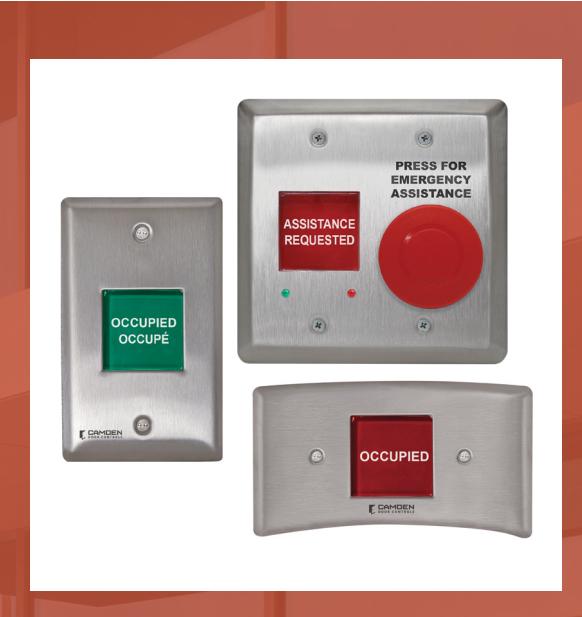

CM-AF500	Single Gang LED Illuminated Annunciator. Labels included: 'Occupied/Occupé' (Red & Green), 'Occupied' (Red), 'Armed' (Red), 'Locked' (Red) and 'Unlocked' (Green).
CM-AF503	Single gang, horizontal, LED illuminated annunciator, curved profile designed for use with Column™ switches. With (6) English, French, and Bilingual message labels.
CM-AF501SO	Single gang LED annunciator with adjustable sounder, 'Assistance Requested'. Add suffix 'F' for French, suffix 'FE' for bilingual.
CM-AF540SO	Double gang, push/pull mushroom push button, red, 'Assistance Required', annunciator and adjustable sounder, 'Assistance Requested'. Add suffix 'F' to model number for French language.
CM-AF550R	Double gang, mushroom push button, red, 'Push to Lock', with LED annunciator. Add suffix 'F' to model number for French language.
