Wiring Instructions

  • 1. Remove the two screws holding the decorative bezel around switch. Pull off bezel.
  • 2. Mount the switch in desired location. Do not over-tighten mounting screws!

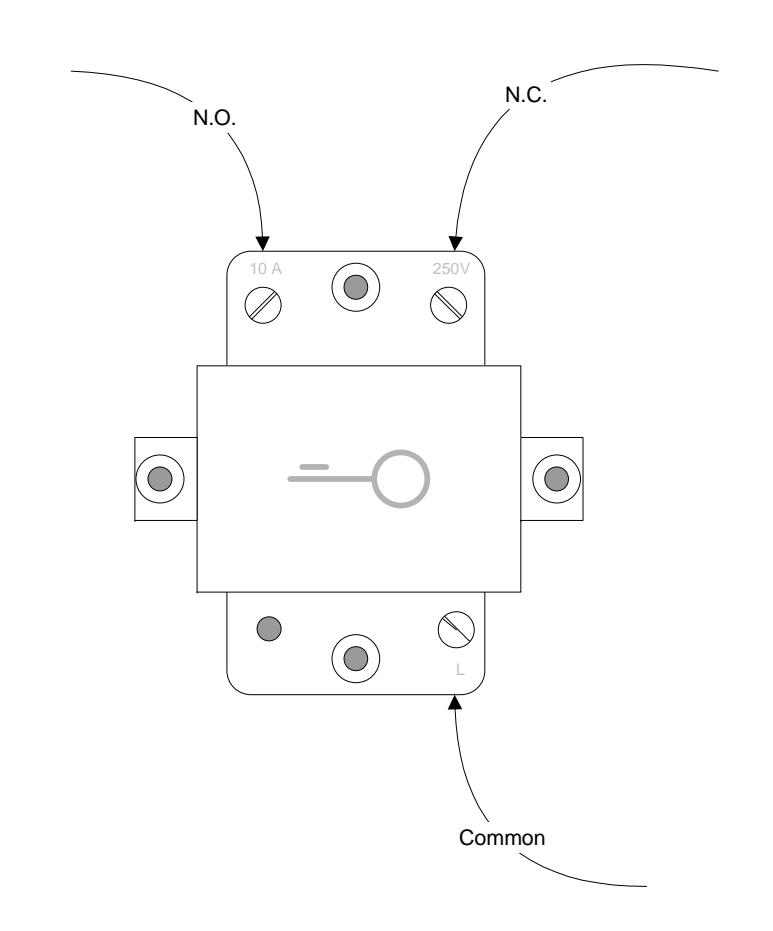

  • 3.. Connect the wiring as per diagram at right. The N.O. & N.C. termination is at the top of switch. The Common terminal is at the bottom of the switch.
  • 4. Replace decorative bezel.

Camden Camden Door Controls 5502 Timberlea Dr.
Mississauga, Ontario
L4W 2T7
SCALE: NONE DRAWN BY: DGW DATE: 09/19/07 REVISED:
CM-850 Door Release Switch Wiring Diagram
DRAWING No: DRG-CM-850-0907 FILENAME: CM-8 50 Wiring Diagram.vsd
