REMOTE DOOR RELEASE SWITCHES

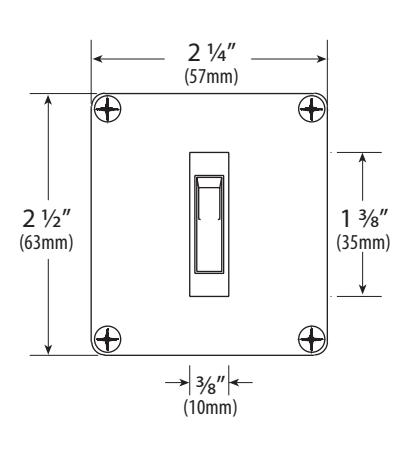

CM-810
FEATURES
- EASILY MOUNTS UNDER COUNTERS OR DESKS
- SPST MAINTAINED OR SPDT MOMENTARY VERSIONS
- CM-810/820/830/840: 20 AMPS
- CM-850: 10 AMPS
- CAST ALUMINUM, OR LOW PROFILE PLASTIC CASES AVAILABLE
CM-830
DESCRIPTION
Camden Door Controls CM-800 Series remote door release switches are surface mount switches available in either a weather resistant aluminum box or low profile plastic cases, with a panel mount rocker switch. The rocker switches are either SPST maintained or SPDT momentary.
Camden Door Controls CM-800 series of remote door release switches are designed for releasing maglocks or door strikes. They are ideal for under desk mounting in

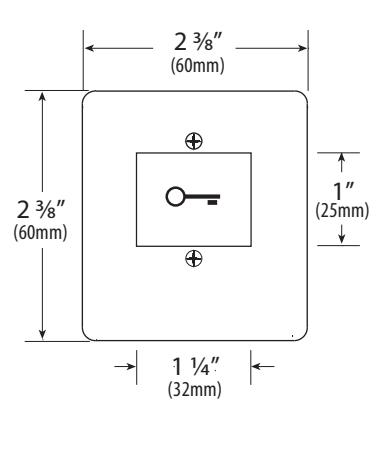

CM-850
ORDERING INFORMATION
| MODEL | DESCRIPTION |
|---|---|
| CM-810 | SPDT, MOMENTARY, BRUSHED ALUMINUM FINISH |
| CM-820 | SPST, MAINTAINED, BRUSHED ALUMINUM FINISH |
| CM-830 | SPDT, MOMENTARY, MATTE BLACK PLASTIC CASE |
| CM-840 | SPST, MAINTAINED, MATTE BLACK PLASTIC CASE |
| CM-850 | SPDT, MOMENTARY, BEIGE PLASTIC CASE WITH KEY LOGO |
