Door Activation Devices

CM-8000 & CM-8100 Series Push Buttons

INSTALLATION INSTRUCTIONS

THIS PACKAGE INCLUDES:

• (1) 1'' (25mm) diameter red or green Push button.
• (1) Single Gang Die-cast Aluminum Faceplate.
• (1) Normally open and/or Normally closed Contact block.
• (1) Parts Kit

CM-8000

1. GENERAL DESCRIPTION 4. INSTALLATION

Camden Door Controls 8000 Series low profile exit switches are vandal resistant; designed and manufactured to meet the stringent demands of exit controls. They are supplied with a 1/4" thick heavy duty brushed aluminum plate, in 1 3/4''(44mm) or 2 3/4''(70mm) widths. Optional duranodic (US 40) finish is also available.

CM-8000 Series Extended Buttons are unobtrusive, yet easy to activate the button extends from the metal housing to provide visibility and allow for quick and easy activation. The low-profile design protrudes less than 1'' from the wall.

The switches are UL/CSA approved, rated at 10 amps. The design of the Camden Exit Button is modular, so contacts can be stacked to control up to six distinct functions simultaneously.

2. SPECIFICATIONS

Voltage	12/24 VDC
Contact Rating	6A @ 30 VDC
Temperature Range	-13°F to 158°F (-25°C to 75°C)
Timer Life:	100,000 cycles
Switch Type	Momentary
Standard Finish	Brushed Aluminum
	CM-8000:
Dimensions	4 ½'' H x 2 ¾'' W x 1 ½'' D (114mm X 70mm x 38mm)
	CM-8100:
	4 ½'' H x 1 ¾'' W x 1 ½'' D
	(114mm X 44mm x 38mm)

3. APPLICATION

The CM-8000 Series Exit Switches are ideal for high traffic areas, such as store and building front entrances, and exits. They can be surface, flush, or mullion (narrow) mounted.

Camden Exit Switches are designed to control overhead doors, electric locks, electro-magnetic locks, electric strikes, automatic doors, and handicap operators. They may also be used for motor control, shunting, bypassing alarms, request to exit, timed functions, and many other applications. The switches are made for high frequency usage, in an indoor or outdoor environment. Camden Exit Switches are versatile, and are supplied in various configurations to suit commercial, industrial, and residential applications.

The CM-8000 series contact block is a SPST (Single Pole Single Throw). It can be ordered with either a Normally Open or Normally Closed contact block. Each contact block is color coded. A contact block with a green actuator is Normally Open, where the red actuator is Normally Closed. Both types are available in a Momentary configuration.

The CM-8000 series comes with one contact block but can easily have three attached across the back of the button. If the application calls for more than three functions to happen on activation, then each contact block can be stacked with another doubling the number of functions on activation.

Installation is very simple by inserting the wiring into the top and the bottom of the contact block and securing them with the two screw terminals.

Each contact block has its screw terminals numbered so that the provided diagrams can be followed with ease and clarity. The CM-8000 Series are supplied with a 1-3/4'' brushed aluminum faceplate for door jamb mounting and can be easily be mounted to a single gang electrical box.

5. WIRING

Momentary : When the switch is pressed the current pole will change to the opposite state until released.

Maintained: When the switch is pressed it will provide the opposite pole until the button is pressed again

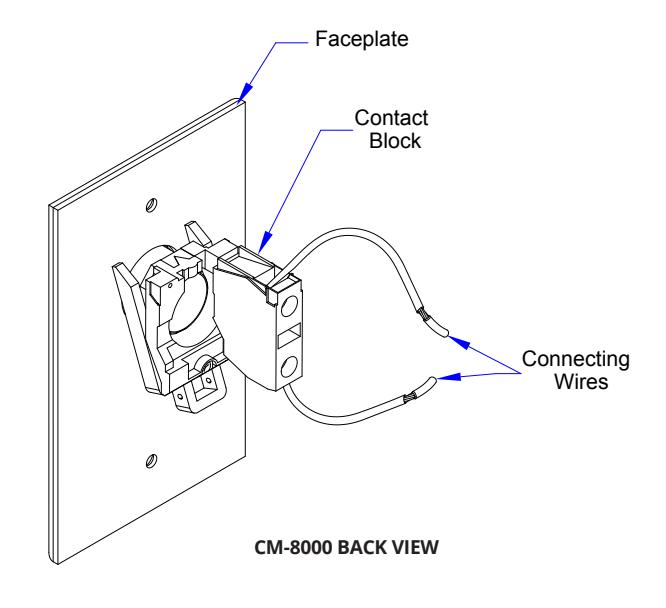

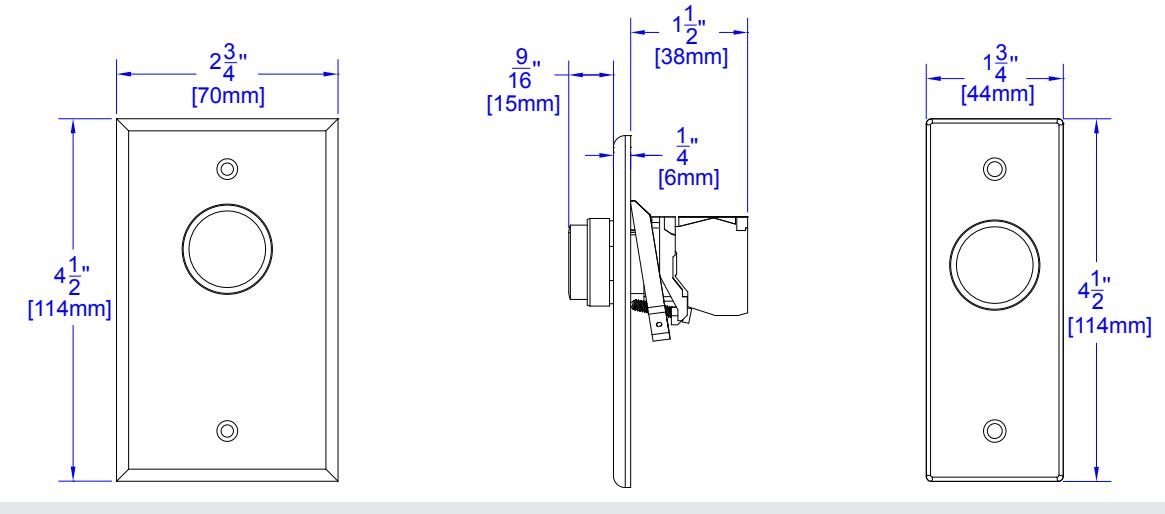

6. CM-8000 AND CM-8100 SERIES FRONT AND SIDE VIEW

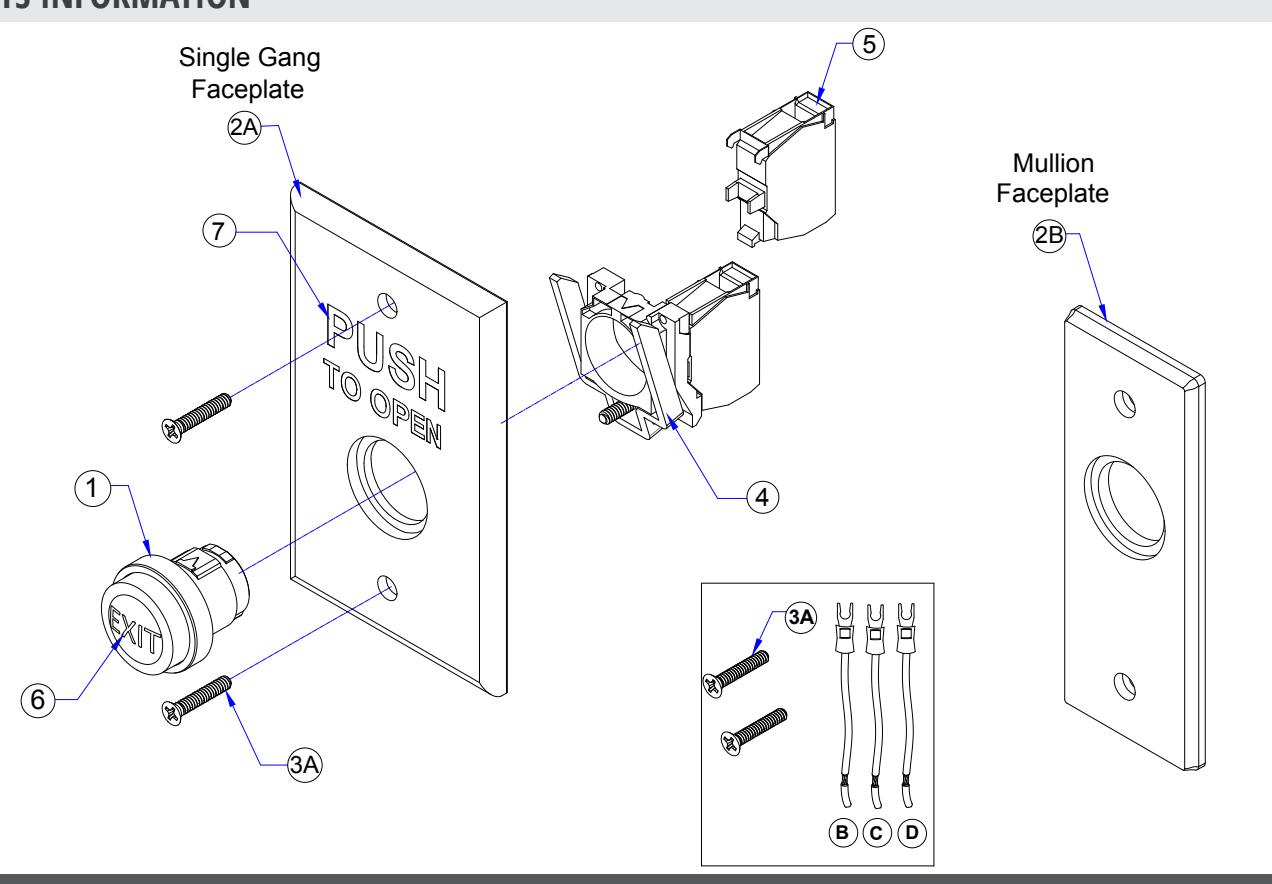

7. PARTS INFORMATION

ORDERING INFORMATION FOR REPLACEMENT PARTS
ITEM NUMBER	PART NUMBER			DESCRIPTION
1	60-66A019			RED MOMENTARY PUSH BUTTON (DIA. 1'')
	60-66A020			GREEN MOMENTARY PUSH BUTTON (DIA. 1'')
	A 60-41A003			DIE-CAST ALUMINUM SINGLE GANG FACE PLATE 4 1/2''H x 2 3/4''W x 1/4''D (114mm x 70mm x 6mm)
2	B 60-41A004			DIE-CAST ALUMINUM MULLION FACE PLATE 4 1/2''H x 1 3/4''W x 1/4''D (114mm x 44mm x 6mm)
PARTS KIT
ITEM NUMBER	PART NUMBER			DESCRIPTION
	FOR N-C & N-O CONTACTS 60-34B024			(A) 6-32 x 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW (B) 6'' ORANGE WIRE WITH INSULATED SPADE CONNECTOR (C) 6'' BLUE WIRE WITH INSULATED SPADE CONNECTOR (D) 6'' BLUE WIRE WITH INSULATED SPADE CONNECTOR
3.	FOR N-O CONTACTS 60-34B025			(A) 6-32 x 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW (B) 6'' BLUE WIRE WITH INSULATED SPADE CONNECTOR (C) 6'' GREY WIRE WITH INSULATED SPADE CONNECTOR
	FOR N-C CONTACTS 60-34B026			(A) 6-32 x 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW (B) 6'' ORANGE WIRE WITH INSULATED SPADE CONNECTOR (C) 6'' GREY WIRE WITH INSULATED SPADE CONNECTOR
MODEL NUMBERS
ITEM NUMBER	SINGLE	MODEL NUMBER MULLION	QTY	DESCRIPTION
	GANG CM-8000	CM-8100	1	NORMALLY OPEN CONTACT BLOCK
4.	CM-8010	CM-8110	1	NORMALLY CLOSED CONTACT BLOCK
	CM-8020	CM-8120	1	NORMALLY OPEN & NORMALLY CLOSED CONTACT BLOCK
				INDIVIDUAL CONTACT OPTIONS
ITEM NUMBER	PART NUMBER	QTY		ITEM NUMBER
	60-66C000	1		NORMALLY OPEN CONTACT BLOCK
5.	60-66C001	1		NORMALLY CLOSED CONTACT BLOCK
	60-66C002	1		NORMALLY CLOSED CONTACT AN D NORMALLY OPEN BLOCK

BUTTON ENGRAVED (IN WHITE) OPTIONS
ITEM NUMBER	MODEL NUMBER		DESCRIPTION
6.	CM-xxxE		EXIT
	CM-xxxS		SORTIE
	CM-xxxSA		SALIDA
FACE PLATE ENGRAVED (IN BLACK) OPTIONS
ITEM NUMBER	MODEL NUMBER		DESCRIPTION
	CM-xxx/2		WHEELCHAIR
	CM-xxx/3		PUSH TO OPEN
7.	CM-xxx/3F		POUSSEZ POUR OUVRIR
	CM-xxx/3S		EMPUJE PARA ABRIR
	CM-xxx/4		'WHEELCHAIR' & 'PUSH TO OPEN'
	CM-xxx/7		PUSH TO EXIT
	CM-xxx/7F		POUSSEZ POUR SORTIR
	CM-xxx/8		PUSH TO LOCK
			COMPATIBLE MOUNTING BOXES OPTION
ITEM NUMBER	PART NUMBER	DESCRIPTION
8.	CM-34AL	SURFACE MOUNT BOX WITH STANDARD DEPTH AND THREADED CONDUIT ENTRY. HEAVY DUTY CAST ALUMINUM 4-1/2"H X 2-3/4"W X 1-3/4"D [117MM X 70MM X 47MM]
	CM-66	FLUSH BOX & DRESS PLATE, STANDARD DEPTH BOX WITH 7'' X 7'' DRESS PLATE HEAVY GAUGE STAINLESS STEEL
	CM-31	SLEEVE COVER FOR STANDARD 2 3/4" X 4 1/4" (69MM X 110MM SURFACE ELECTRICAL BOX. HEAVY GAUGE STAINLESS STEEL
	CM-CPC1	VANDAL AND WEATHER RESISTANT CLEAR LIFT COVER
	CM-34BL	SINGLE GANG BLACK ABS BOX, SURFACE MOUNT 4 5/8"H X 2 7/8" W X 1 3/4"D (117MM X 73MM X 44MM)
	CM-34D	SURFACE MOUNT BOX WITH EXTRA DEPTH. HEAVY DUTY GREY POLYMER 4 1/2''H X 2 3/4''W X 1 3/4''D [117MM X 71MM X 71MM]
	FOR CM-8100 NARROW SERIES
	CM-23D	SURFACE BOX WITH EXTRA DEPTH, FLAME, AND IMPACT RESISTANT BLACK POLYMER (ABS) 4 1/2"H X 1 3/4" W X 1 1/2"D [117MM X 46MM X 43MM]
