Door Activation Devices
CM-7085 & CM-8085 Series Mushroom Push Buttons
INSTALLATION INSTRUCTIONS
THIS PACKAGE INCLUDES:
- (1) 1'' (25mm) diameter Recessed red or green Push button for the CM-7085 Series or
- (1) 1'' (25mm) diameter Extended red or green Push button for CM-8085 Series
- (1) Single Gang Die-cast Aluminum Faceplate
- (1) Pneumatic time delay.
CM-7085 & CM-8085
1. GENERAL DESCRIPTION 4. INSTALLATION
Camden Door Controls CM-7085 and CM-8085 Series Switches are heavy duty push buttons designed for industrial and commercial applications. CM-7085 buttons are 1'' (25mm) in diameter, CM-8085 buttons are 1'' (25mm) in diameter. They are available in red or green (other colors on request). All switches feature vandal resistance faceplate 1/4" [6mm] thick brushed aluminum, optional duranodic (US40) finish is also available.
CM-7085 and CM-8085 Series switches are supplied with 1-60 second pneumatic timer. Pneumatic timer features 6 amps @ 24VDC.
2. SPECIFICATIONS
| Voltage | 12/24 VDC |
|---|---|
| Contact Rating | 6A @ 24 VDC |
| Temperature Range | -13°F to 158°F (-25°C to 75°C) |
| Time Range: | 1-60 Sec |
| Timer Life: | 1,000,000 operations |
| Switch Type | Momentary |
| Contact Type: | N-C, N-O |
| Standard Finish | Brushed Aluminum |
| Dimensions |
CM-7085 & CM-8085 NARROW:
4 1/2'' H x 1 3/4'' W x 2 1/8''D (114mm X 44mm x 54mm) CM-7085 & CM-8085 SINGLE GANG 4 1/2'' H x 2 3/4'' W x 2 1/8''D (114mm X 70mm x 54mm) |
3. APPLICATION
Camden CM-7085 and CM-8085 Series 'Request To Exit' Series Switches with built in pneumatic time delay are ADA (American Disabilities Act) compliant and are designed to de-energize electric locking devices (such as magnetic locks) on egress doors without reliance upon electrical power for their operation. The mechanical pneumatic timer is also adjustable, allowing flexible time control as required in the field. Select models comply with UL 294 (standard for access control systems) and are designed for use in access control installations meeting IBC (International Building Code) requirements.
Pneumatic time delays require no power to operate. The timing range is 1 – 60 seconds and is easily adjusted by a thumbscrew. CM-7085 and 8085 Series mushroom push switches are heavy duty push buttons specially designed and manufactured to meet the stringent demands of exit control. No set screws are required, due to the bayonet interlocking of the modular assembly. Buttons are free spinning, for additional protection against vandalism.
5. WIRING
Momentary: When the switch is pressed it will provide a change Momentary: When the switch is pressed it will provide a change of state on both the N.O. & N.C. poles until released.
| WIRING LAYOUT & COLOR CODING | ||
|---|---|---|
| SWITCH TYPE | DPST N.O. | DPST N.C. |
| NORMALLY OPEN | WHITE | RED |
| NORMALLY CLOSED | WHITE | RED |

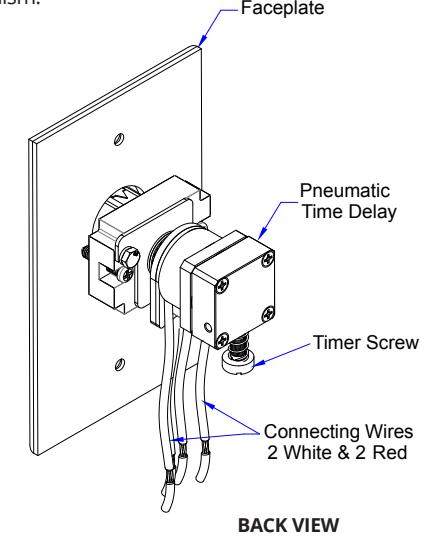

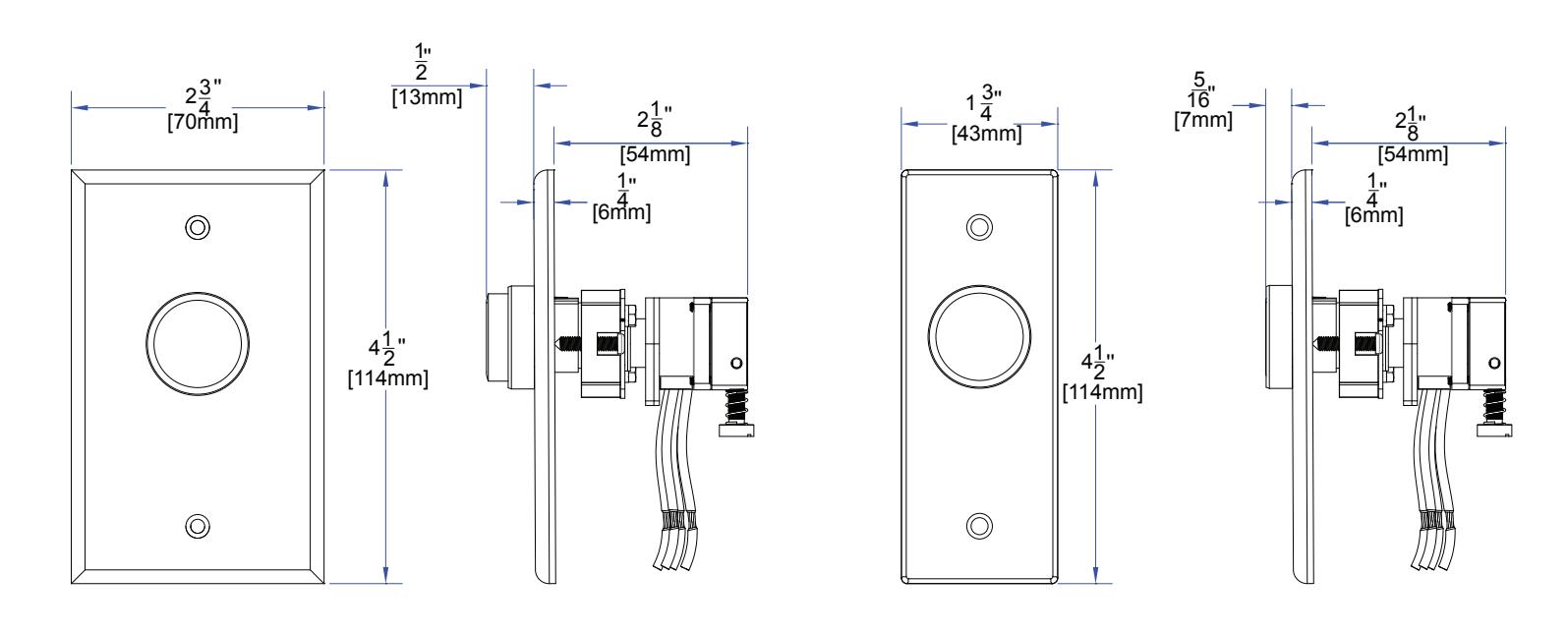

6. CM-7085 AND CM-8085 SERIES FRONT AND SIDE VIEW
CM-8085 SERIES, EXTENDED BUTTON
CM-8085 SERIES, RECESSED BUTTON

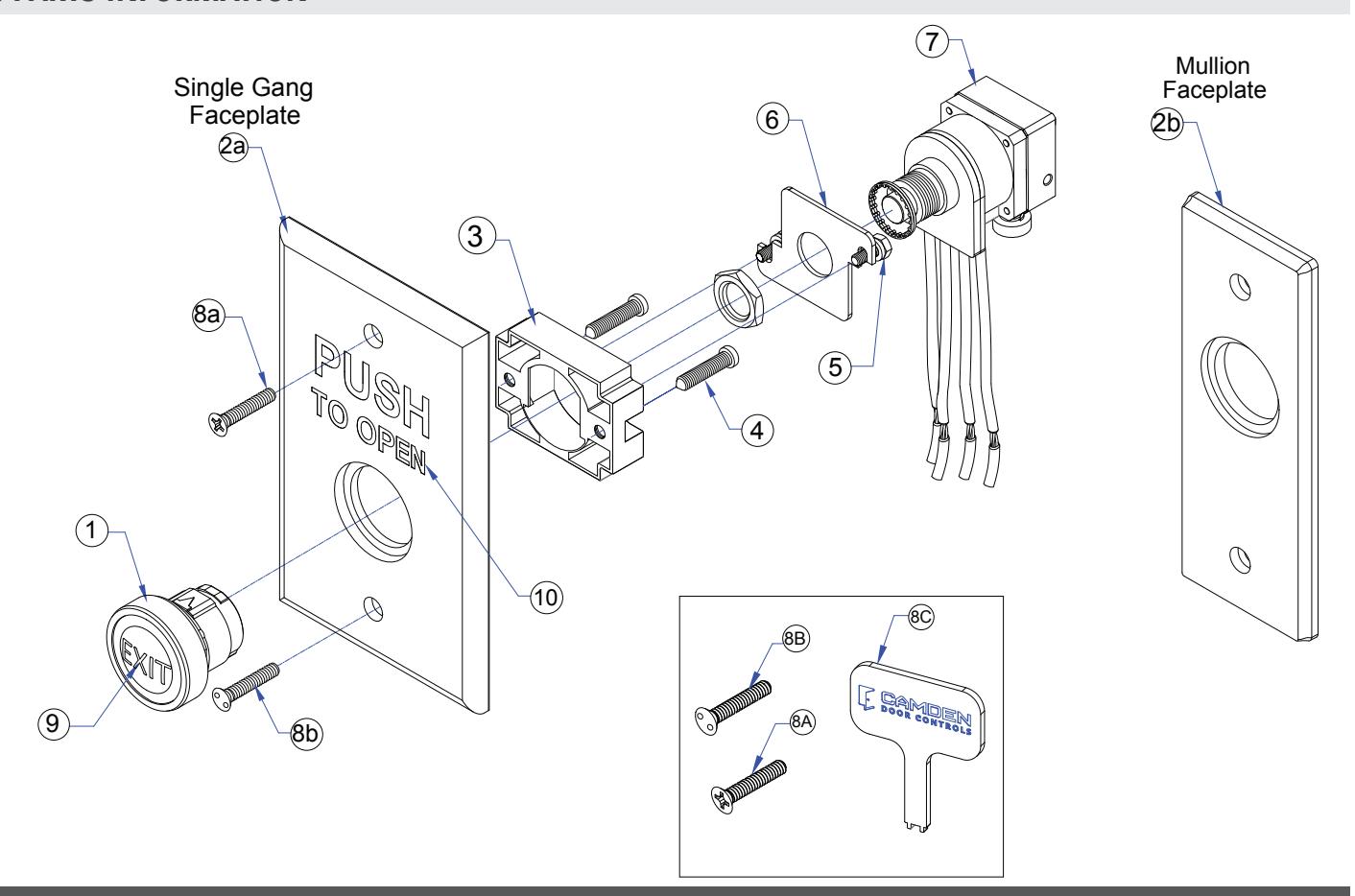

7. PARTS INFORMATION
CM-7085 AND CM-8085 SERIES MUSHROOM PUSH BUTTONS
INSTALLATION INSTRUCTIONS
| ORDERING INFORMATION FOR REPLACEMENT PARTS | ||||
|---|---|---|---|---|
| ITEM NUMBER | PART NUMBER | DESCRIPTION | ||
| CM-7085 SERIES | ||||
| 1. | 60-66A014 | RECESSED RED MOMENTARY MUSHROOM BUTTON (DIA. 1 5/8'') | ||
| 60-66A015 | RECESSED GREEN MOMENTARY MUSHROOM BUTTON (DIA. 1 5/8'') | |||
| CM-8085 SERIES | ||||
| 60-66A019 | EXTENDED GREEN MOMENTARY MUSHROOM BUTTON (DIA. 1 5/8'') | |||
| 60-66A020 | EXTENDED GREEN MOMENTARY MUSHROOM BUTTON (DIA. 1 5/8'') | |||
| 2. |
A
60-41A003 |
DIE-CAST ALUMINUM SINGLE GANG FACE PLATE
4 1/2''H x 2 3/4''W x 1 3/4''D (114mm x 70mm x 44mm) |
||
|
B
60-41A004 |
DIE-CAST ALUMINUM MULLION FACE PLATE
4 1/2''H x 1 3/4''W x 1 3/4''D (114mm x 44mm x 44mm) |
|||
| 3. | 60-40G020 | ALUMINUM BLOCK FOR PNEUMATIC SWITCHES | ||
| 4. | 60-51Z051G20 | M4 X 16mm PHILLIPS SCREW | ||
| 5. |
60-51Z032B08
60-53C003A01 |
M3 X 8 SOCKET HEAD CAP BLACK SCREW WITH
ZINC PLATED LOCK WASHER |
||
| 6. | 60-60A004 | MOUNT BRACKET FOR PNUEMATIC SWITCHES | ||
| 7. | RM-1000/85M | PNUEMATIC TIME DELAY FOR PUSH BUTTONS | ||
| PARTS KIT | ||||
| ITEM NUMBER | PART NUMBER | DESCRIPTION | ||
| (A) 6-32 x 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW (2)| | ||||
| 8. | 60-40G020 | (B) SNAKE EYE TAMPER PRF SCREW 6-32 x 3/4 (2) | ||
| (C) KEY FOR TAMPER PRF SCREW | ||||
| BUTTON ENGRAVED OPTIONS | ||||
| ITEM NUMBER | PART NUMBER | DESCRIPTION | ||
| CM-xxxE | ADD 'E' FOR EXIT | |||
| 9. | CM-xxxS | ADD 'S' and SORTIE | ||
| CM-xxxSA | ADD 'SA' FOR SALIDA | |||
| FACE PLATE ENGRAVED (IN BLACK) OPTIONS | ||||
| ITEM NUMBER | PART NUMBER | DESCRIPTION | ||
| CM-xxx/3 | PUSH TO OPEN | |||
| CM-xxx/3F | POUSSEZ POUR OUVRIR | |||
| CM-xxx/3S | EMPUJE PARA ABRIR | |||
| 10. | CM-xxx/7 | PUSH TO EXIT | ||
| CM-xxx/7F | POUSSEZ POUR SORTIR | |||
| CM-xxx/8 | PUSH TO LOCK | |||
| COMPATIBLE MOUNTING BOXES OPTIONS | ||||
| ITEM NUMBER | PART NUMBER | DESCRIPTION | ||
| CM-34AL |
SURFACE MOUNT BOX WITH STANDARD DEPTH AND THREADED CONDUIT ENTRY. HEAVY DUTY CAST
ALUMINUM 4-1/2" H x 2-3/4" W x 1-3/4" D [117MM X 73MM X 47MM] |
|||
| 8. | CM-66 |
FLUSH BOX & DRESS PLATE, STANDARD DEPTH BOX WITH 7'' X 7'' DRESS PLATE HEAVY GAUGE
STAINLESS STEEL |
||
| CM-31 |
SLEEVE COVER FOR STANDARD 2 3/4'' x 4 1/4'' (69MM x 110MM) SURFACE ELECTRICAL BOX. HEAVY
GAUGE STAINLESS STEEL |
|||
| CM-CPC1 | VANDAL AND WEATHER RESISTANT CLEAR LIFT COVER | |||
| CM-34BL | SINGLE GANG BLACK ABS BOX, SURFACE MOUNT 4 1/2''H x 2 7/8''W x 1 3/4''D [117MM x 73MM x 44MM] | |||
| CM-34D | SINGLE SURFACE BOX, EXTRA DEPTH 4 1/2''H x 2 3/4''W x 3''D [117MM x 71MM x 74MM] | |||
| FOR NARROW SERIES | ||||
| CM-23D |
Surface box with extra depth, flame and impact resistance black polymer (abs)
4 1/2'' H x 1 3/4'' W x 1 1/2'' D [117MM x 46MM x 43MM] |
|||
