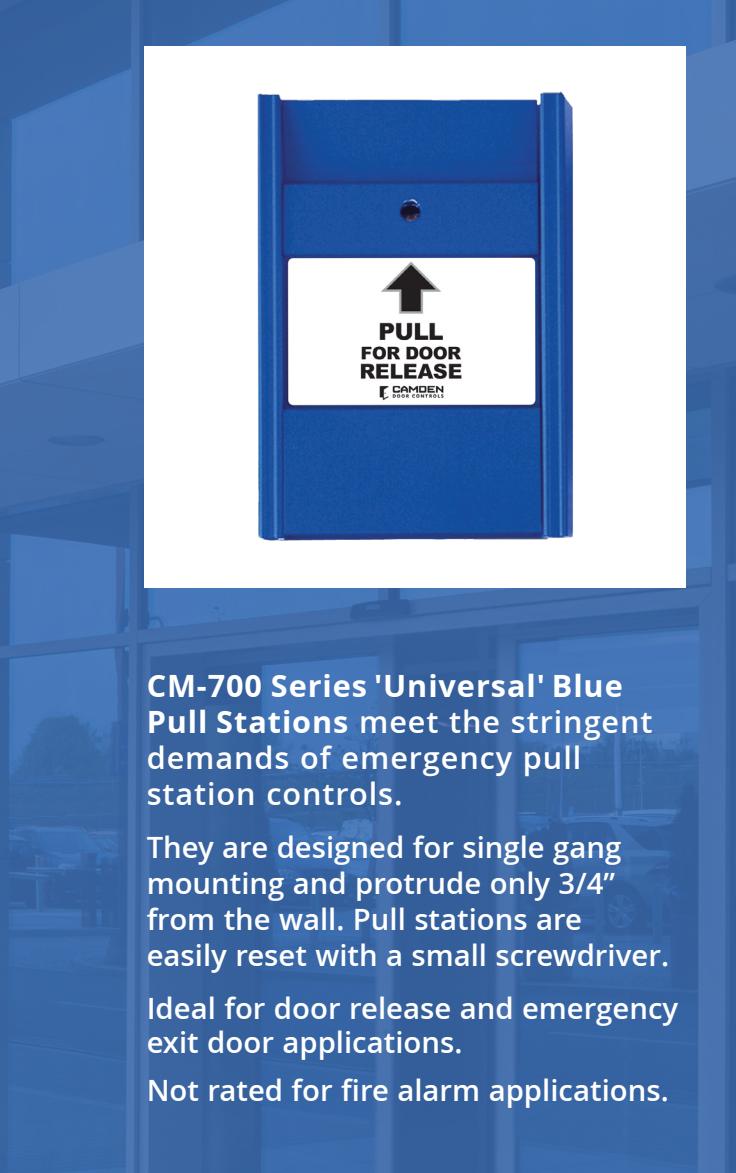

CM-700 Series 'Universal' Blue Pull Stations

Features

• • Ideal for use with magnetic locks in access control applications
• • Heavy duty vandal resistant design
• • English, French and Spanish versions
• • Available with N/O, N/C, or both N/O and N/C switches
• • Convenient wiring terminal
• • Standard single gang mount
• • Optional built-in local alarm sounder
• • Optional clear lift cover
• • 3 year warranty

SPECIFICATIONS

CONTACT RATING 1A @ 30 VDC

MOUNTING: Single gang electrical box

CONSTRUCTION: Extruded Aluminum

SOUNDER: 85dB @ 4" (10cm) | 40mA @12 VDC

DIMENSIONS: 4-1/2" W x 3-1/4" H x 1-3/8" D

(114mm x 82mm x 35mm)

MODELS

'UNIVERSAL' BLUE PULL STATIONS

CM-701U (1) x N/C, 'Universal' Labels Include: (1) 'Pull for Door Release', (1) 'Pull for Emergency Door Release',

(1) English and (1) French/English Bilingual 'Pull in Case of Emergency. Add suffix 'SP' to model number for Spanish label.

CM-702U (2) x N/C, 'Universal' Labels Include: (1) 'Pull for Door Release', (1) 'Pull for Emergency Door Release',

(1) English and (1) French/English Bilingual 'Pull in Case of Emergency. Add suffix 'SP' to model number for Spanish label.

CM-703U (1) N/C + N/O, 'Universal' Labels Include: (1) 'Pull for Door Release', (1) 'Pull for Emergency Door Release',

(1) English and (1) French/English Bilingual 'Pull in Case of Emergency. Add suffix 'SP' to model number for Spanish label.

BLUE PULL STATION WITH ALARM COVER OPTION

CM-701SO (1) N/C, 'Pull for Door Release', with local alarm sounder CM-XXX-PC For Clear Lift Cover, add suffix 'PC'

Note: Switch configurations indicated are when the pull station is closed/reset. When pull stations are released, switch contacts will be the opposite of those indicated.

'UNIVERSAL' LABELS INCLUDED OPTIONAL SPANISH LABEL

Add suffix 'SP' for Spanish label

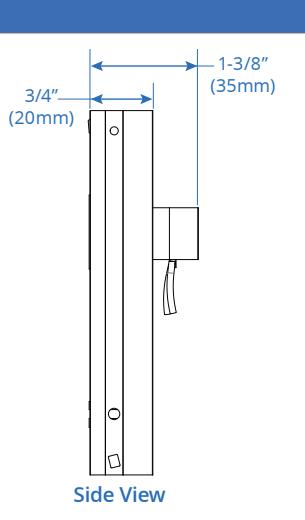

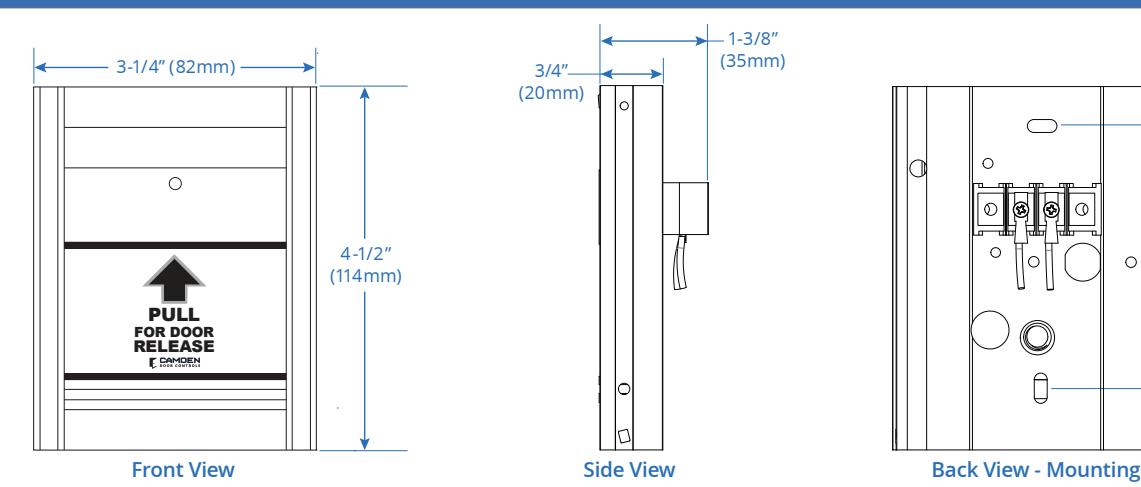

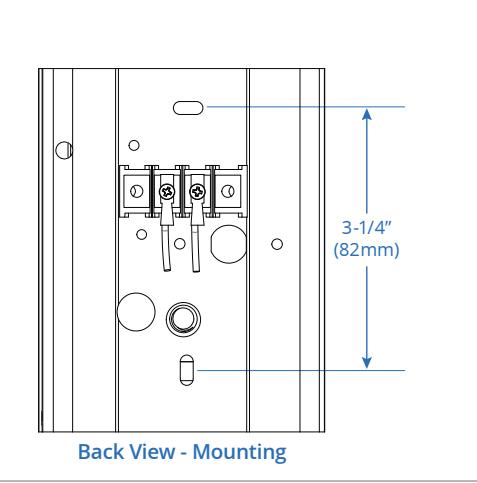

DIMENSIONS
