Door Activation Devices

CM-69SER Manual

INSTALLATION INSTRUCTIONS

THIS PACKAGE INCLUDES:

• (1) Extension Ring
• (1) CM-69S Black Polymer (ABS) Flame and Impact Resistant Enclosure
• (1) Parts Kit

1. GENERAL DESCRIPTION

Camden Door Controls CM-69SER round surface mount box and extension ring can be mounted with the CM-60 series 'all active' heavyduty, ADA compliant door activation switches. These switches are UL/ CSA approved and optional Weatherproof, watertight coating are available. The CM-69SER can also be mounted with the Camden 6'' round, CM-331/42R-SGLR SureWave™ switch.

2. SPECIFICATIONS

	CM-69SER:
Dimensions	6-1/2'' DIA x 3'' D
	(167mm x 75mm)

3. INSTALLATION

ALL ACTIVE SWITCH INSTALLATION:

Firmly mount the Black polymer (ABS) box against a surface or a wall. Place the extension ring over the round enclosure. Align the crescents with the middle standoff of the round box to help keep the ring in place. Screw the two 6-32 x 1-1/4'' screws through the ring and into the round box. Don't screw all the way, leave about 1/4" of room for the switch to be mounted. To place the switch onto the ring, start with the bottom, slide the groove at the bottom of the backplate over the screw then put the top screw through the cut-out at the top of the backplate and slide the switch down. Take a screwdriver or the supplied hex key and tighten the socket head screws, securing the switch in place.

CM-331/42R, SUREWAVE™ INSTALLATION:

Firmly mount the Black polymer (ABS) box against a surface or a wall. Place the extension ring over the round enclosure. Align the two slotted holes on the SureWave™ PCB with the two extension ring mounting standoffs. Use the two 6-32 x 1-1/2'' screws, going through the PCB slotted holes, the extension ring and into the mounted round Enclosure to tighten and keep in place. Use the two 6-32 x 1/2'' Screws, through the faceplate to tighten the SureWave™ PCB.

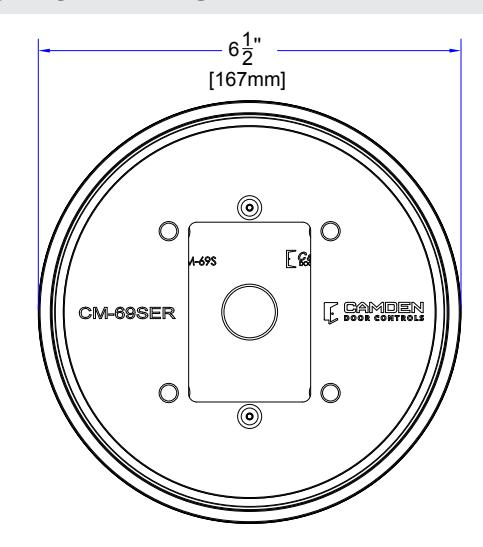

4. CM-69SER SERIES FRONT AND SIDE VIEW

CM-69SER

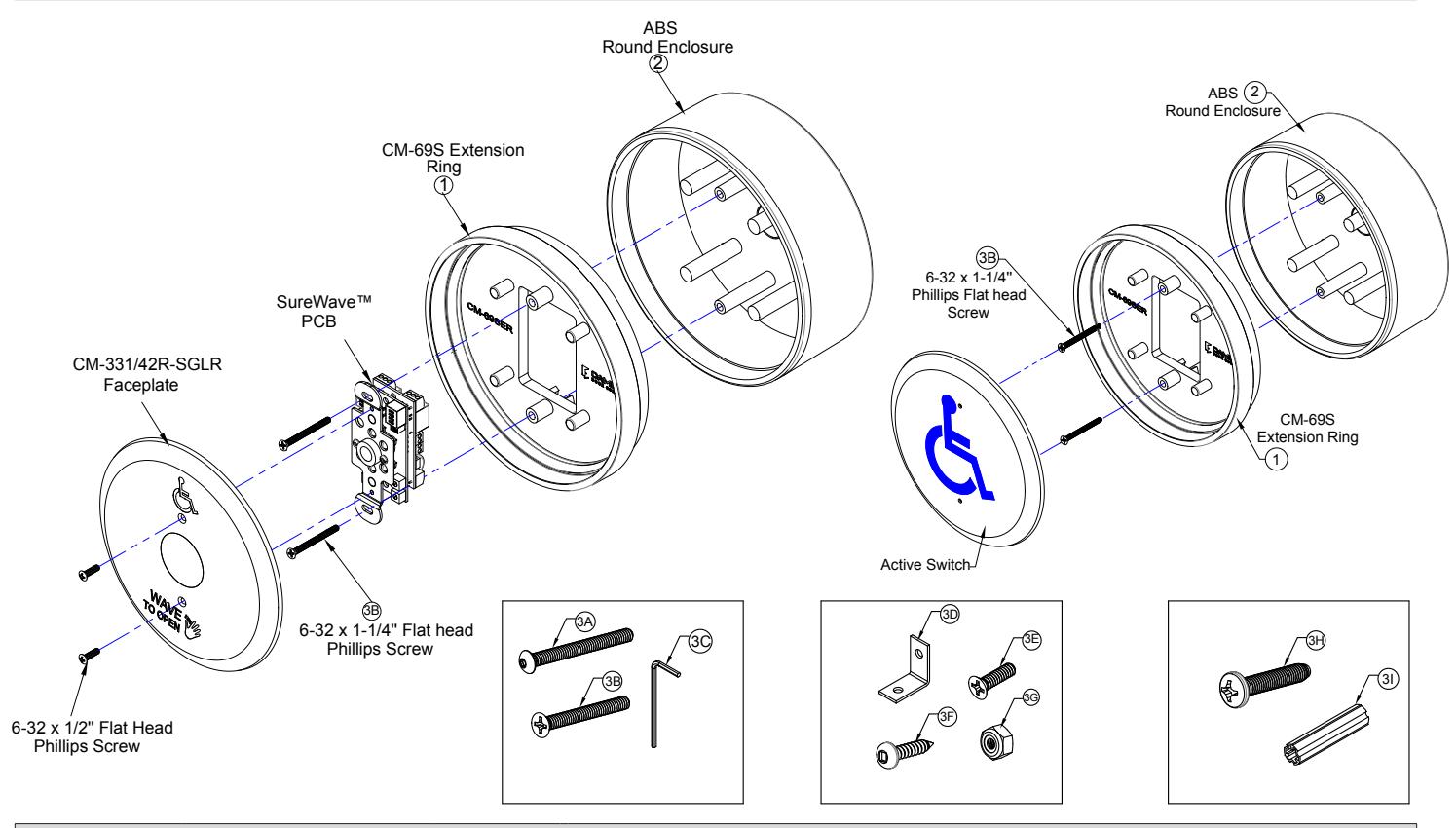

5. PARTS INFORMATION

3E 3C 3H MODEL NUMBERS 3I 3B
ITEM NUMBER	MODEL NUMBER	QTY	3G 3F DESCRIPTION
1.	60-40K002	1	CM-69S EXTENSION RING
2.			CM69S SURFACE, ROUND STANDARD DEPTH, PROVISION FOR WIRELESS, BLACK POLYMER
		60-42C009 1	(ABS) FLAME AND IMPACT RESISTANT, 6-1/2" x 1-3/4" D
PARTS KIT
ITEM NUMBER	PART NUMBER	QTY	DESCRIPTION
3.	1		(A) 6-32 X 1-1/2'' BUTT HEAD SOCKET CAP SCREW (2 Pcs)
			(B) 6-32 X1-1/4'' FLAT HEAD STAINLESS STEEL PHILLIPS SCREW (2 Pcs)
			(C) SMALL HEX KEY, 5/64'' SHORT ARM (1 Pc)
			(D) MOUNT BRACKET 1"X 1" X 1/2" (2 Pcs)
	60-34B097		(E) 6-32 X 1/2'' FLAT HEAD PHILLIPS SCREW (2 Pcs)
	1 1	(F) #6 X 5/8'' FLAT HEAD ROBERTSON SCREW (2 Pcs)
			(G) 6-32 NYLON LOCK NUTS (2 Pcs)
			(H) #10 X 1'' PAN HEAD PHILLIPS WOOD SCREW (4 Pcs)
		(I) GREEN PVC ANCHORS, 10-24 SCREWS (4 Pcs)
