FEATURES

  • IDEAL FOR LOCK-OUT OR EMERGENCY SHUT-DOWN APPLICATIONS

LOCKING MUSHROOM PUSH SWITCHES

• 2 3/8" (60 MM) DIAMETER

CM-6000

• PUSH ON, TURN KEY TO RELEASE

• LARGE LOCKING, RED BUTTONS

  • VANDAL AND TAMPER RESISTANT
  • MOUNTED ON HEAVY 1/4" THICK ALUMINUM PLATE
  • STACKABLE CONTACTS CAN CONTROL 6 DISTINCT FUNCTIONS
  • UL/CSA APPROVED SWITCHES, RATED 6 AMPS @ 30V DC
  • COLOR CODED 18 AWG SPADE CONNECTIONS
  • BRUSHED ALUMINUM FINISH
  • FAST AND EASY TO INSTALL

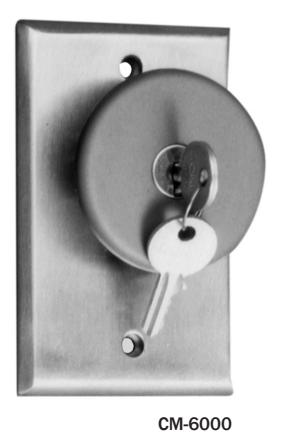

Camden Door Controls CM-6000 Series Locking Push Switches are specially designed and manufactured for lock-out or emergency applications. Once pushed, the button latches, and cannot be reset unless the key is inserted and turned in the center locking cylinder.

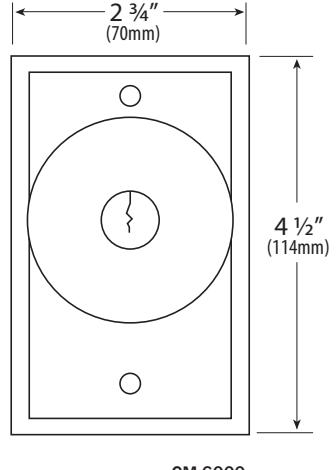

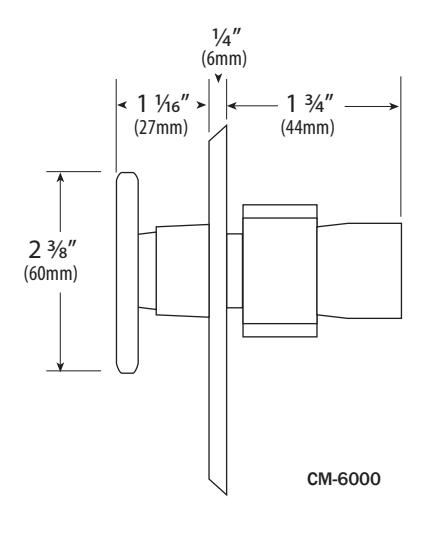

Red buttons have a 2 3/8" (60mm) diameter. They are supplied with a 1/4" thick, brushed aluminum single gang faceplate.

The switches are UL/CSA approved, rated 6 amps @ 30V DC.

Camden Locking Push Switches are ideal for lock-out or emergency shut-down applications. Also for use on emergency doors, fire exits, or other applications where a positive latching action is desired.

CM-6000

ARCHITECTS /ENGINEERS SPECIFICATIONS

The locking push switches to be used throughout the site/complex shall be Camden Door Controls CM-6000 series Locking Exit Switches.

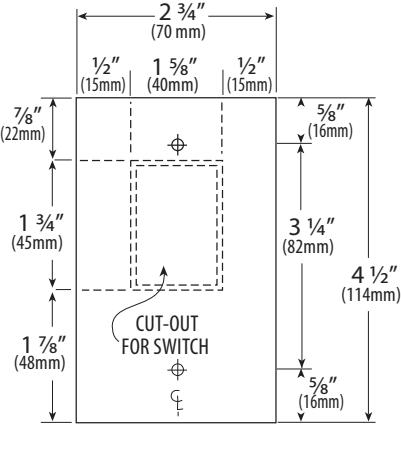

The button shall be 2 3/8" (60mm) in diameter, and designed to be easy to activate. The switch shall have a positive latching action. Once the button is depressed, it locks in place, and cannot be reset unless a key is inserted and turned, in the middle of the switch. The faceplate shall be constructed of 1/4" thick aluminum, and shall be supplied with stainless steel Torx or snake eye security screws.

Rating for all electrical contacts shall be a minimum of 6 amps @ 30 VDC. The switch used shall be a UL/CSA approved type, supplied with color coded leads. The switch assembly shall be modular, allowing for up to six distinctive functions upon activation of the push button.

ORDERING INFORMATION

All CM-6000 Push Switches come with a 2 3/8" (60mm) red locking palm button, brushed aluminum faceplate, 2 socket/slotted screws, and 2 tamperproof screws.

PUSH ON/KEY TO RELEASE, N/O, SPST MAINTAINED, RED
PUSH ON/KEY TO RELEASE, N/C, SPST MAINTAINED, RED
PUSH ON/KEY TO RELEASE, N/O AND N/C, DPST MAINTAINED, RED

FOR COLOR, ADD:

'B' FOR BLACK BUTTON (SPECIAL ORDER)

CM-6000
