Door Activation Devices
CM-6000 Series Locking Push Buttons
INSTALLATION INSTRUCTIONS
THIS PACKAGE INCLUDES:
- (1) 2- 3/8'' (60mm) diameter Button with key to release.
- (1) Single Gang Die-cast Aluminum Faceplate
- (1) Normally open and/or Normally closed Contact block.
CM-6000
1. GENERAL DESCRIPTION
CM-6000 Series Locking push buttons are specially designed and manufactured for lock-out or emergency applications. Once pushed, the button latches and cannot be reset unless the key is inserted and turned in the center locking cylinder
Camden Door Controls CM-6000 Series Switches are heavy duty push buttons designed for industrial and commercial applications. Buttons are 2 3/8" (60mm) in diameter and are available in red. The faceplate is 1/4" [6mm] thick brushed aluminum, 4 1/2''[114mm] in height and 2 3/4" [70mm] in width. Optional duranodic (US40) finish is also available.
CM-6000 Series switches utilize UL/CSA listed switch components. Finished models comply with UL61058 Standard for Switches. Rated 6 amps @ 30 VDC, with maintained operation.
2. SPECIFICATIONS
| Voltage | 12/24 VDC |
|---|---|
| Contact Rating | 6A @ 30 VDC |
| Temperature Range | -13°F to 158°F (-25°C to 75°C) |
| Switch Type | Maintained |
| Standard Finish | Brushed Aluminum |
| Dimensions |
CM-6000:
4 ½'' H x 2 ¾'' W x 1 ½''D (114mm X 70mm x 38mm) |
3. APPLICATION
Camden CM-6000 Series Switches are ideal for lock-out or emergency shut-down applications. They can be surface or flush mounted. Camden CM-6000 Series Switches are designed for use on emergency doors, fire exits, or other applications where positive latching action is desired.
4. INSTALLATION
The CM-6000 series contact block is a SPST (Single Pole Single Throw). It can be ordered with either a Normally Open or Normally Closed contact block. Each contact block is color coded. A contact block with a green actuator is Normally Open, where the red actuator is Normally Closed. Both types are available in a Momentary configuration.
The CM-6000 series comes with one contact block but can easily have three attached across the back of the button. If the application calls for more than three functions to happen on activation, then each contact block can be stacked with another doubling the number of functions on activation.
Installation is very simple by inserting the wiring into the top and the bottom of the contact block and securing them with the two screw terminals.

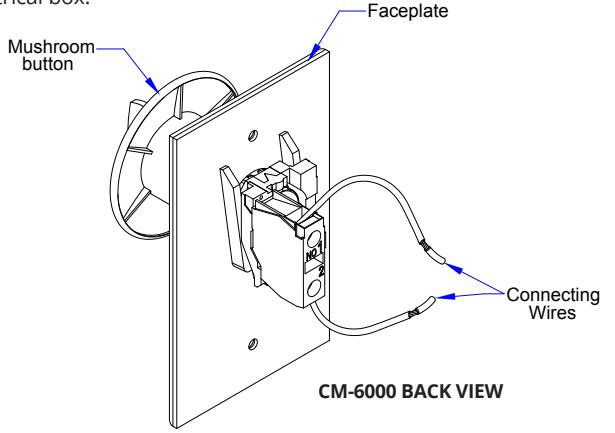

Each contact block has its screw terminals numbered so that the provided diagrams can be followed with ease and clarity. The CM-6000 Series are supplied with a 1-3/4'' brushed aluminum faceplate for door jamb mounting and can be easily be mounted to a single gang electrical box.
5. WIRING
Momentary: When the switch is pressed the current pole will change to the opposite state until released.
Maintained: When the switch is pressed it will provide the opposite pole until the button is pressed again
| WIRING LAYOUT & COLOR CODING | |||
|---|---|---|---|
| SWITCH TYPE | SPST N.O. | SPST N.C. | |
| COMMON | BLACK | BLACK | |
| NORMALLY OPEN | BLACK | ||
| NORMALLY CLOSED | BLACK | ||

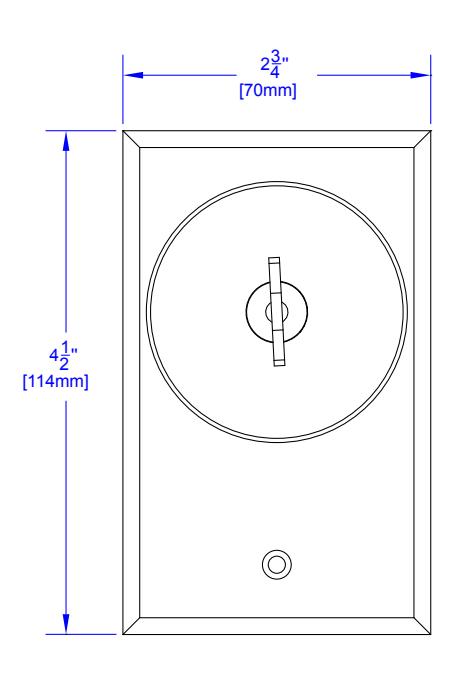

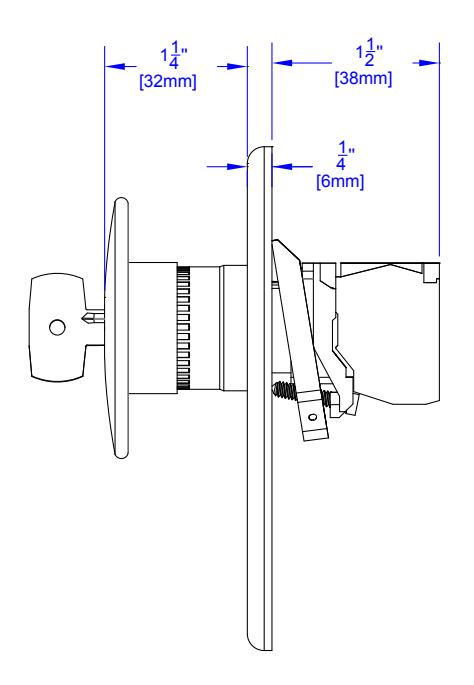

6. CM-6000 SERIES FRONT AND SIDE VIEW

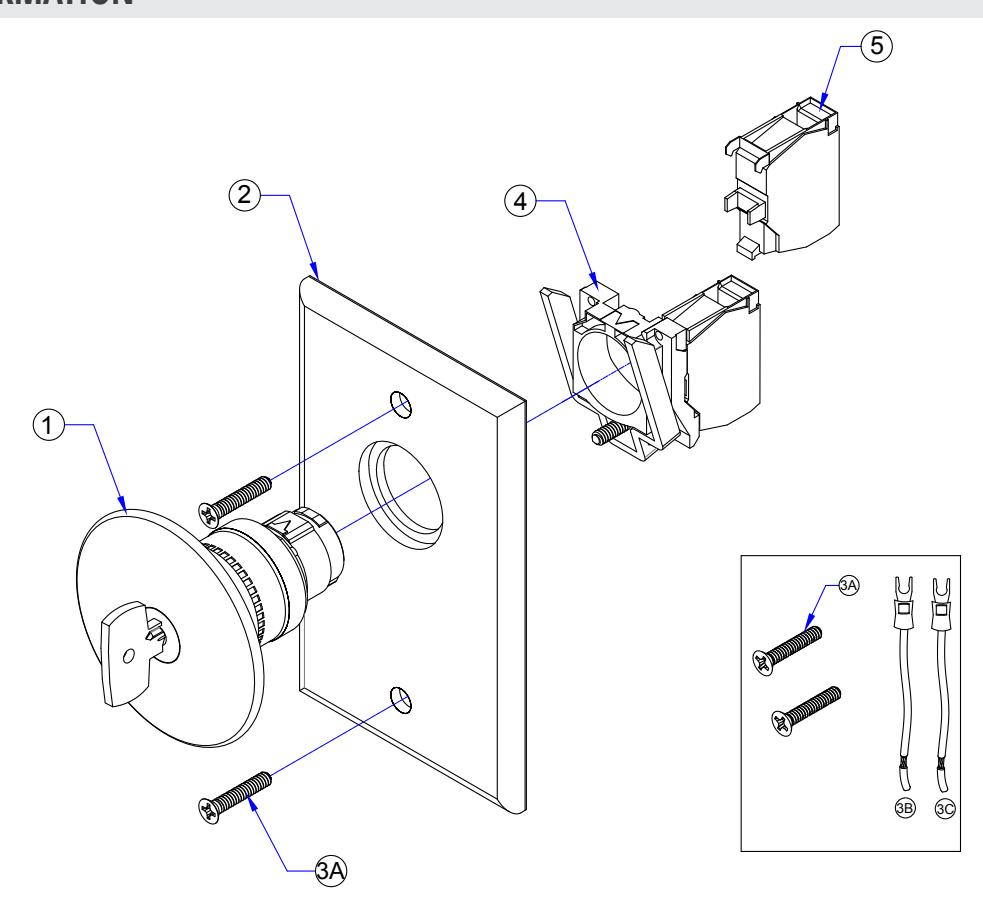

7. PARTS INFORMATION
| ORDERING INFORMATION FOR REPLACEMENT PARTS | ||||||
|---|---|---|---|---|---|---|
|
ITEM
NUMBER |
PART NUMBER | DESCRIPTION | ||||
| 1. | 60-66A012 | RED 2-3/8" (60mm) MAINTAINED LOCKING MUSHROOM BUTTON WITH KEY TO RELEASE. | ||||
| 2 60 414002 | SINGLE GANG DIE-CAST ALUMINUM FACEPLATE | |||||
| 2. | 2. 60-41A003 | 4 1/2"H x 2 3/4"W x 1/4"D (114mm x 70mm x 6mm) | ||||
| PARTS KIT | ||||||
|
ITEM
NUMBER |
PART NUMBER | DESCRIPTION | ||||
| FOR N-C & N-O CONTACTS | (A) 6-32 x 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW | |||||
| 60-34B024 | (B) 6" ORANGE WIRE WITH INSULATED SPADE CONNECTOR | |||||
| (C) 6" BLUE WIRE WITH INSULATED SPADE CONNECTOR | ||||||
| FOR N-O CONTACTS | (A) 6-32 x 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW | |||||
| 3. | 60-34B025 | (B) 6" BLUE WIRE WITH INSULATED SPADE CONNECTOR | ||||
| 00 0 13020 | (C) 6" GREY WIRE WITH INSULATED SPADE CONNECTOR | |||||
| FOR N-C CONTACTS | (A) 6-32 x 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW | |||||
| 60-34B026 | (B) 6" ORANGE WIRE WITH INSULATED SPADE CONNECTOR | |||||
| (C) 6" GREY WIRE WITH INSULATED SPADE CONNECTOR | ||||||
| CONTACT OPTIONS | ||||||
|
ITEM
NUMBER |
MODEL NUMBER | DESCRIPTION | ||||
| CM-6030 | RED, PUSH TO LOCK, KEY TO RELEASE, NORMALLY OPEN, MAINTAINED | |||||
| 4. | CM-6040 | RED, PUSH TO LOCK, KEY TO RELEASE, NORMALLY CLOSED, MAINTAINED | ||||
| CM-6050 | RED, PUSH TO LOCK, KEY TO RELEASE, NORMALLY OPEN AND NORMALLY CLOSED, MAINTAINED | |||||
| INDIVIDUAL CONTACT OPTIONS | ||||||
|
ITEM
NUMBER |
PART NUMBER |
ITEM
NUMBER |
ITEM NUMBER | |||
| 60-66C000 | 1 | NORMALLY OPEN CONTACT BLOCK | ||||
| 5. | 60-66C001 | 1 | NORMALLY CLOSED CONTACT BLOCK | |||
| 60-66C002 | 1 | NORMALLY OPEN AND NORMALLY CLOSED CONTACT BLOCK | ||||
| COMPATIBLE MOUNTING BOXES OPTION | ||||||
| ITEM |
PART NUMBER
FOR SINGLE GANG |
DESCRIPTION | ||||
| NUMBER | ||||||
| 6. | CM-31 | SLEEVE COVER FOR STANDARD 2 3/4" X 4 1/4" (69mm X 110mm) SURFACE ELECTRICAL BOX. HEAVY GAUGE STAINLESS STEEL | ||||
| CM-CPC1 | VANDAL AND WEATHER RESISTANT CLEAR LIFT COVER | |||||
| CM-34D | SURFACE MOUNT BOX WITH EXTRA DEEP. HEAVY DUTY GREY POLYMER 4-1/2"W x 2-3/4"H x 3"D [117mm x 70mm x 76mm] | |||||
| CM-34AL | SURFACE MOUNT BOX WITH STANDARD DEPTH AND THREADED CONDUIT ENTRY. HEAVY DUTY CAST ALUMINUM 4-1/2"W x 2-3/4"H x 1-3/4"D [144mm x 70mm x 47mm] | |||||
| CM-66 |
FLUSH BOX & DRESS PLATE, STANDARD DEPTH BOX WITH 7" x 7" DRESS PLATE
HEAVY GAUGE STAINLESS STEEL |
|||||
Call: 1.877.226.3369 / 905.366.3377
File: CM-6000_Manual.indd Revision: August 18th 2020 Part No: # 40-82B253
