Door Activation Devices
CM-450RL-7724-CPC Series 1 5/8" Pushbutton, Stainless Steel Faceplate
INSTALLATION INSTRUCTIONS
THIS PACKAGE INCLUDES:
- (1) 1 5/8" (40 mm) diameter button and (1) Vandal resistant free-spinning, heavy-duty button
- (1) Vandal resistant 18-gauge stainless steel faceplate
- (1) Normally open and/or Normally closed Contact block
CM-450RL-7724-CPC
1. GENERAL DESCRIPTION
The CM-450RL-7724-CPC series comes in a Stainless Steel Single Gang Faceplate. Graphic Options can be added to either the faceplate or the button face. An assortment of back boxes is also available for each style.
2. SPECIFICATIONS
| Voltage | 12-24V AC/DC | ||
|---|---|---|---|
| Contact Rating | 6A @ 30V AC/DC | ||
| Switch Type | Momentary & Maintained | ||
| Standard Finish | US32/C32D | ||
| Dimensions |
CM-450RL-7724-CPC
6'' H x 3 1/2''W x 3 1/4''D [149mm x 89mm x 83mm] |
||
3. INSTALLATION
The CM-450RL-7724-CPC Contact block comes with a normally open and normally closed contact block. Each contact block is color coded. A contact block with a green actuator is Normally Open, where the red actuator is Normally Closed.
The CM-450RL-7724-CPC can easily have three attached across the back of the button. If the application calls for more than three functions to happen on activation, then each contact block can be stacked with another doubling the number of functions on activation.
Installation is very simple by inserting the wiring into the top and the bottom of the contact block and securing them with the two screw terminals.
Each contact block has its screw terminals numbered so that the provided diagrams can be followed with ease and clarity.

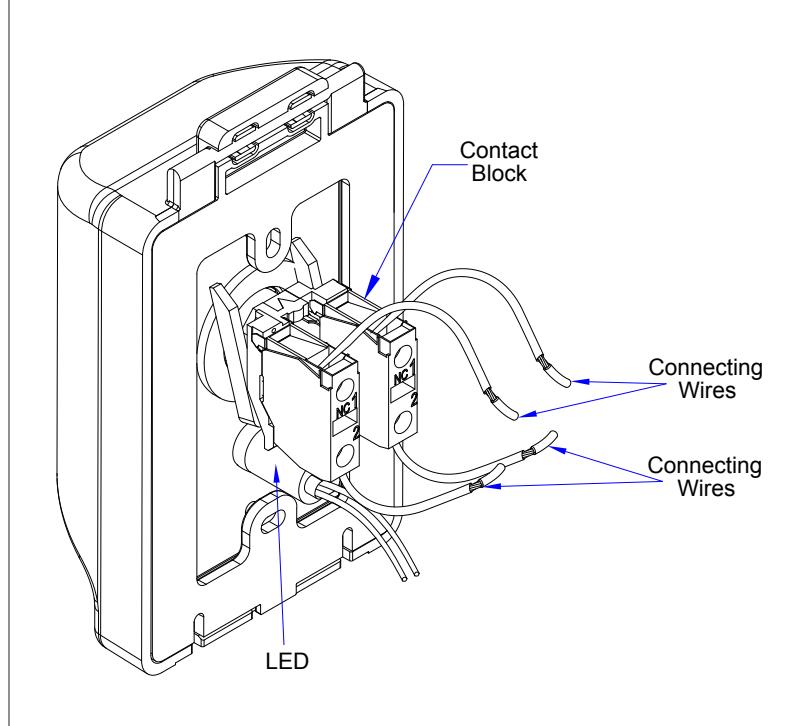

CM-450RL-7724-CPC BACK VIEW
4. WIRING

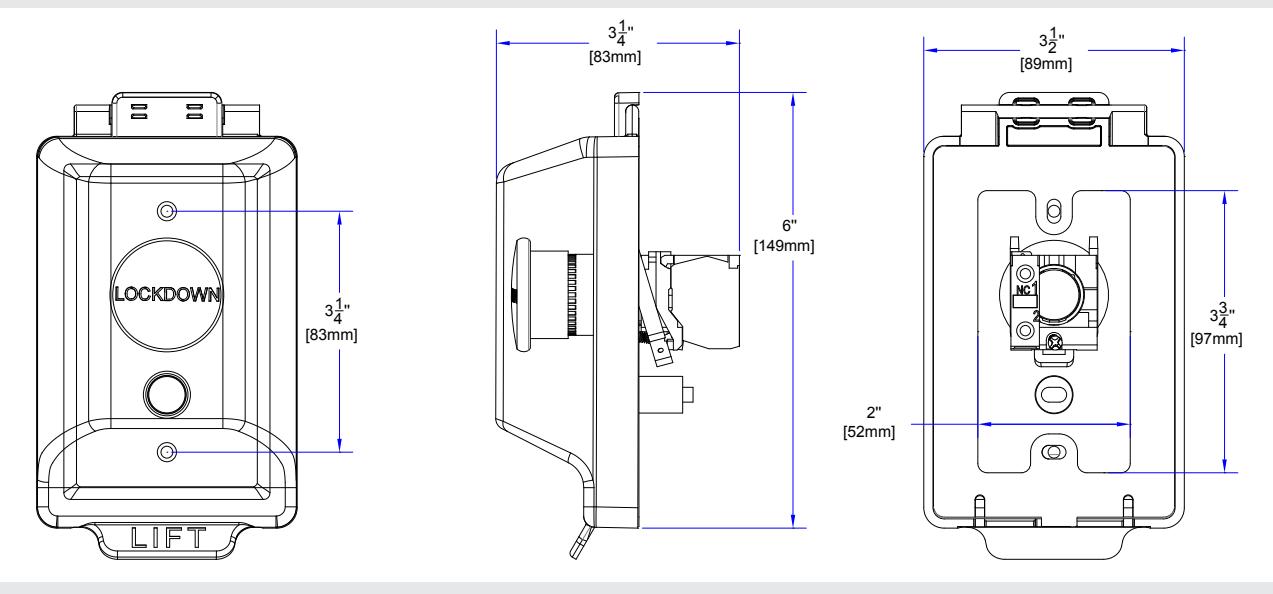

6. CM-450 SERIES FRONT AND SIDE VIEW

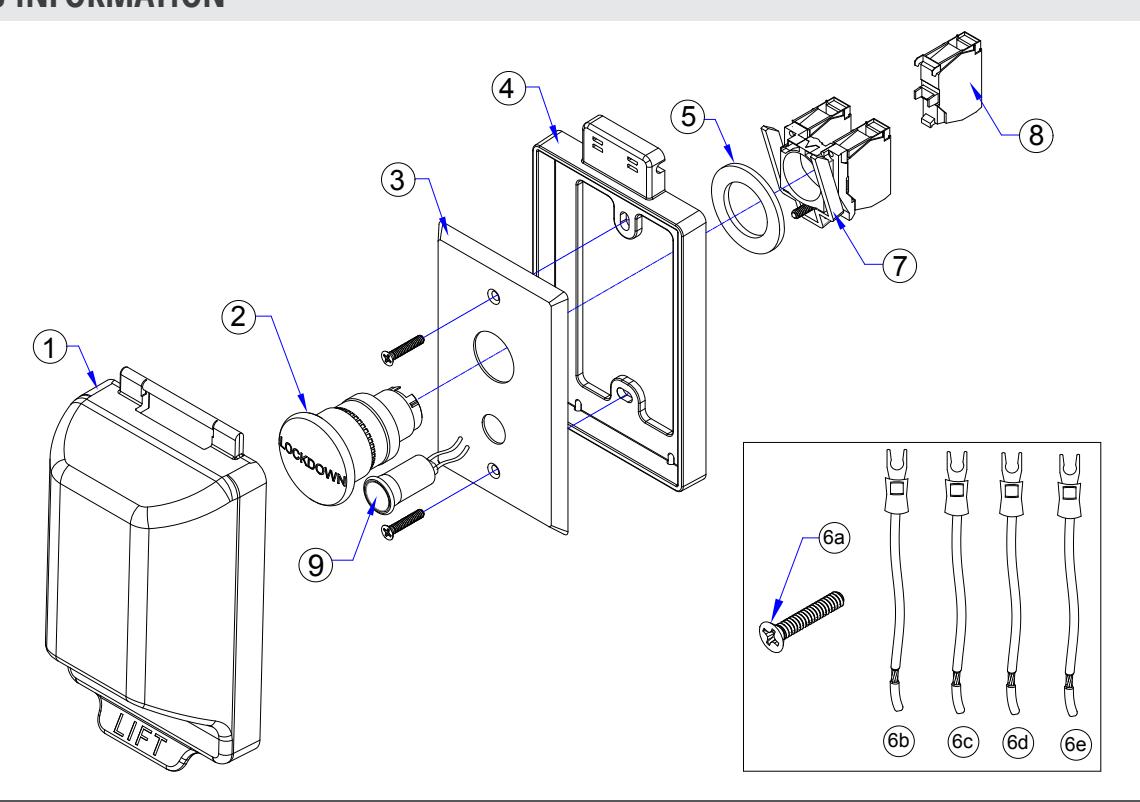

7. PARTS INFORMATION
INSTALLATION INSTRUCTIONS
| ORDERING INFORMATION FOR REPLACEMENT PARTS | |||||
|---|---|---|---|---|---|
| ITEM NUMBER | PART NUMBER | DESCRIPTION | |||
| 1. | 60-40D018 | CM-CPC1 Clear Plastic Cover Molded Screened "LIFT | |||
| 2. | 60-66A002-LD | RED MOMENTARY MUSHROOM BUTTON (DIA. 1 5/8'') WITH ''LOCKDOWN'' Lasered | |||
| 3. | 60-49H009 |
STAINLESS STEEL SINGLE GANG FACE PLATE
4 1/2''H x 2 3/4''W x 1 3/4''D (114mm x 70mm x 44mm)) |
|||
| 4. | 60-66A002 | CLEAR PLASTIC WALL PLATE MOLDED | |||
| 5. | 50-53U001A01 | FLAT ZINC WASHER 0.938ID x 1.47OD x 0.100TH | |||
| PARTS KIT | |||||
| ITEM NUMBER | PART NUMBER | DESCRIPTION | |||
| FOR N-C & N-O CONTACTS | (A) 6-32 x 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW | ||||
| 60-34B024 | (B) 6'' ORANGE WIRE WITH INSULATED SPADE CONNECTOR | ||||
| (C) TWO (2) 6'' GREY WIRE WITH INSULATED SPADE CONNECTORS | |||||
| (D) 6'' BLUE WIRE WITH INSULATED SPADE CONNECTOR | |||||
| 6. | FOR N-O CONTACT |
(A) 6-32 x 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW
(B) 6'' BLUE WIRE WITH INSULATED SPADE CONNECTOR |
|||
| 60-34B025 | (C) 6'' GREY WIRE WITH INSULATED SPADE CONNECTOR | ||||
| FOR N-C CONTACTS | (A) 6-32 x 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW | ||||
| 60-34B026 |
(B) 6'' ORANGE WIRE WITH INSULATED SPADE CONNECTOR
(C) 6'' GREY WIRE WITH INSULATED SPADE CONNECTOR |
||||
| MODEL NUMBER | |||||
|---|---|---|---|---|---|
| ITEM NUMBER | MODEL NUMBER | QTY | DESCRIPTION | ||
| 7. | CM-450RL-7724-CPC | 1 | NORMALLY OPEN & NORMALLY CLOSED CONTACT BLOCK | ||
| INDIVIDUAL CONTACT OPTIONS | |||||
| ITEM NUMBER | PART NUMBER | QTY | DESCRIPTION | ||
| 8. | CM-4000/60N | 1 | NORMALLY OPEN CONTACT BLOCK | ||
| CM-4000/61N | 1 | NORMALLY CLOSED CONTACT BLOCK | |||
| ITEM NUMBER | PART NUMBER | QTY | DESCRIPTION | ||
| 9. | 60-82B155 | 1 | CM-7724 RED FLASHING 1/2" 24 VOLT LED | ||
