Door Activation Devices
CM-4000 Series Push Buttons
INSTALLATION INSTRUCTIONS
THIS PACKAGE INCLUDES:
- (1) 1 5/8" (40 mm) diameter push button.
- (1) 1/4" thick brushed aluminum faceplate
- (1) Normally open and/or normally closed contact block.
- (1) Parts kits
CM-4100
CM-4000
1. GENERAL DESCRIPTION 4. INSTALLATION
Camden Door Controls CM-4000 Series Switches are heavy duty push buttons designed for industrial and commercial applications. Buttons are 1 5/8" (40mm) in diameter and are available in red, blue or green. The faceplate is 1/4" [6mm] thick brushed aluminum. Optional duranodic (US40) finish is also available.
CM-4000 Series switches utilize UL listed switch components. Finished models comply with UL61058 Standard for Switches. Rated 6 amps @ 30V AC/DC, either momentary or maintained operation.
2. SPECIFICATIONS
| Voltage | 12/24 VDC |
|---|---|
| Contact Rating | 6A @ 30 VDC |
| Temperature Range | -13°F to 158°F (-25°C to 70°C) |
| Switch Type | Momentary, Maintained |
| Standard Finish | Brushed Aluminum |
| Dimensions |
CM-4000:
4 ½'' H x 2 ¾'' W x 1 ½''D (114mm X 70mm x 38mm) |
|
CM-4000N
4 ½'' H x 1 ¾'' W x 1 ½''D (114mm X 44mm x 38mm) |
3. APPLICATION
Camden CM-4000 Series Switches are ideal for high traffic areas such as building front entrances and exits, as well as institutions, such as hospitals. They can be surface, flush, or mullion mounted.
Camden CM-4000 Series Switches are designed to control electric locks, electro-magnetic locks, electric strikes, automatic doors, and handicap operators. They may also be used for automatic doors, shunting, bypassing alarms, request-to-exit, timed functions, and many other applications.
The switches are made for high frequency usage, in an indoor or outdoor environment. Camden Push Switches are versatile, and are supplied in various configurations to suit commercial, industrial, and residential applications.
The CM-4000 series can be ordered with either a Normally Open or Normally Closed contact block. Each contact block is color coded. A contact block with a green actuator is Normally Open, where the red actuator is Normally Closed. Both types are available in a Momentary configuration.
The CM-4000 series comes with one contact block but can easily have three attached across the back of the button. If the application calls for more than three functions to happen on activation, then each contact block can be stacked with another, doubling the number of functions on activation.

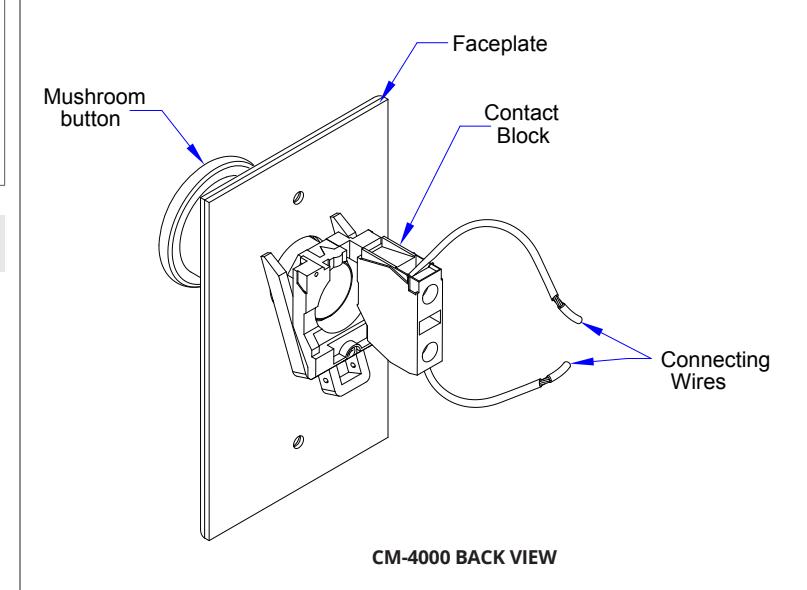

Installation is very simple by inserting the wiring into the top and the bottom of the contact block and securing them with the two screw terminals.
Each contact block has its screw terminals numbered so that the provided diagrams can be followed with ease and clarity. The CM-4000 Series are supplied with a 1-3/4'' brushed aluminum faceplate for door jamb mounting and can be easily be mounted to a single gang electrical box.
5. WIRING
| WIRING LAYOUT & COLOR CODING | |||
|---|---|---|---|
| SWITCH TYPE | SPST N.O. | SPST N.C. | |
| COMMON | BLACK | BLACK | |
| NORMALLY OPEN | BLACK | ||
| NORMALLY CLOSED | BLACK | ||
Momentary: When the switch is pressed the current pole will change to the opposite state until released.
Maintained: When the switch is pressed it will provide the opposite pole until the button is pressed again

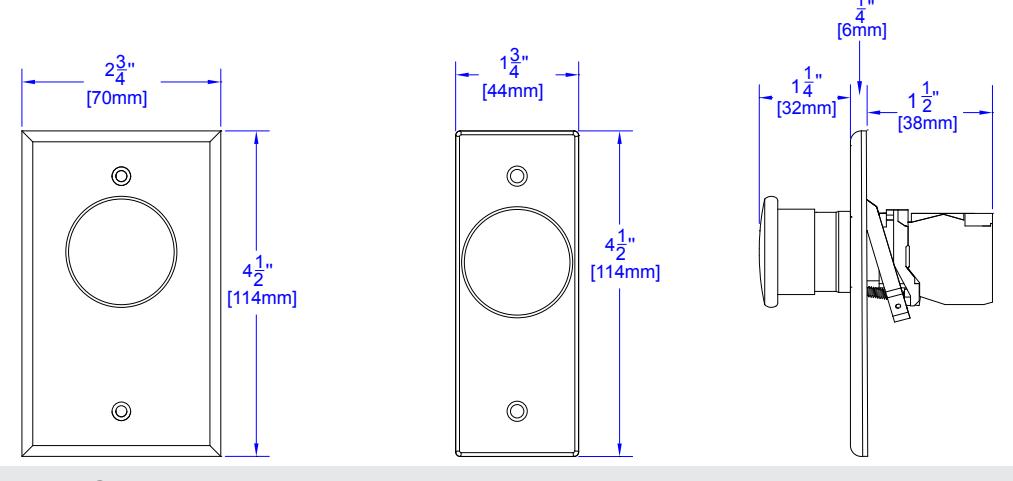

6. CM-4000 AND CM-4100 SERIES FRONT AND SIDE VIEW

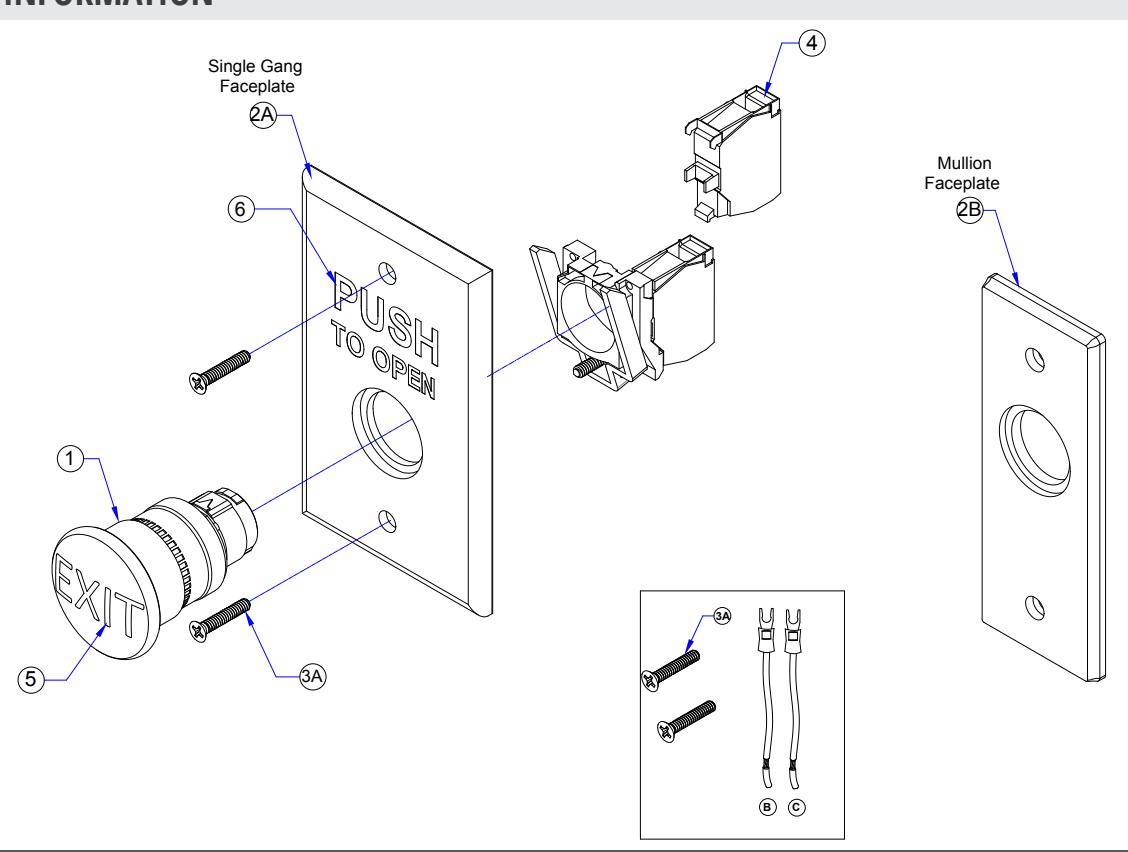

7. PARTS INFORMATION
| MODEL NUMBERS | ||||||
|---|---|---|---|---|---|---|
| MODEL NUMBER | ||||||
|
SINGLE
GANG |
MULLION | QTY | DESCRIPTION | |||
| CM-4000 | CM-4100 | 1 | NORMALLY OPEN CONTACT BLOCK | |||
| CM-4010 | CM-4110 | 1 | NORMALLY CLOSED CONTACT BLOCK | |||
| CM-4020 | CM-4120 | 1 | NORMALLY OPEN & NORMALLY CLOSED CONTACT BLOCK | |||
| CM-4030 | CM-4130 | 1 | NORMALLY OPEN CONTACT BLOCK | |||
| CM-4040 | CM-4140 | 1 | NORMALLY CLOSED CONTACT BLOCK | |||
| CM-4050 | CM-4150 | 1 | NORMALLY OPEN & NORMALLY CLOSED CONTACT BLOCK | |||
| ORDERING INFORMATION FOR REPLACEMENT PARTS | ||||
|---|---|---|---|---|
|
ITEM
NUMBER |
PART NUMBER | DESCRIPTION | ||
| 1 | 60-66A000 | RED MOMENTARY MUSHROOM BUTTON (DIA. 1 5/8'') | ||
| 60-66A005 | BLUE MOMENTARY MUSHROOM BUTTON (DIA. 1 5/8'') | |||
| 60-66E006 | GREEN MOMENTARY MUSHROOM BUTTON (DIA. 1 5/8'') | |||
| 60-66A002 | RED MAINTAINED MUSHROOM BUTTON (DIA. 1 5/8'') | |||
| DIE-CAST ALUMINUM SINGLE GANG FACE PLATE | ||||
| A | 60-41A003 | 4 1/2''H x 2 3/4''W x 1 3/4''D (114mm x 70mm x 44mm) | ||
| 2 | DIE-CAST ALUMINUM MULLION FACE PLATE | |||
| B | 60-41A004 | 4 1/2''H x 1 3/4''W x 1 3/4''D (114mm x 44mm x 44mm) | ||
| PARTS KIT | ||||
|
ITEM
NUMBER |
PART NUMBER | DESCRIPTION | ||
| FOR N-C & N-O CONTACTS | ||||
| (A) 6-32 x 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW | ||||
| (B) 6'' ORANGE WIRE WITH INSULATED SPADE CONNECTOR | ||||
| 60-34B024 | (C) 6'' BLUE WIRE WITH INSULATED SPADE CONNECTOR | |||
| FOR N-O CONTACTS | (A) 6-32 x 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW | |||
| 3. | (B) 6'' BLUE WIRE WITH INSULATED SPADE CONNECTOR | |||
| 60-34B025 | (C) 6'' GREY WIRE WITH INSULATED SPADE CONNECTOR | |||
| FOR N-C CONTACTS | ||||
| (A) 6-32 x 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW | ||||
| 60-34B026 | (B) 6'' ORANGE WIRE WITH INSULATED SPADE CONNECTOR | |||
| (C) 6'' GREY WIRE WITH INSULATED SPADE CONNECTOR | ||||
| INDIVIDUAL CONTACT OPTIONS | ||||
|---|---|---|---|---|
|
ITEM
NUMBER |
PART NUMBER | QTY | ITEM NUMBER | |
| 60-66C000 | 1 | NORMALLY OPEN CONTACT BLOCK | ||
| 4. | 60-66C001 | 1 | NORMALLY CLOSED CONTACT BLOCK | |
| 60-66C002 | 1 | NORMALLY CLOSED CONTACT AND NORMALLY OPEN BLOCK | ||
| BUTTON ENGRAVED (IN WHITE) OPTIONS | ||||
|
ITEM
NUMBER |
MODEL NUMBER | DESCRIPTION | ||
| CM-xxxE | EXIT | |||
| CM-xxxS | EXIT / SORTIE | |||
| CM-xxxS | SORTIE | |||
| 5. | CM-xxxESA | EXIT / SALIDA | ||
| CM-xxxH | HANDICAP LOGO | |||
| CM-xxxSA | SALIDA | |||
| FACE PLATE ENGRAVED (IN BLACK) OPTIONS | ||||
|
ITEM
NUMBER |
MODEL NUMBER | DESCRIPTION | ||
| CM-xxx/3 | PUSH TO OPEN | |||
| CM-xxx/3F | POUSSEZ POUR OUVRIR | |||
| 6. | CM-xxx/3S | EMPUJE PARA ABRIR | ||
| CM-xxx/7 | PUSH TO EXIT | |||
| CM-xxx/7F | POUSSEZ POUR SORTIR | |||
| CM-xxx/8 | PUSH TO LOCK | |||
| COMPATIBLE MOUNTING BOXES OPTION | ||||
| PART NUMBER | DESCRIPTION | |||
| CM-34AL |
SURFACE MOUNT BOX WITH STANDARD DEPTH AND THREADED CONDUIT ENTRY. HEAVY DUTY CAST ALUMINUM
2-3/4"H X 4-1/2"W X 1-3/4"D [70MM X 144MM X 47MM], 2-3/4"H X 4-1/2"W X 1-3/4"D [70MM X 144MM X 47MM] FLUSH BOX & DRESS PLATE, STANDARD DEPTH BOX WITH 7'' X 7'' DRESS PLATE HEAVY GAUGE STAINLESS STEEL SLEEVE COVER FOR STANDARD 2 3/4" X 4 1/4" (69MM X 108MM) SURFACE ELECTRICAL BOX. HEAVY GAUGE STAINLESS STEEL |
|||
| CM-66 | ||||
| CM-31 | ||||
| CM-CPC1 | VANDAL AND WEATHER RESISTANT CLEAR LIFT COVER | |||
| CM-34BL | SINGLE GANG BLACK ABS BOX, SURFACE MOUNT 4 1/2"H X 2 7/8" W X 1 3/4"D (117MM X 73MM X 44MM) | |||
| CM-34D |
SURFACE MOUNT BOX, EXTRA DEPTH HEAVY DUTY GREY POLYMER
4 1/2''H x 2 3/4''W x 1 3/4''D [114mm x 70mm x 44mm] |
|||
|
FOR CM-4000
NARROW SERIES |
||||
| CM-23D |
SURFACE BOX WITH EXTRA DEPTH, FLAME AND IMPACT RESISTANT BLACK POLYMER (ABS)
4 1/2"H X 1 3/4" W X 1 1/2"D [114MM X 44MM X 38MM] |
|||
