Door Activation Devices
CM-400 Series 1 5/8" Pushbutton, Stainless Steel Faceplate
INSTALLATION INSTRUCTIONS
CM-400
PACKAGE CONTENTS
- (1) 1 5/8" (40 mm) diameter and free-spinning, heavy-duty button
- (1) Vandal resistant 18-gauge stainless steel faceplate
- (1) Normally open and/or Normally closed, Contact block
- (1) Parts kit
1. GENERAL DESCRIPTION
The CM-400 series comes in three different styles of faceplates (Single Gang, Double Gang and Mullion). Graphic Options can be added to either the faceplate or the button face. An assortment of mounting boxes is also available for each style.
2. SPECIFICATIONS
| Voltage | 12-24V AC/DC |
|---|---|
| Contact Rating | 6A @ 30V AC/DC |
| Switch Type | Momentary & Maintained |
| Standard Finish | US32/C32D |
| Dimensions |
CM-400:
4 1/2"H x 2 3/4"W x 1 3/4"D (114mm x 70mm x 44mm) |
|
CM-400N:
4 1/2"H x 1 3/4"W x 1 3/4"D (114mm x 44mm x 44mm) |
|
|
CM-400W:
4 1/2" H x 4 1/2"W x 1 3/4" D (114mm x 114mm x 44mm) |
3. APPLICATION
The CM-400 Series is designed to control overhead doors, electric locks, electromagnetic locks, electric strikes and automatic doors. They may also be used for shunting, bypassing alarms, request to exit, timed functions, and many other applications.
They are made for high frequency usage, in an indoor or outdoor environment. Easily visible, they are available with narrow one gang or two gang stainless steel mounting plates.
4. INSTALLATION
The CM-400 series can be ordered with either a Normally Open or Normally Closed contact block. Each contact block is color coded. A contact block with a green actuator is Normally Open, while the red actuator is Normally Closed. Both types are available in a Momentary configuration.
The CM-400 series comes with one contact block but can easily have three attached across the back of the button. If the application calls for more than three functions to happen on activation, then each contact block can be stacked with another doubling the number of functions on activation.
Installation is very simple by inserting the wiring into the top and the bottom of the contact block and securing them with the two screw terminals.
Each contact block has its screw terminals numbered so that the provided diagrams can be followed with ease and clarity.

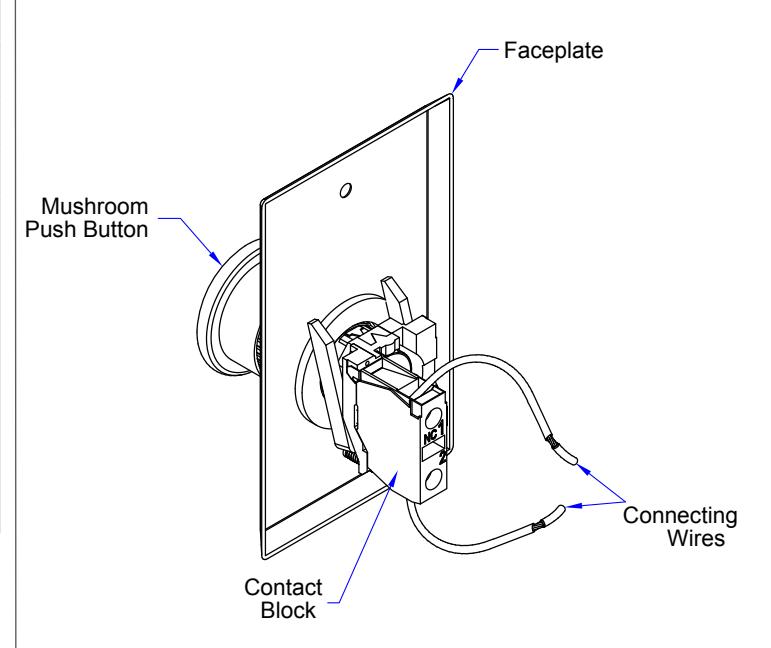

CM-400 BACK VIEW
CM-400 SERIES 1 5/8" PUSHBUTTON, STAINLESS STEEL FACEPLATE
INSTALLATION INSTRUCTIONS
5. WIRING
| WIRING LAYOUT & COLOR CODING | |||||
|---|---|---|---|---|---|
| SWITCH TYPE | SPST N.O. | SPST N.C. | |||
| COMMON | BLACK | BLACK | |||
| NORMALLY OPEN | BLACK | ||||
| NORMALLY CLOSED | BLACK | ||||
Momentary: When the switch is pressed the current pole will change to the opposite state until released.
Maintained: When the switch is pressed it will provide the opposite pole until the button is pressed again.
Switch
1.5 k ohms
Resistor
Bi-Color LED
24 VDC
6. OPTIONAL WIRING

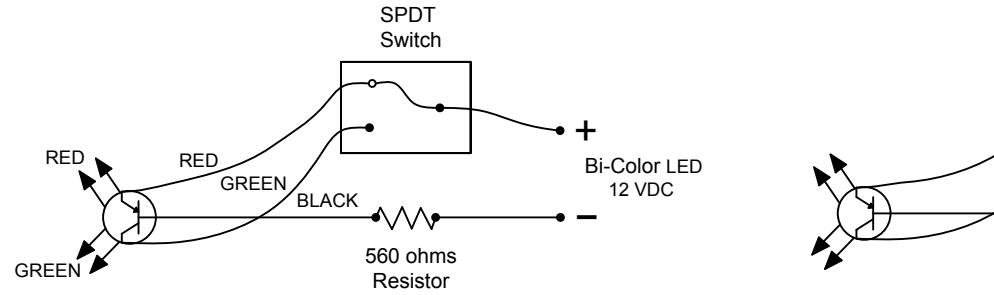

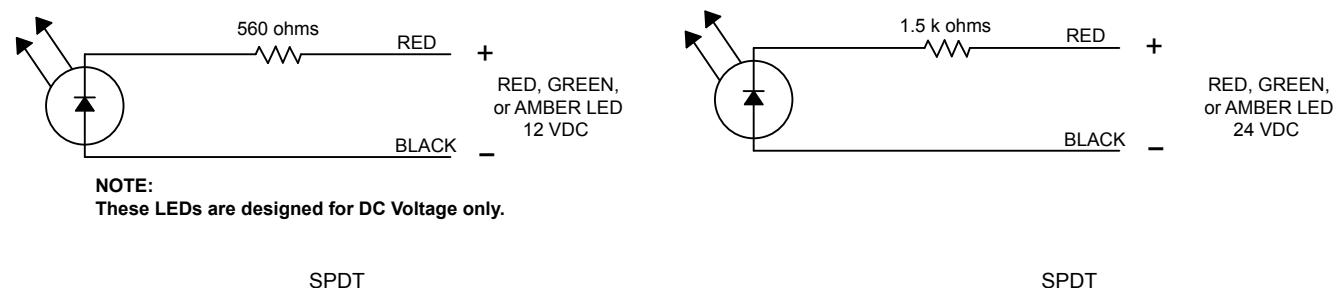

Key Switches may be ordered with optional LED's. These drawings show the various wiring configurations of the LED's.

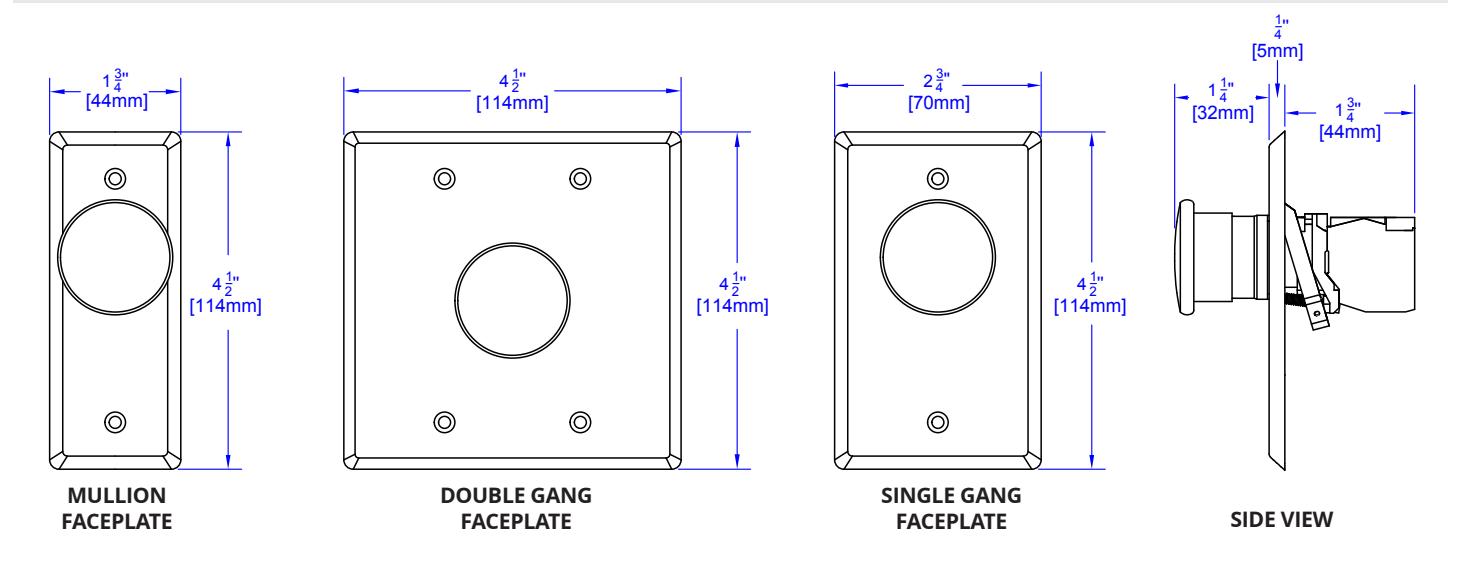

7. CM-400 SERIES FRONT AND SIDE VIEW

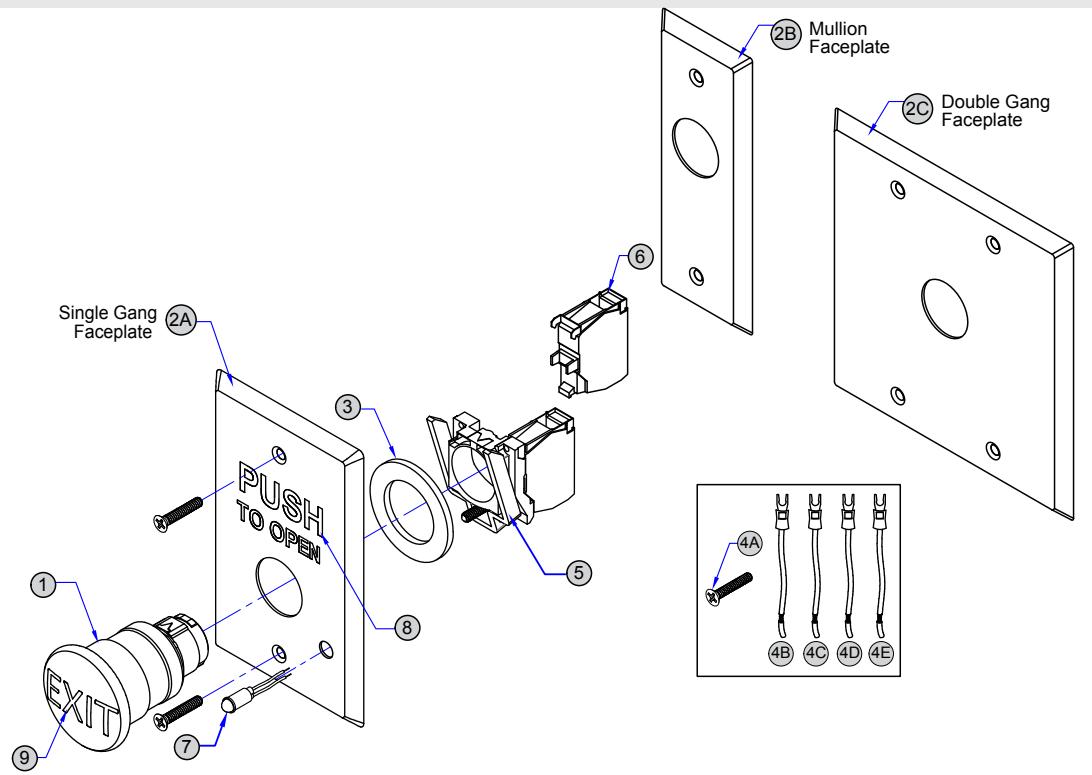

8. PARTS INFORMATION
| ORDERING INFORMATION FOR REPLACEMENT PARTS | ||||||
|---|---|---|---|---|---|---|
|
ITEM
NUMBER |
PART NUMBER | DESCRIPTION | ||||
| 60-66C000 | RED MOMENTARY MUSHROOM BUTTON (DIA. 1 5/8'') | |||||
| 60-66A005 | BLUE MOMENTARY MUSHROOM BUTTON (DIA. 1 5/8'') | |||||
| 1 | 60-66E006 | GREEN MOMENTARY MUSHROOM BUTTON (DIA. 1 5/8'') | ||||
| 60-66C002 | RED MAINTAINED MUSHROOM BUTTON (DIA. 1 5/8'') | |||||
| A | 60-49H009 | STAINLESS STEEL SINGLE GANG FACE PLATE 4 1/2''H X 2 3/4''W X 1 3/4''D (114MM X 70MM X 44MM) | ||||
| 2 | B | 60-49B040 | STAINLESS STEEL MULLION FACE PLATE 4 1/2''H X 1 3/4''W X 1 3/4''D (114MM X 44MM X 44MM) | |||
|
C
60-49C058 |
STAINLESS STEEL DOUBLE GANG FACE PLATE 4 1/2''H X 4 1/2''W X 1 3/4''D (114MM X 114MM X 44MM) | |||||
| 3 | 60-53U001A01 | FLAT ZINC WASHER 0.938ID X 1.47OD X .100THK | ||||
| PARTS KIT | ||||||
|---|---|---|---|---|---|---|
|
ITEM
NUMBER |
PART NUMBER | DESCRIPTION | ||||
| FOR N-C & N-O CONTACTS |
(A) 6-32 X 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW
(B) 6'' ORANGE WIRE WITH INSULATED SPADE CONNECTOR |
|||||
| 60-34B024 |
(C) TWO (2) 6'' GREY WIRE WITH INSULATED SPADE CONNECTOR
(D) 6'' GREY WIRE WITH INSULATED SPADE CONNECTOR |
|||||
| FOR N-O CONTACT | (A) 6-32 X 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW | |||||
| 4 | 60-34B025 |
(B) 6'' BLUE WIRE WITH INSULATED SPADE CONNECTOR
(C) 6'' GREY WIRE WITH INSULATED SPADE CONNECTOR |
||||
| FOR N-C CONTACTS | (A) 6-32 X 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW | |||||
| 60-34B026 |
(B) 6'' ORANGE WIRE WITH INSULATED SPADE CONNECTOR
(C) 6'' BLUE WIRE WITH INSULATED SPADE CONNECTOR |
|||||
| MODEL NUMBERS | |||||
|---|---|---|---|---|---|
|
SINGLE
GANG |
MULLION |
DOUBLE
GANG |
DESCRIPTION | ||
| CM-400 | CM-400N | CM-400W | 1 | NORMALLY OPEN CONTACT BLOCK | |
| CM-410 | CM-410N | CM-410W | 1 | NORMALLY CLOSED CONTACT BLOCK | |
| CM-420 | CM-420N | CM-420W | 1 | NORMALLY OPEN & NORMALLY CLOSED CONTACT BLOCK | |
| ADDITIONAL MUSHROOM PUSH BUTTON OPTIONS | |||||
| CI | M-420PTE |
UL 294
Compliant |
1 |
SINGLE GANG FACE PLATE. NORMALLY OPEN & NORMALLY CLOSED CONTACT
BLOCK, WITH "PUSH TO EXIT" ENGRAVED ON BUTTON |
|
| CM-450R | 1 |
SINGLE GANG FACE PLATE. NORMALLY OPEN & NORMALLY CLOSED CONTACT
BLOCK. MAINTAINED, PUSH/PULL MUSHROOM BUTTON |
|||
| INDIVIDUAL CONTACT OPTIONS | ||||
|---|---|---|---|---|
| ITEM NUMBER QTY DESCRIPTION | ||||
| 60-66C000 | 1 | NORMALLY OPEN CONTACT BLOCK | ||
| 6 | 60-66C001 | 1 | NORMALLY CLOSED CONTACT BLOCK | |
| 60-66C002 | 1 | NORMALLY OPEN AND NORMALLY CLOSED CONTACT BLOCK | ||
| SINGL | E LED OPTIO | NS | DOUBLE LED OPTIONS | |||||
|---|---|---|---|---|---|---|---|---|
|
ITEM
NUMBER |
MODEL
NUMBER |
QTY |
PART
NUMBER |
DESCRIPTION |
MODEL
NUMBER |
QTY | PART NUMBER | DESCRIPTION |
| CM-xxxx-7012 | 1 | 60-73C008 | RED 12V LED | CM-xxxx-70122 | 2 | 60-73C008 | RED 12V LED | |
| CM-xxxx-7024 | 1 | 60-73C010 | RED 24V LED | CM-xxxx-70242 | 2 | 60-73C010 | RED 24V LED | |
| CM-xxxx-7112 | 1 | 60-73C009 | GREEN 12V LED | CM-xxxx-71122 | 2 | 60-73C009 | GREEN 12V LED | |
| CM-xxxx-7124 | 1 | 60-73C011 | GREEN 24V LED | CM-xxxx-71242 | 2 | 60-73C011 | GREEN 24V LED | |
| CM-xxxx-7212 | 1 | 60-73C009 | GREEN 12V LED | - CM-xxxx-72122 | 2 | 60-73C009 | GREEN 12V LED | |
| CIVI-XXXX-7212 | 1 | 60-73C008 | RED 12V LED | 2 | 60-73C008 | RED 12V LED | ||
| 7. | OM 7004 | 1 | 60-73C011 | GREEN 24V LED | 014 70040 | 2 | 60-73C011 | GREEN 24V LED |
| CM-xxxx-7224 | 1 | 60-73C010 | RED 24V LED | CM-xxxx-72242 | 2 | 60-73C010 | RED 24V LED | |
| CM-xxxx-7412 | 1 | 60-73C014 | AMBER 12V LED | CM-xxxx-74122 | 2 | 60-73C014 | AMBER 12V LED | |
| CM-xxxx-7424 | 1 | 60-73C012 | AMBER 24V LED | CM-xxxx-74242 | 2 | 60-73C012 | AMBER 24V LED | |
| CM-xxxx-7612 | CM-xxxx-7612 1 60-66B001-12 BI-COLOR 12V (3 WIRE) LED CM-x | CM-xxxx-76122 | 2 | 60-66B001-12 |
BI-COLOR 12V
(3 WIRE) LED |
|||
| CM-xxxx-7624 | 1 | 60-66B001-24 | BI-COLOR 24V (3 WIRE) LED | CM-xxx-76242 | 2 | 60-66B001-24 |
BI-COLOR 24V
(3 WIRE) LED |
|
INSTALLATION INSTRUCTIONS
| FACE PLATE ENGRAVED (IN BLACK) OPTIONS | |||||
|---|---|---|---|---|---|
|
ITEM
NUMBER |
MODEL NUMBER | ENGRAVED GRAPHIC DESCRIPTION | |||
| CM-xxx/3 | PUSH TO OPEN | ||||
| CM-xxx/3F | POUSSEZ POUR OUVRIR | ||||
| CM-xxx/3S | EMPUJE PARA ABRIR | ||||
| CM-xxx/7 | PUSH TO EXIT | ||||
| CM-xxx/7F | POUSSEZ POUR SORTIR | ||||
| 8 | CM-xxx/8 | PUSH TO LOCK | |||
| CM-xxx/8F | POUSSEZ POUR VERROUILLER | ||||
| CM-xxx/8FE | POUSSEZ POUR VERROUILLER / PUSH TO LOCK | ||||
| CM-xxx/12 | PRESS FOR EMERGENCY ASSISTANCE | ||||
| CM-xxx/12F | APPUYER POUR AIDE D'URGENCE | ||||
| CM-xxx/12FE |
PRESS FOR EMERGENCY ASSISTANCE /
APPUYER POUR AIDE D'URGENCE |
||||
| BUTTON ENGRAVED (IN WHITE) OPTIONS | ||||
|---|---|---|---|---|
|
ITEM
NUMBER |
MODEL NUMBER | ENGRAVED GRAPHIC DESCRIPTION | ||
| CM-xxxE | EXIT | |||
| CM-xxxES | EXIT / SORTIE | |||
| CM-xxxS | SORTIE | |||
| 9 | CM-xxxESA | EXIT / SALIDA | ||
| CM-xxxH | WHEELCHAIR LOGO | |||
| CM-xxxSA | SALIDA | |||
| COMPATIBLE MOUNTING BOXES OPTION | ||||
|---|---|---|---|---|
| ITEM | PART NUMBER | |||
| NUMBER | SINGLE GANG | DESCRIPTION | ||
| 10 | CM-34AL |
SURFACE MOUNT BOX WITH STANDARD DEPTH AND THREADED CONDUIT ENTRY. HEAVY DUTY CAST
ALUMINUM 2-3/4"H X 4-1/2"W X 1-3/4"D [1 70MM X 44MM X 47MM] |
||
| CM-66 |
FLUSH BOX & DRESS PLATE, STANDARD DEPTH BOX WITH 7'' X 7'' DRESS PLATE
HEAVY GAUGE STAINLESS STEEL |
|||
| CM-31 |
SLEEVE COVER FOR STANDARD 2 3/4" X 4 1/4" (69MM X 110MM) SURFACE ELECTRICAL BOX.
HEAVY GAUGE STAINLESS STEEL |
|||
| CM-CPC1 | VANDAL AND WEATHER RESISTANT CLEAR LIFT COVER | |||
| CM-34BL |
SINGLE GANG BLACK ABS BOX, SURFACE MOUNT,
4 5/8"H X 2 7/8" W X 1 3/4"D (117MM X 73MM X 44MM) |
|||
| MULLION FACEPLATE | ||||
| CM-23D |
SURFACE BOX WITH EXTRA DEPTH, FLAME AND IMPACT RESISTANT BLACK POLYMER (ABS)
4 1/2"H X 1 3/4" W X 1 1/2"D (117MM X 46MM X 43MM) |
|||
