Door Activation Devices
CM-3000 Series Illuminated Switches
INSTALLATION INSTRUCTIONS
THIS PACKAGE INCLUDES:
- (1) 1 5/8" (40 mm) diameter illuminated mushroom button
- (2) 1/4" (6.4 mm) thick brushed aluminum faceplate
- (1) Normally open and/or Normally closed contact block
- (1) Red, or green 12V LED
- (1) Parts kit
CM-3000
1. GENERAL DESCRIPTION
Camden Door Controls CM-3000 Series Exit Switches are heavy duty push-buttons designed for industrial and commercial applications, where illumination is required. Buttons are 1 5/8" (40mm) in diameter, and are available in red or green (other colors on request). The faceplate is 1/4" thick brushed aluminum, in 1 3/4" or 2 3/4" widths. Optional duranodic (US40) finish is also available.
CM-3000 Series switches utilize UL listed switch components. Finished models comply with UL61058 Standard for Switches. Rated 10 amps @ 30 VDC, either momentary or maintained operation.
2. SPECIFICATIONS
| Voltage | 12V or 24V Dc | |
|---|---|---|
| Contact Rating | 6A @ 30V Dc | |
| Switch Type | Momentary or Maintained | |
| Standard Finish | Brushed Aluminum | |
| Dimensions |
CM-3000:
4 1/2" H x 2 3/4" W x 1 3/4" D (114 mm x 70 mm x 44 mm) |
|
|
CM-3100:
4 1/2" H x 1 3/4" W x 1 3/4" D- (114 mm x 44 mm x 44 mm) |
||
3. APPLICATION
Camden illuminated Exit Switches are ideal for high traffic areas such as building front entrances and exits, as well as institutions, such as hospitals where an illuminated button is required. They can be surface, flush, or mullion (narrow stile) mounted.
Camden Illuminated Exit switches are designed to control electric locks, electro-magnetic locks, electric strikes, automatic doors, and handicap operators. They may also be used for automatic doors, shunting, bypassing alarms, request-to-exit, timed functions, and many other applications.
4. INSTALLATION

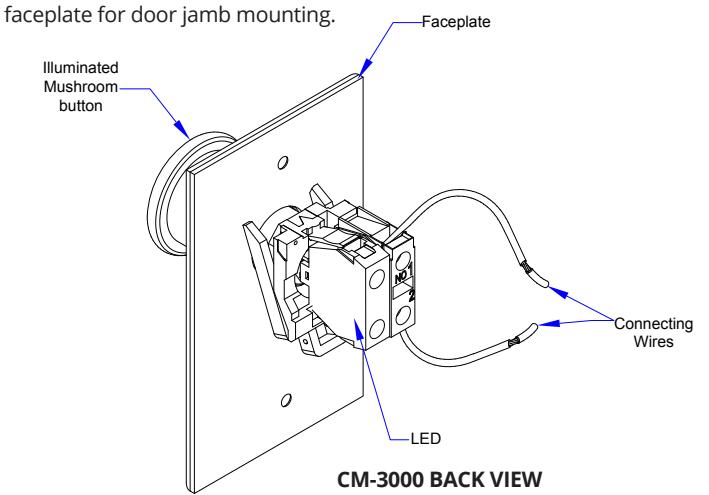

CM-3000, CM-3010, CM-3020, CM-3030, CM-3040 and CM-3050 are supplied with a brushed aluminum faceplate that can be easily mounted to a single gang electrical box. CM-3100, CM-3110, CM-3120, CM-3130, CM-3140 and CM-3150 are supplied with 1-3/4" brushed aluminum
5. WIRING
Momentary: When the switch is pressed the current pole will change to the opposite state until released.
Maintained: When the switch is pressed it will provide the opposite pole until the button is pressed again
| WIRING LAYOUT & COLOR CODING | ||||
|---|---|---|---|---|
| SWITCH TYPE | SPST N.O. | SPST N.C. | ||
| COMMON | BLACK | BLACK | ||
| NORMALLY OPEN | BLACK | |||
| NORMALLY CLOSED | BLACK | |||
6. LED WIRING
For 12 VDC power connections, please connect your LED power leads directly to the center wiring terminals (X1 and X2) as shown Below.
For 24 VDC power connections, please use the supplied resistor in-line wth one of the two center wiring terminals (X1 or X2) a shown Below.

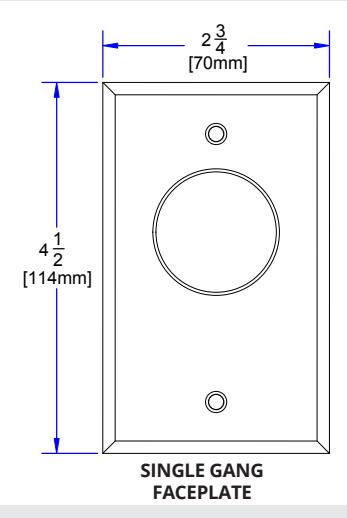

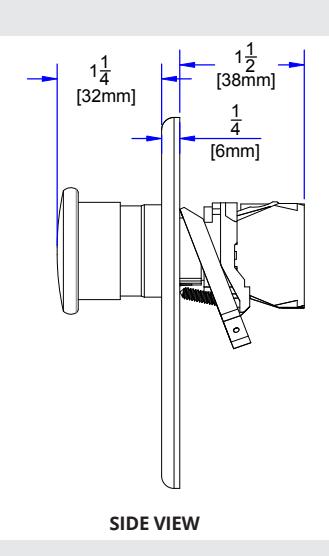

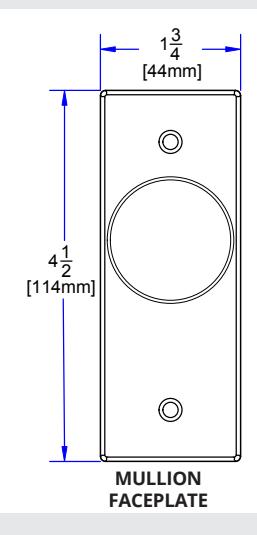

7. CM-3000 SERIES FRONT AND SIDE VIEW

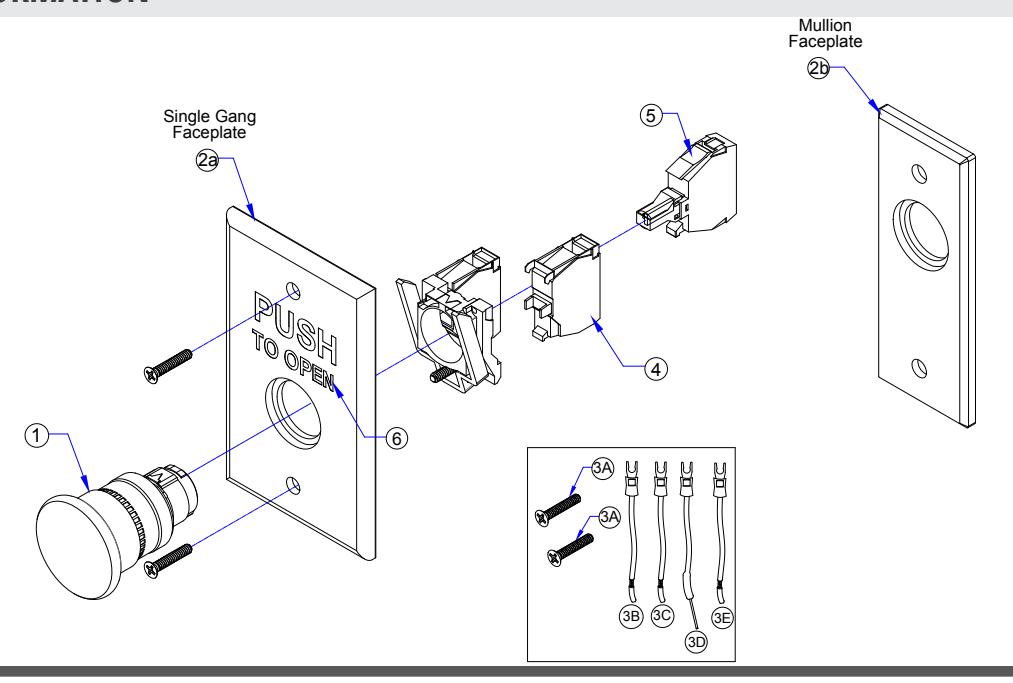

8. PARTS INFORMATION
| MODEL NUMBERS | |||
|---|---|---|---|
| MODEL NUMBER | DESCRIPTION | ||
|
SINGLE
GANG |
MULLION | QTY | |
| CM-3000 | CM-3100 | 1 | SPRING RETURN BUTTON, MOMENTARY, NORMALLY OPEN CONTACT BLOCK |
| CM-3010 | CM-3110 | 1 | SPRING RETURN BUTTON, MOMENTARY, NORMALLY CLOSED CONTACT BLOCK |
| CM-3020 | CM-3120 |
SPRING RETURN BUTTON, MOMENTARY, NORMALLY OPEN & NORMALLY CLOSED
1 CONTACT BLOCK |
|
| CM-3030 | CM-3130 | 1 | PUSH/PULL BUTTON, MAINTAINED, NORMALLY OPEN CONTACT BLOCK |
| CM-3040 | CM-3140 | 1 | PUSH/PULL BUTTON, MAINTAINED, NORMALLY CLOSED CONTACT BLOCK |
| CM-3050 | CM-3150 | 1 |
PUSH/PULL BUTTON, MAINTAINED, NORMALLY OPEN & NORMALLY CLOSED CONTACT
BLOCK |
| ORDERING INFORMATION FOR REPLACEMENT PARTS | |||
|---|---|---|---|
|
ITEM
NUMBER |
PART NUMBER | DESCRIPTION | |
| 60-66E000 | ILLUMINATED RED MOMENTARY MUSHROOM BUTTON (DIA. 1 5/8'') | ||
| 60-66E004 | LLUMINATED GREEN MOMENTARY MUSHROOM BUTTON (DIA. 1 5/8'') | ||
| 1 | 60-66E001 | ILLUMINATED RED MAINTAINED MUSHROOM BUTTON (DIA. 1 5/8'') | |
| 60-66E003 | ILLUMINATED GREEN MAINTAINED MUSHROOM BUTTON (DIA. 1 5/8'') | ||
| A | 60-41A003 | ALUMINUM SINGLE GANG FACE PLATE 4 1/2''H X 2 3/4''W X 1/4''D (114MM X 70MM X 6MM) | |
| 2 | B | 60-41A004 | ALUMINUM MULLION FACE PLATE 4 1/2''H X 1 3/4''W X 1/4''D (114MM X 44MM X 6MM) |
| PARTS KIT | ||||
|---|---|---|---|---|
|
ITEM
NUMBER |
PART NUMBER
DESCRIPTION |
|||
| FOR N-C CONTACT | (A) 6-32 X 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW | |||
| 60-34B026 |
(B) 6'' ORANGE WIRE WITH INSULATED SPADE CONNECTOR
(C) 6'' GREY WIRE WITH INSULATED SPADE CONNECTOR (D) BLACK WIRE 6'' CRIMP ON END WITH 2.2K OHM 1/4 WATTS |
|||
| FOR N-O CONTACT | (A) 6-32 X 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW | |||
| 3 | 60-34B025 |
(B) 6'' BLUE WIRE WITH INSULATED SPADE CONNECTOR
(C) 6'' GREY WIRE WITH INSULATED SPADE CONNECTOR (D) BLACK WIRE 6'' CRIMP ON END WITH 2.2K OHM 1/4 WATTS |
||
| FOR N-O & N-C CONTACTS | (A) 6-32 X 3/4 FLAT HEAD PHILLIPS ZINC PLATED SCREW | |||
| 60-34B024 |
(B) 6'' ORANGE WIRE WITH INSULATED SPADE CONNECTOR
(C) 6'' GREY WIRE WITH INSULATED SPADE CONNECTOR (D) BLACK WIRE 6'' CRIMP ON END WITH 2.2K OHM 1/4 WATTS (E) 6'' BLUE WIRE WITH INSULATED SPADE CONNECTOR |
|||
| INDIVIDUAL CONTACT OPTIONS | |||
|---|---|---|---|
|
ITEM
PART NUMBER QTY DESCRIPTION NUMBER |
|||
| 60-66C000 | 1 | NORMALLY OPEN CONTACT BLOCK | |
| 4 | 60-66C001 | 1 | NORMALLY CLOSED CONTACT BLOCK |
| 60-66C002 | 1 | NORMALLY OPEN AND NORMALLY CLOSED CONTACT BLOCK | |
| LED'S | ||||
|---|---|---|---|---|
|
ITEM
NUMBER |
PART
NUMBER |
DESCRIPTION | ||
| 60-66B004 | RED 12V LED | |||
| 5 | 60-66B005 | GREEN 12V LED | ||
| FACE PLATE ENGRAVED (IN BLACK) OPTIONS | ||||
|---|---|---|---|---|
|
ITEM
NUMBER |
ADD SUFFIX TO MODEL NUMBER | ENGRAVED GRAPHIC DESCRIPTION | ||
| CM-XXX/2 | WHEELCHAIR SYMBOL | |||
| CM-XXX/3 | PUSH TO OPEN | |||
| CM-XXX/3F | POUSSEZ POUR OUVRIR | |||
| CM-XXX/3S | EMPUJE PARA ABRIR | |||
| 6 | CM-XXX/4 |
WHEELCHAIR SYMBOL
PUSH TO OPEN |
||
| CM-XXX/7 | PUSH TO EXIT | |||
| CM-XXX/7F | POUSSEZ POUR SORTIR | |||
| CM-XXX/8 | PUSH TO LOCK | |||
| CM-XXX/E | EXIT | |||
| COMPATIBLE MOUNTING BOXES | ||||
|---|---|---|---|---|
| PART NUMBER | ||||
| CM-3000 SERIES | DESCRIPTION | |||
| CM-34AL |
SURFACE MOUNT BOX WITH STANDARD DEPTH AND THREADED CONDUIT ENTRY.
HEAVY DUTY CAST ALUMINUM 2-3/4"H X 4-1/2"W X 1-3/4"D [70MM X 144MM X 44MM] |
|||
| CM-66 |
FLUSH BOX & DRESS PLATE, STANDARD DEPTH BOX WITH 7'' X 7'' DRESS PLATE
HEAVY GAUGE STAINLESS STEEL |
|||
| CM-31 |
SLEEVE COVER FOR STANDARD 2 3/4" X 4 1/4" (69MM X 108MM) SURFACE ELECTRICAL BOX.
HEAVY GAUGE STAINLESS STEEL |
|||
| CM-CPC1 | VANDAL AND WEATHER RESISTANT CLEAR LIFT COVER | |||
| CM-34BL |
SINGLE GANG BLACK ABS BOX, SURFACE MOUNT
4 5/8"H X 2 7/8" W X 1 3/4"D (117MM X 73MM X 44MM) |
|||
| CM-34D |
SURFACE MOUNT BOX WITH EXTRA DEEP. HEAVY DUTY GREY POLYMER
4 1/2''H X 2 3/4''W X 1 3/4''D [114MM X 70MM X 44MM] |
|||
| CM-3100 SERIES | ||||
| CM-23D |
SURFACE BOX WITH EXTRA DEPTH, FLAME AND IMPACT RESISTANT BLACK POLYMER (ABS)
4 1/2"H X 1 3/4" W X 1 1/2"D [114MM X 44MM X 38MM] |
|||
