CM-3000/3100 SERIES

MUSHROOM LED ILLUMINATED EXIT SWITCHES

CM-3000

FEATURES

• HIGH VISIBILITY LED OPERATION
• RED OR GREEN ILLUMINATED BUTTONS
• MOUNTED ON HEAVY 1/4" THICK ALUMINUM PLATE
• SINGLE GANG OR 1 3/4" WIDTH
• 12V OR 24V DC OPERATION
• INDOOR /OUTDOOR APPLICATIONS
• DOOR FRAME, WALL , OR PEDESTAL MOUNTING
• LARGE ENGRAVED SYMBOLS OR WORDS

• SPRING RETURN OR PUSH/PULL OPERATION
• STACKABLE CONTACTS CAN CONTROL 6 DISTINCT FUNCTIONS
• UL/CSA APPROVED SWITCHES, RATED 6 AMPS@ 30V DC
• COLOR CODED 18 AWG SPADE CONNECTIONS
• BRUSHED ALUMINUM FINISH
• CUSTOM ENGRAVING AND FINISHES AVAILABLE

DESCRIPTION

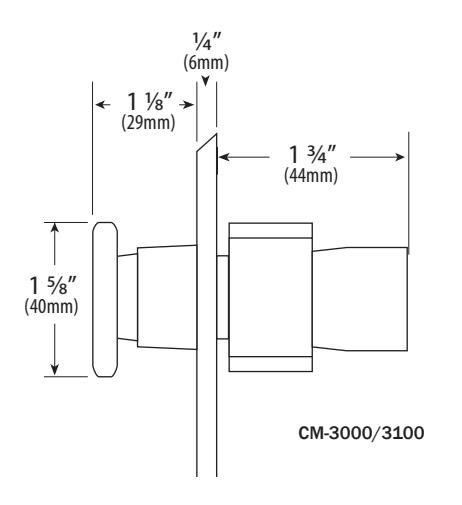

Camden Door Controls CM-3000/3100 Series Exit Switches are heavy duty pushbuttons designed for industrial and commercial applications, where illumination is required. Buttons are 1 5/8" (40mm) in diameter, and are available in red or green (other colors on request) The faceplate is 1/4" thick brushed aluminum, in 1 3/4" or 2 3/4" widths. Optional duranodic (US 40) finish is also available.

The switches are UL/CSA approved, rated 10 amps @ 30V DC, either momentary or maintained operation.

APPLICATION

Camden illuminated Exit Switches are ideal for high traffic areas such as building front entrances and exits, as well as institutions such as hospitals where an illuminated button is required. They can be surface, flush, or mullion (narrow stile) mounted.

Camden Illuminated Exit switches are designed to control electric locks, electromagnetic locks, electric strikes, automatic doors, and handicap operators. They may also be used for automatic doors, shunting, bypassing alarms, request to exit, timed functions, and many other applications.

ARCHITECTS /ENGINEERS SPECIFICATIONS

The illuminated exit switches to be used throughout the site/complex shall be Camden Door Controls CM-3000/3100 series Illuminated Exit Switches.

The button shall be 1 5/8" in diameter, and designed to be easy to activate. The faceplate shall be constructed of 1/4" thick aluminum, and shall be supplied with stainless steel Torx or snake eye security screws. All symbols, letters and/or markings shall be permanently engraved into the mushroom shape button.

Rating for all electrical contacts shall be a minimum of 6 amps @ 30 VDC. The switch used shall be a UL/CSA approved type, supplied with color coded leads and operate on 12V or 24V.

ORDERING INFORMATION

All CM-3000 Illuminated Exit Switches come with a 1 5/8" (40 mm) mushroom button (red or green), LED bulb, brushed aluminum faceplate, 2 socket/slotted screws, and 2 tamperproof screws.

MODEL	DESCRIPTION

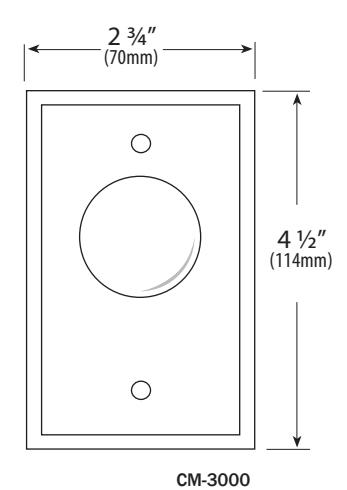

SINGLE GANG FACEPLATE 2 3/4"
CM-3000	SPRING RETURN, N/O, SPST MOMENTARY
CM-3010	SPRING RETURN, N/C, SPST MOMENTARY
CM-3020	SPRING RETURN, N/O AND N/C, DPST MOMENTARY
CM-3030	PUSH/PULL, N/O, SPST MAINTAINED
CM-3040	PUSH/PULL, N/C, SPST MAINTAINED
CM-3050	PUSH/PULL, N/O AND N/C, DPST MAINTAINED

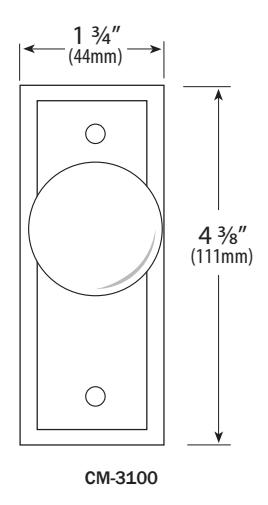

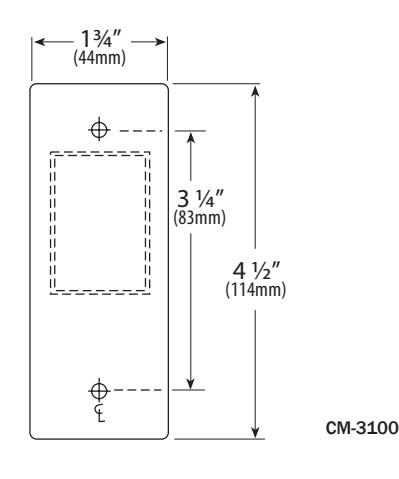

NARROW FACEPLATE 1 3/4"
CM-3100	SPRING RETURN, N / O SPST MOMENTARY
CM-3110	SPRING RETURN, N / C, SPST MOMENTARY
CM-3120	SPRING RETURN, N / O AND N / C, DPST MOMENTARY
CM-3130	PUSH/PULL, N / O, SPST MAINTAINED
CM-3140	PUSH/PULL, N /C, SPST MAINTAINED
CM-3150	PUSH/PULL, N /O AND N /C, DPST MAINTAINED

FOR FACEPLATE GRAPHICS, ADD:

(ADD SUFFIX TO ANY 'BLANK' MODEL)

• /2 WHEELCHAIR LOGO
• /3 'PUSH TO OPEN'
• /3F 'POUSSEZ POUR OUVRIR'
• /3S 'EMPUJE PARA ABRIR'
• /4 WHEELCHAIR LOGO AND
  • 'PUSH TO OPEN'
• /7 'PUSH EXIT' /7F 'POUSSEZ POUR SORTIR'
• /8 'PUSH TO LOCK'
• /E 'EXIT'

FOR BUTTON COLOR, ADD:

(ADD SUFFIX TO ANY MODEL. IF NOT SELECTED, RED WILL BE SUPPLIED)

• 'R' RED BUTTON
• 'G' GREEN BUTTON

FOR FACEPLATE FINISHES, ADD:

'BZ' DARK BRONZE FINISH (BHMA 710, 313AN)
