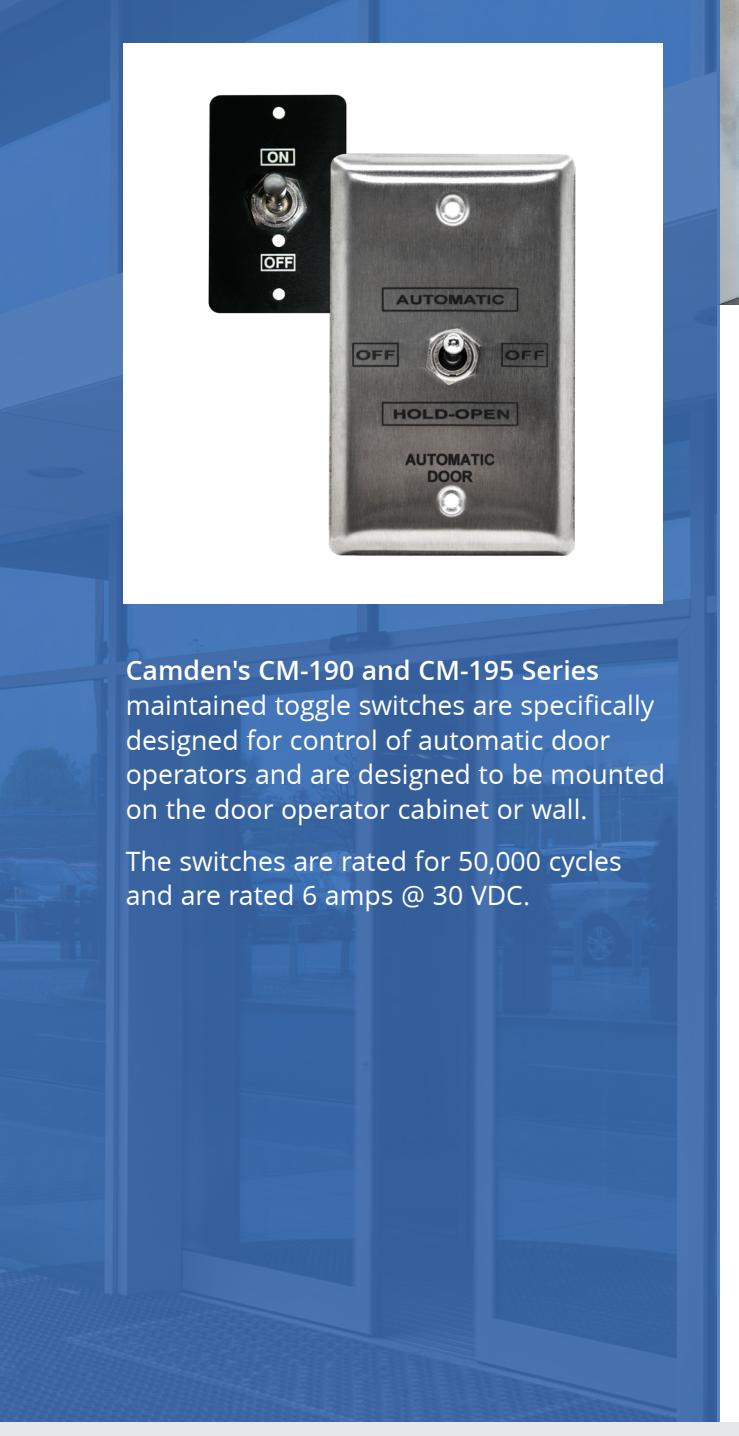

View PDFCM-190 / 195 Series Automatic Door Toggle Switches
Features

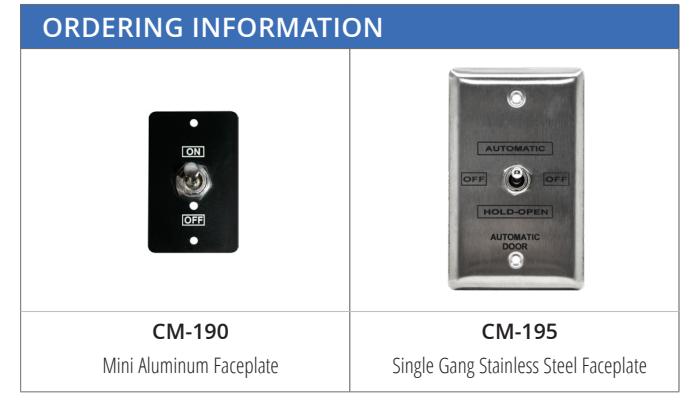

- • 2 Sizes, Mini and Single Gang

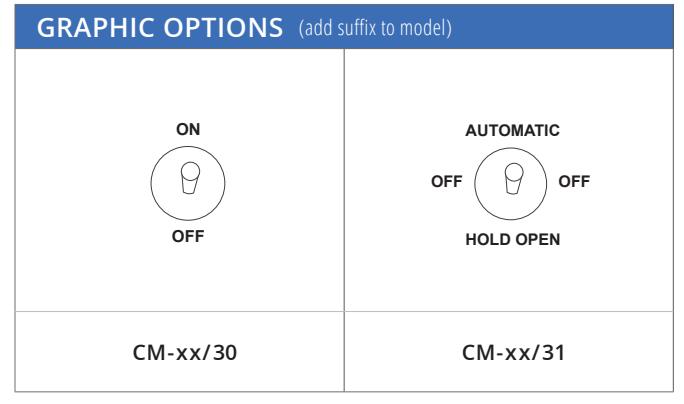

- • Two or Three Position Switches
- • Heavy Duty 6A Contacts
- • Compatible with all Automatic Door Operators
- • 3 Year Warranty
SPECIFICATIONS
INPUT VOLTAGE: 12/24 VDC CONTACT RATING: 6 A @ 30 VDC SWITCH LIFE: 50,000 Cycles
TEMPERATURE RANGE: 4°F to 185°F (-20°C to 85°C)

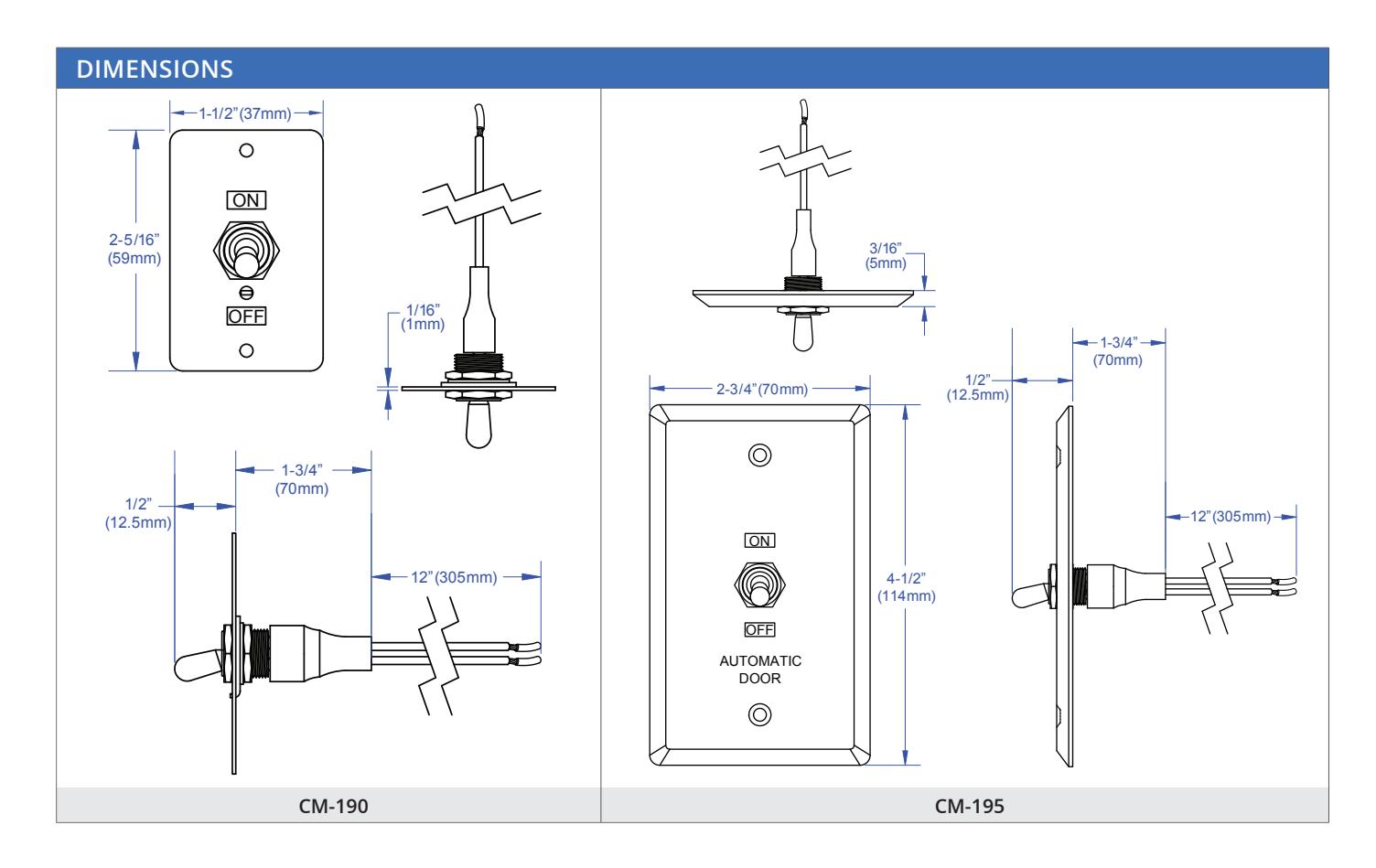

DIMENSIONS: CM-190
1-1/2" W x 2-5/16" H x 1-3/4" D (38mm x 59mm x 44mm)
CM-195
2-3/4" W x 4-1/2" H x 1-3/4" D (51mm x 114mm x 44mm)
