CL 180-LE Series

• • universal input voltage: 11-30 vac/dc w/ auto detection technology; no need to flip ^a switch
• grade 1 ul listed clutching lock
• rex built in at no extra cost
• 3 year warranty flexible & durable built to last in the usa

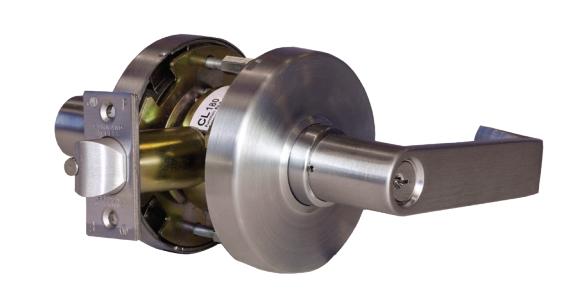

The Command Access CL180 LE series is a low-energy, cost effective cylindrical lock that is ideal for any continuous duty application or condition requiring low surge and hold current. Its unique electronics allow the CL180LE to function much like a motor-driven lockset without the potental problems inherent in motors. The CL180LE will operate with an input voltage between 11-30 volts, eliminating the need to inventory 12 and 24V models. The CL180LE features a standard Built-in Request to exit (REX/AE) switch.

SPECIFICATIONS

Voltage:

• Operating Voltage - 11-30 VDC

• Surge Current: 400 mA @12V, 200 mA @ 24V

• Holding Current: 30 mA

Accessories:

• 2-3/8" backset available

Trims Available:

Finishes Available:

612, 613, 625, 626

Features:

• Specify Fail Safe (EL) or Fail Secure (EU) Low maximum current draw 400 mA (12V): use more locks on a single power supply. Additonal savings for the owner
  • Low holding current 30 mA : reliable operation and meets sustainable consideraton
  • Fail Safe (EL) & Fail Secure (EU) available; not field selectable
  • Multiple lever styles available
  • Available SFIC or LFIC (Schlage): Cylinder not included
  • Available with Schlage C type keyway standard

Models Available:

CL180LE-EL Outside lever locked (EL) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.

CL180LE-EU Outside lever unlocked (EU) electronically. Latchbolt retracted by key out-side or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress
