SCHREXKIT-CL

I N S T A L L A T I O N I N S T R U C T I O N S

Field Installable Rex switch for Schlage ND Cylindrical Lock. This switch is SPDT (single pull, double throw).

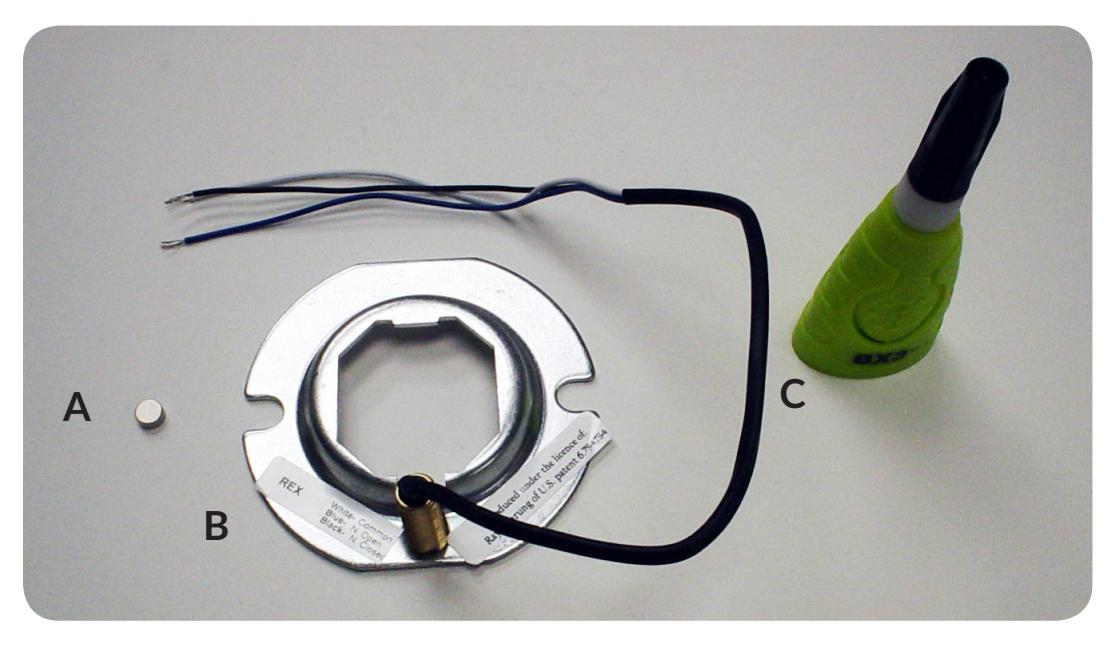

Ki t In c lu d es

T o o l s Req u ire d

• A. Magnet
• B. Anit-rotation plate w/REX switch
• C. Glue

• None

Specifications

Rating: 5A@ 24VAC/DC

Configuration: White - Common (C)

Blue - Normally Open (NO) Black - Normally Closed (NC)

• Remove lock from door and clean internal spring cage.

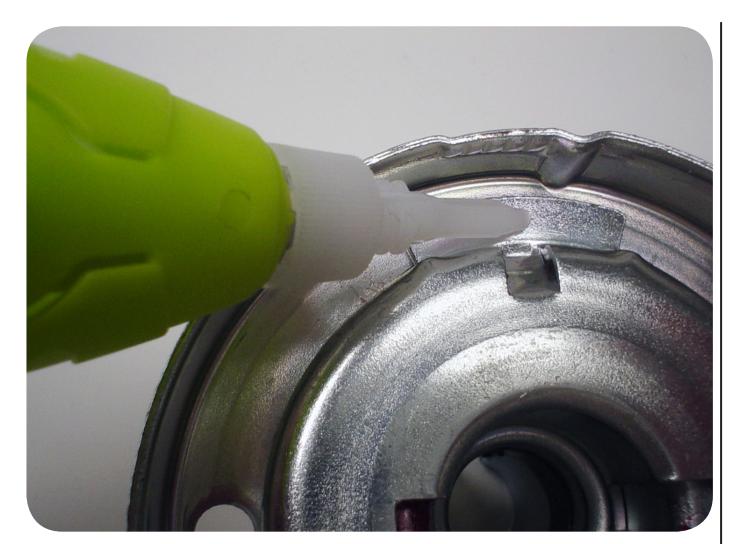

• Place a few drops of glue on center of tab.

• Assemble spring cage, Antirotation ring, and chassis together.

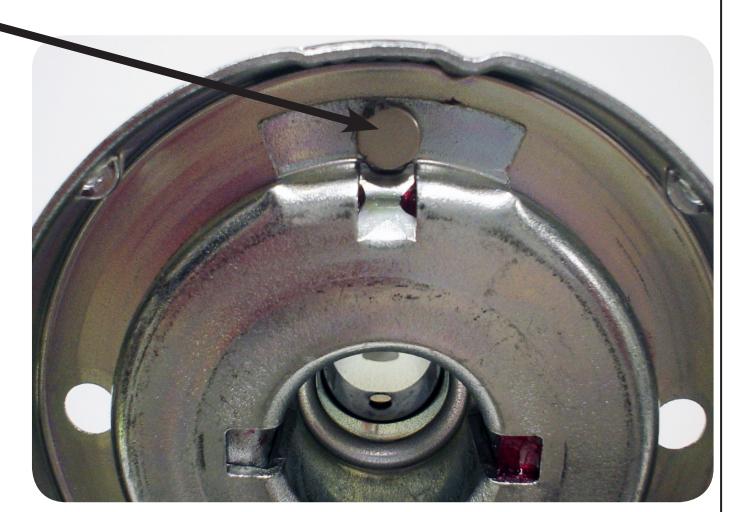

• Brass stem should be aligned just above the lock power wires.

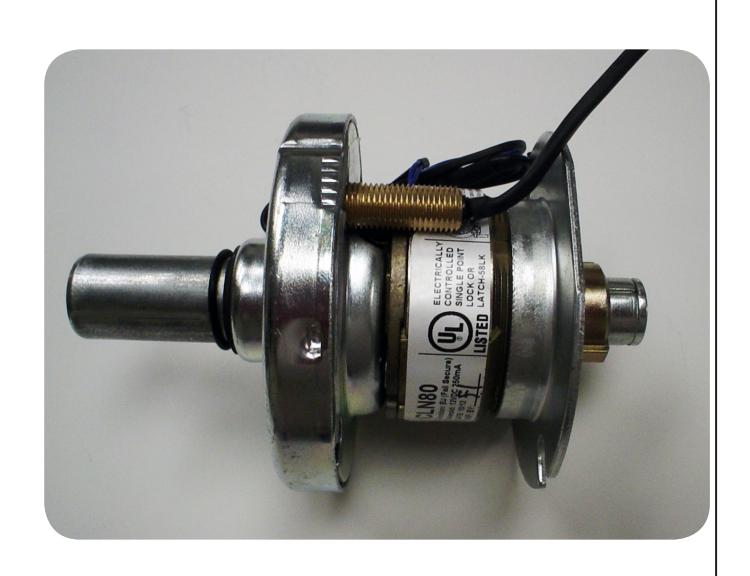

• Replace lock onto door and check for proper operation.
