HINGES & POWER TRANSFER

Command Access Concealed Door Loop (CDL) for 3/4" offset Pivots

• Offset Pivot Applications (3/4" only)
• Easy Installation
• Supports up to 105 degree swing
• 3-Year Warranty

Quality, selection & pricing second to none

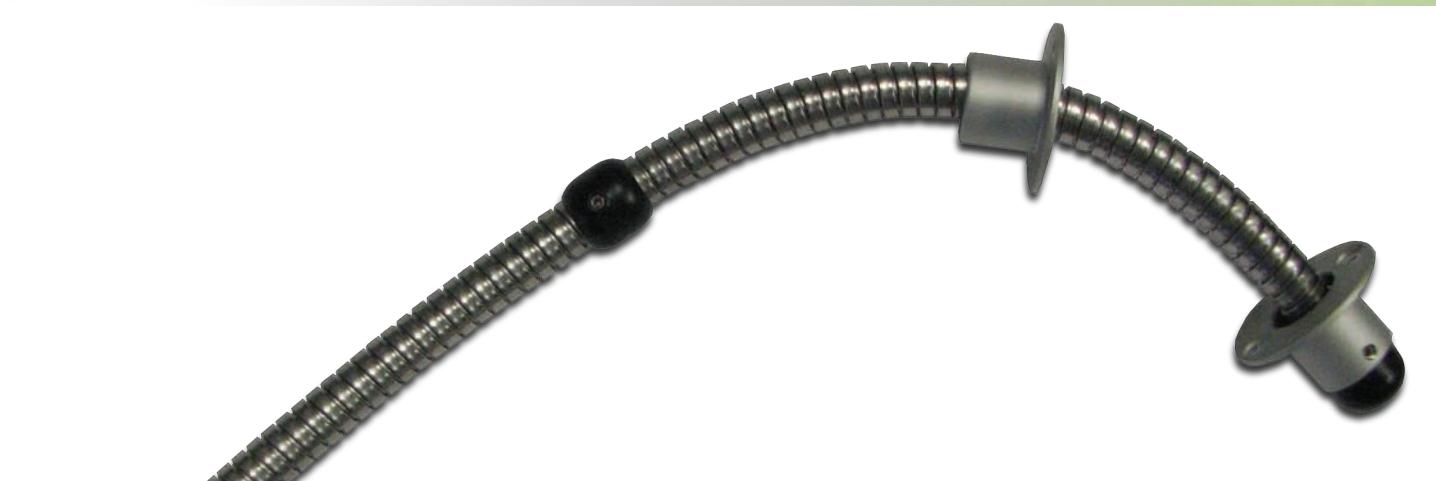

This patented Concealed Door Loop (CDL) is a low cost method of transferring low voltage power from the door frame to the locking device. Whereas typical door loops are surface mounted and remain constantly visible, the CDL slides into the frame completely concealing itself when the door is closed. Commonly used in storefront or main entrance applications with 3/4" offset pivots that swing up to 105°. The CDL's aesthetic appeal will benefit retrofits and new installations alike.

U.S. Customer Support 1-888-622-2377

Visit our website for more details www.CommandAccess.com

Canada Customer Support 1-855-823-3002

HINGES & POWER TRANSFER

Command Access Concealed Door Loop (CDL) for 3/4" offset Pivots

Features:

• Available in aluminum or black finishes
• Durable finish
• Easy Installation
• Variable mounting locations
• Special 1/4" flexible armored conduit
• Supports up to 105 degree swing

Configurations available for 3/4" offset Pivots:

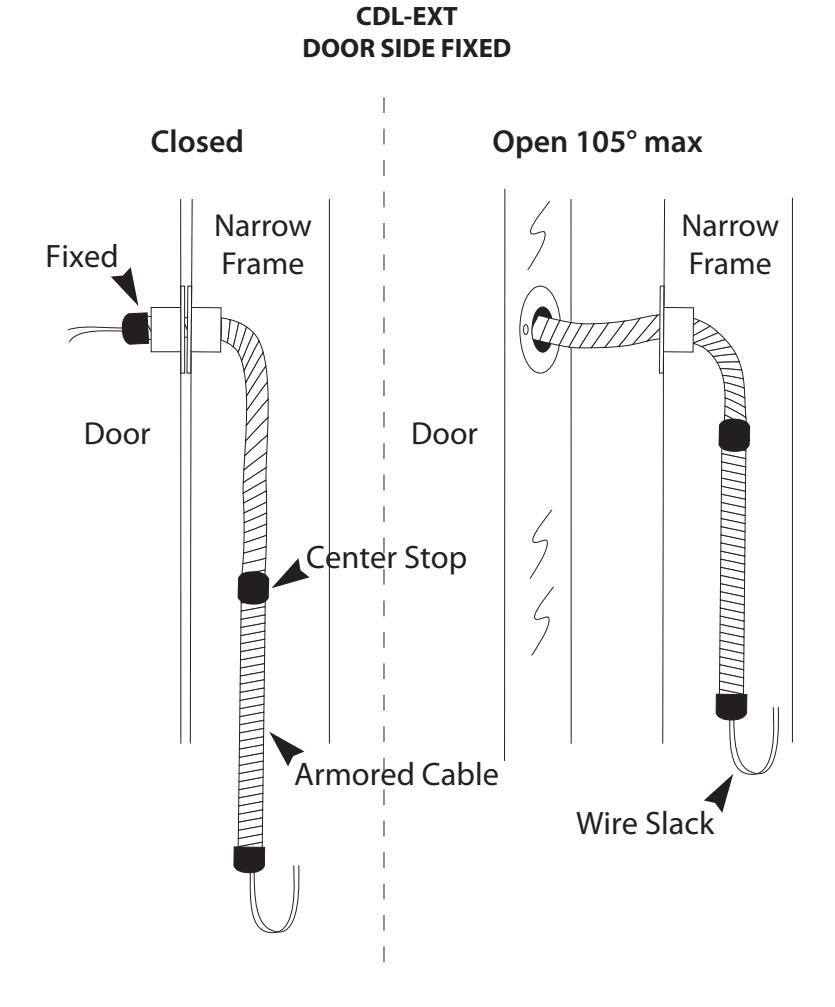

• CDL-AL-EXT 12" length with aluminum finished caps door side fixed, frame side extended for wire guidance
• CDL-BLK-EXT 12" length with black anodized finished caps door side fixed, frame side extended for wire guidance

Model No.	Notes:
Customer:	Job No./Name:	Date:	Provided by:
