• • Continuous Hinge Applications
• • Butt Hinge Applications
• • Easy Installation
• • Supports up to 180° Swing
• • 3-Year Warranty

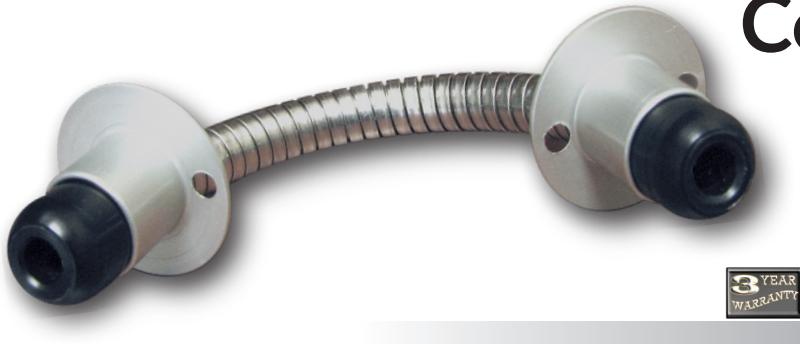

This patented Concealed Door Loop (CDL) is a low cost method of transferring low voltage power from the door frame to the locking device. Whereas typical door loops are surface mounted and remain constantly visible, the CDL slides into the door and/or frame completely concealing itself

when the door is closed. Designed for Continuous and Butt hinge applications that are either full mortise, half mortise or half surface and have a standard throw. Commonly installed where ETH hinges are cost prohibitive and surface door loops are not desired. The CDL's aesthetic appeal will benefit retrofits and new installations alike.

SPECIFICATIONS

Features:

• Available in aluminium or black finishes
• Durable finish
• Easy Installation
• Variable mounting locations
• Special 1/4" flexible armoured conduit
• Supports up to 180° swing

Product Details:

• Zip Lock Bag: 6" x 4": x .5"

• Weight: .5 Lbs

See it in action!

How to Order

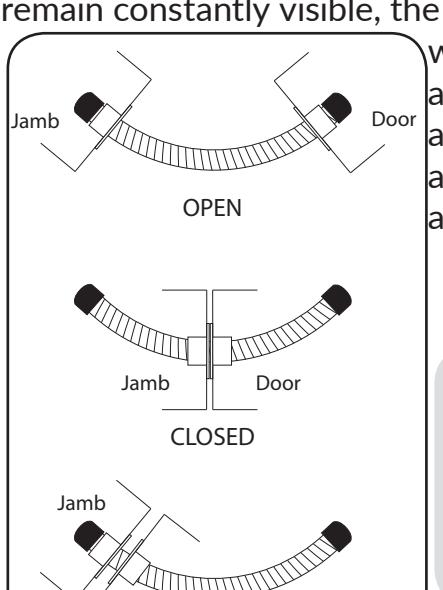

Door

CLOSED - ONE SIDE FIXED*

Part #	Easy Order #	Description
CDL-AL	70820	6" length with ALUM finish end caps
CDL-BLK	70823	6" length with BLACK finish end caps
CDL-AL-FX	70821	6" length with ALUM finish end caps, & 1 side fixed to create complete concealment in the opposing side.
CDL-BLK-FX	70824	6" length with BLACK finish end caps, & 1 side fixed to create complete concealment in the opposing side.

^* For narrow frame and door conditions see 3/4" pivot models (CDL-AL-EXT, CDL-BLK-EXT)

U.S. Customer Support

Visit our website for more details

Canada Customer Support

1-888-622-2377

www.CommandAccess.com

1-855-823-3002
