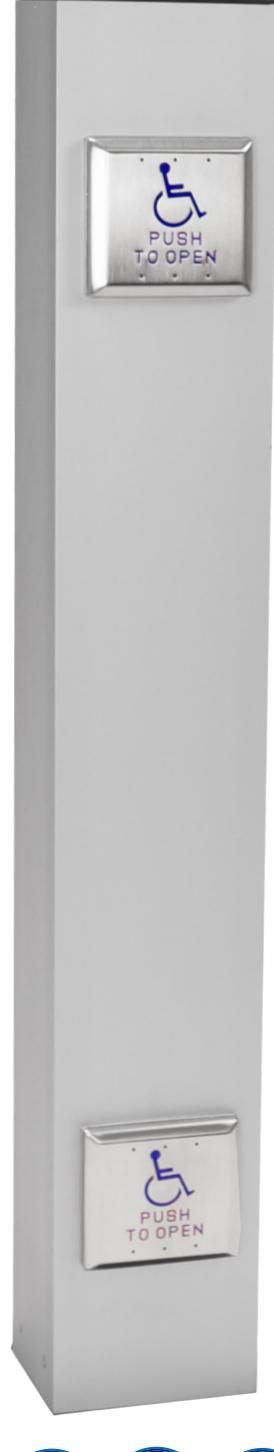

Dual Switch Bollard Post High-Low CBC compliant Bollard with Switch Plates Combo

Alternative to wall mounted access control or switches for entry doors. Bollard post provide visibility and meet accessibility guidelines. Practical solution for surface mount and California Building Code compliance.

FEATURES

  • CBC Section 11B 404.3 code compliant bollard and switch plates
  • Black HDPE mortised removable cap with secure transmitter mount (wireless transmitter optional and sold separate)
  • Two 4-1/2" ' & Push to Open' blue infill push plates, located at 7" and 36" centerline from floor
  • 6" square post with 1/8" walls
  • Surface mount (42")

MODEL

CBC482A4U 42" surface mount, 6" square post, with high and low 4-1/2" SPDT switch plates
