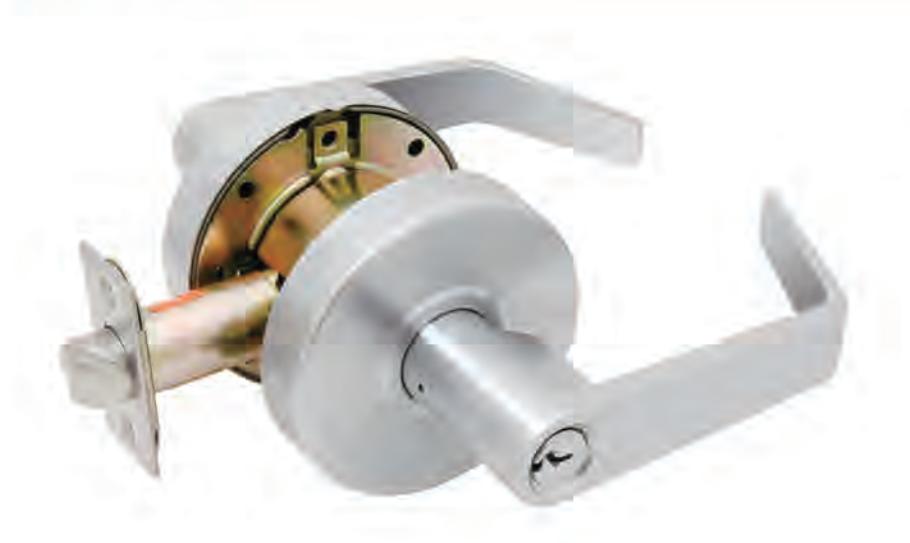

CB Series

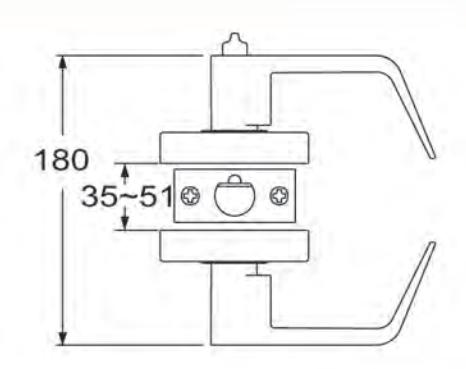

Backset 2-3/4" standard. 2-3/8", 3-3/4" and 5" optional

Cylinder 6 pin solid brass cylinder, Schlage "C" keyway

6 or 7 Pin Small Format IC Core available

Lockbody Non-Clutch

Rose Design Wrought brass or stainless steel, 3-3/8" in diameter

Available lever Sentinel, Gala, Quest

Available Finish 622(US19), 626(US26D) stock finish, other finishes upon request

Function ANSI F-75, 76, 82, 84, 86,109

ANSI/BHMA Comply with ANSI/BHMA A156.2-2003 Grade 2

UL UL 10C 3-hour rated

BAA Meets requirements of the Buy American Act

ADA Meets requirements of the Americans with Disabilities Act
